42L13G60X8A (96012007705) - Murray 42" Lawn Tractor, 13.5hp (2011) Seat Group (38L12G50X8Aseat) Parts Diagram

42" Lawn Tractor, 13.5hp

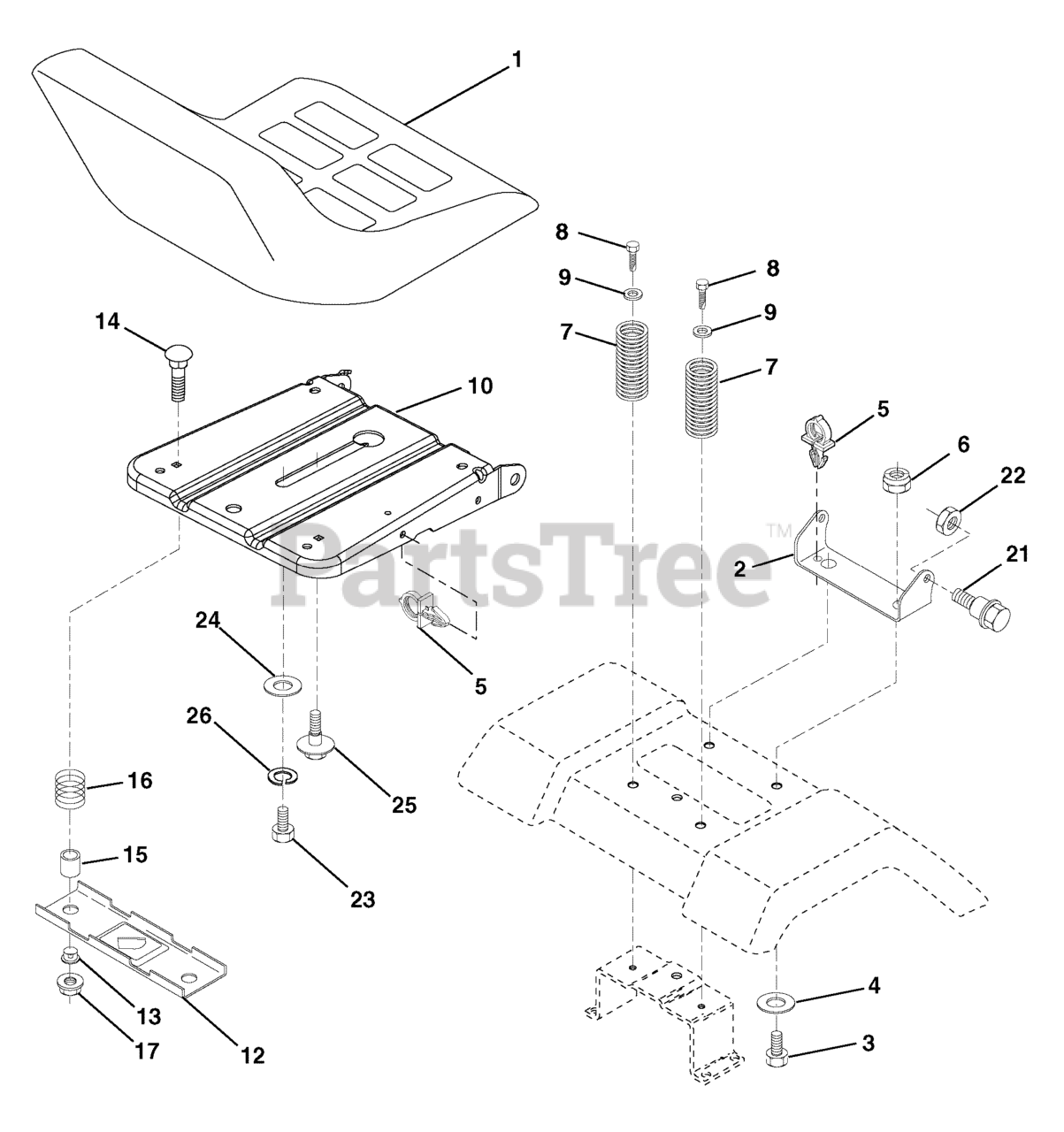

Seat Group (38L12G50X8Aseat) Parts Diagram

  • Title
1

$312.99

$

Usually ships in 2-12 days

0

2

Murray 709077

BRACKET, Seat Pivot

$6.49

$

Usually ships in 2-12 days

0

3

Murray 709413

BOLT, Hex 3/8 - 16 x 1

$4.49

$

Usually ships in 2-12 days

0

4

Murray 709231

WASHER, 13/32 x 1 x10 Ga.

$6.49

$

Usually ships in 2-12 days

0

5

Murray 709085

CLIP, Push-In Hinged

$4.49

$

Usually ships in 2-12 days

0

6

Murray 709433

NUT, Lock Hex w/Insert, 3/8-16

$4.49

$

Usually ships in 2-12 days

0

7

Murray 709040

SPRING, Seat Compression 2 250 Black Zinc

$7.99

$

Usually ships in 2-12 days

0

8

Murray 709149

SCREW, 3/8-16 x 1.5

$9.99

$

Usually ships in 2-12 days

0

9

Murray 709232

WASHER, 13/32 x 1 x 14 Ga.

$10.99

$

Usually ships in 2-12 days

0

10

Murray 709280

PAN, Assembly Seat

$37.99

$

Usually ships in 2-12 days

0

12

Murray 709161

BRACKET, Mounting Switch

$11.99

$

Usually ships in 2-12 days

0

13

Murray 709027

BUSHING, Snap Black Nylon

$6.49

$

Usually ships in 2-12 days

0

14

Murray 709415

BOLT, Round Head Sht Nk 1/4 - 20 x 1 -1/2

$4.99

$

Usually ships in 2-12 days

0

15

Murray 709060

SPACER, Split, .28 x .96

$7.49

$

Usually ships in 2-12 days

0

16

Murray 709028

SPRING, Compression

$4.99

$

Usually ships in 2-12 days

0

17

Murray 709038

NUT, Lock Flange 1/4

$3.99

$

Usually ships in 2-12 days

0

21

Murray 709154

BOLT, Shoulder 5/16-18 unc-2A

$6.99

$

Usually ships in 2-12 days

0

22

Murray 705350

NUT, Lock Hex w/Insert, 5/16 - 18

$5.99

$

Usually ships in 2-12 days

0

23

Murray 709414

BOLT, Hex

$4.99

$

Usually ships in 2-12 days

0

24

Murray 709236

WASHER, 17/32 x 1-3/16 x 12 Ga.

$4.99

$

Usually ships in 2-12 days

0

25

Murray 709044

BOLT, Shoulder, 5/16-18 x .62

$5.49

$

Usually ships in 2-12 days

0

26

Murray 709005

WASHER, Lock, 1/2

$11.99

$

Usually ships in 2-12 days

0
