42E707-2275-E1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump Parts Diagram

Vertical Engine

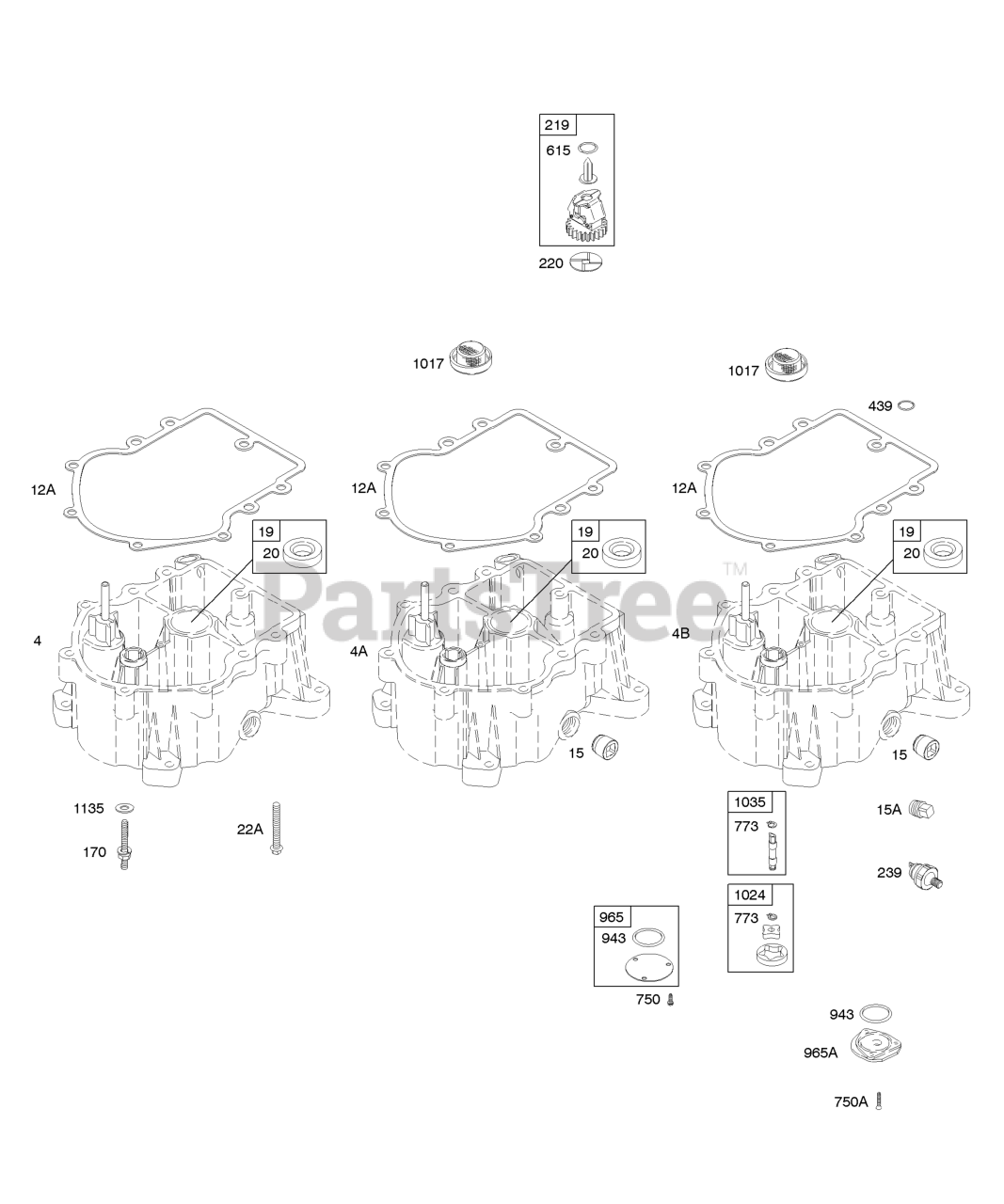

Crankcase Cover/Sump Parts Diagram

  • Title
4

Sump-Engine

Note: (NO LONGER AVAILABLE)

$

$

Not available

12A

Briggs & Stratton 271188

Gasket-Crankcase

Note: (.005" Thick)

$11.99

$

In Stock, only 4 left!

0

12A

Briggs & Stratton 692292

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$11.99

$

Usually ships in 2-12 days

0

12A

Briggs & Stratton 271189

Gasket-Crankcase

Note: (.009" Thick)

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (1/2" Square Flush)

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8" Standard)

$5.99

$

In Stock, Qty 14

0

19

Briggs & Stratton 399264

Kit-Bushing/Seal

Note: (PTO Side)

$

$

Not available

20

Briggs & Stratton 291675S

Seal-Oil

Note: (PTO Side)

$6.99

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 693972

Screw
(Superseded to 691103)

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 4 left!

0

219

Briggs & Stratton 698231

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

Washer

Note: (Governor Gear)

$

$

Not available

239

Briggs & Stratton 491657S

SWITCH, Oil Pressure

$31.99

$

In Stock, only 4 left!

0

439

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Crankcase Cover/Sump) or (Cylinder Assembly)

$8.99

$

In Stock, Qty 20+

0

615

Briggs & Stratton 698290

RETAINER, Governor Shaft

$4.49

$

In Stock, Qty 9

0

750

Briggs & Stratton 691108

SCREW

Note: (Oil Pump Cover) Used After Code Date 98011100

$3.49

$

In Stock, Qty 20+

0

750A

Briggs & Stratton 690336

Screw

Note: (Oil Pump Cover) Used Before Code Date 98011200

$2.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

Note: Used After Code Date 98011100

$13.99

$

In Stock, Qty 9

0

965A

Cover-Oil Pump

Note: (NO LONGER AVAILABLE) Used Before Code Date 98011200

$

$

Not available

1017

Briggs & Stratton 690770

Screen-Oil Pump

$

$

Not available

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1035

$17.99

$

Usually ships in 2-12 days
