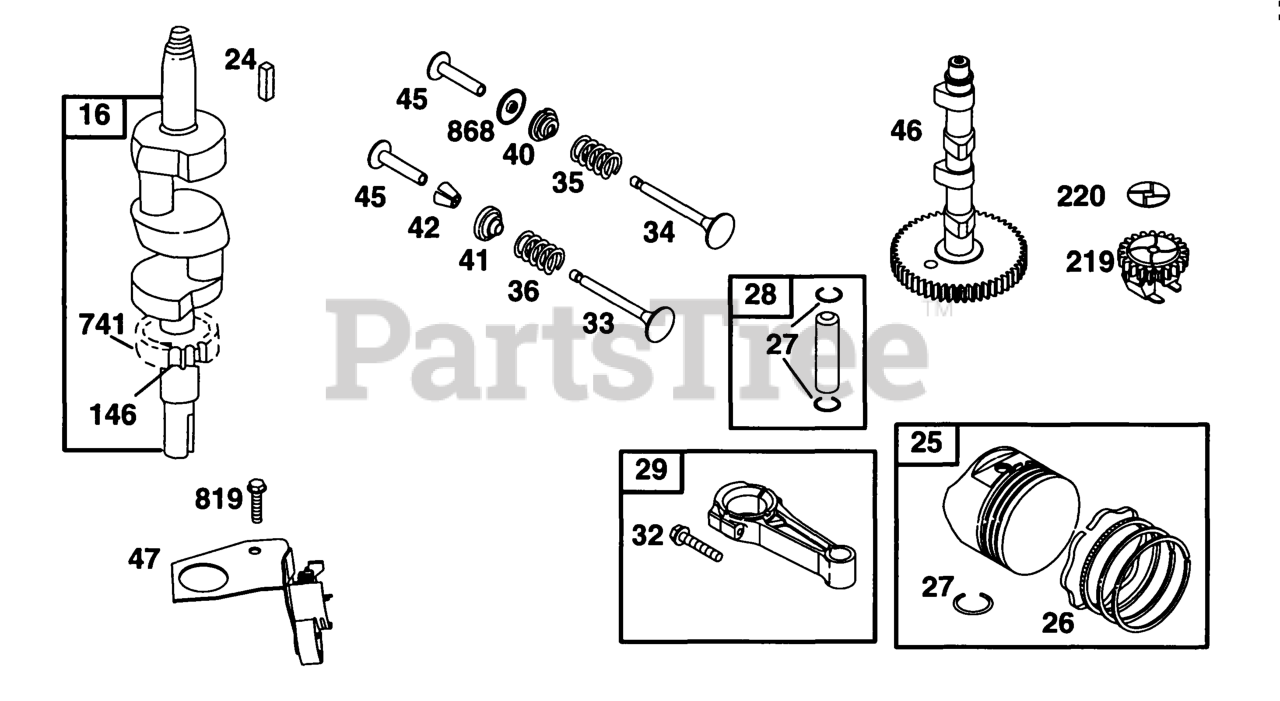

42C777-1238-XX - Briggs & Stratton Vertical Engine Piston Grp, Crankshaft, Cam Parts Diagram

Vertical Engine

Piston Grp, Crankshaft, Cam Parts Diagram

  • Title

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498584

Piston Assy-Std

$102.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498585

Piston Assy. (.010" O.S.)

$65.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498586

Piston Assy. (.020" O.S.)

$113.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498587

Piston Assy. (.030" O.S.)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 394959

Ring Set-Std

$59.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 394960

Ring Set-010

$

$

Not available

26

Briggs & Stratton 394961

Ring Set-020

$83.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 394962

Ring Set-030

$34.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 260924

Lock-Piston Pin
(Superseded to 691792)

Note: Used Before Code Date 96043000

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263129

Lock-Piston Pin
(Superseded to 691299)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

Pin-Piston Std (Std.)

Note: Used Before Code Date 96043000

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston 005 (.005 O.S.)

Note: Used Before Code Date 96043000

$14.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498319

Pin-Piston Std

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 498320

Pin-Piston .005" O.S.

$19.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 394306

Rod-Connecting (Standard)

$94.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 397158

Rod-Connecting (.020" Undersize)

$45.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94671

Screw-Hex.
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261528

Valve, Intake
(Superseded to 691804)

$

$

Not available

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

Keeper-Valve

$7.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 213520

Gear-Cam

$90.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 393415

Slinger-Oil
(Superseded to 691964)

$

$

Not available

146

Briggs & Stratton 94196

Key-Woodruff
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

219

Briggs & Stratton 394348

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 222773

Washer-Thrust
(Superseded to 690412)

$

$

Not available

741

Briggs & Stratton 262989

Gear-Timing
(Superseded to 691285)

$

$

Not available

819

Briggs & Stratton 94675

Screw-Hex.
(Superseded to 690353)

$23.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 497212

Seal-Valve
(Superseded to 692324)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047

$

$

Not available
