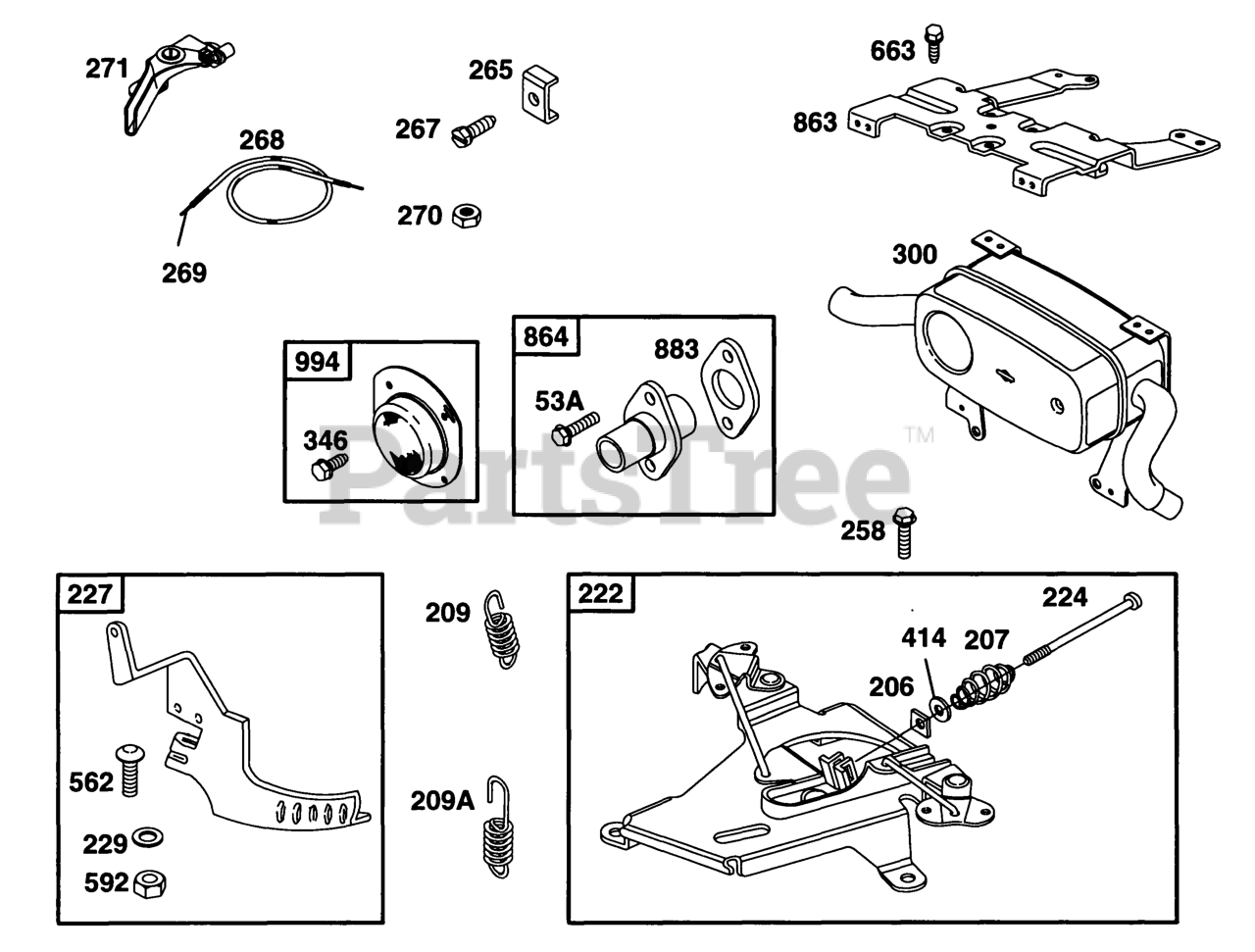

42C777-1238-XX - Briggs & Stratton Vertical Engine Muffler Grp, Controls Parts Diagram

Vertical Engine

Muffler Grp, Controls Parts Diagram

  • Title
53A

Briggs & Stratton 94881

Screw, Sem Hex Head
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

206

Briggs & Stratton 94298

Nut-Square
(Superseded to 690330)

$3.49

$

In Stock, only 2 left!

0

207

Briggs & Stratton 262337

Spring-Friction

$

$

Not available

209A

Briggs & Stratton 261563

Spring-Governor Idler
(Superseded to 691807)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 262352

Spring-Governor
(Superseded to 691273)

$10.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 491282

Plate-Governor Control

$

$

Not available

224

Briggs & Stratton 94297

Screw-Torx
(Superseded to 690329)

$3.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 491297

Wire-Stop
(Superseded to 690762)

$8.49

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 94942

Washer-Flat
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94623

Screw-Hex.
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 495898

Muffler-Exhaust
(Superseded to 690838)

$152.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

414

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 93853

Bolt-Governor Lever
(Superseded to 690311)

$4.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

863

Briggs & Stratton 224007

Bracket-Muffler
(Superseded to 690444)

$54.99

$

In Stock, only 1 left!

0

864

Briggs & Stratton 398349

Liner-Exhaust Port
(Superseded to 691970)

$

$

Not available

883

Briggs & Stratton 272250

Gasket-Exhaust
(Superseded to 692282)

Note: Included in Gasket Set-Part No. 495868

$6.99

$

In Stock, Qty 10

0

994

Briggs & Stratton 392390

Arrester-Spark
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0
