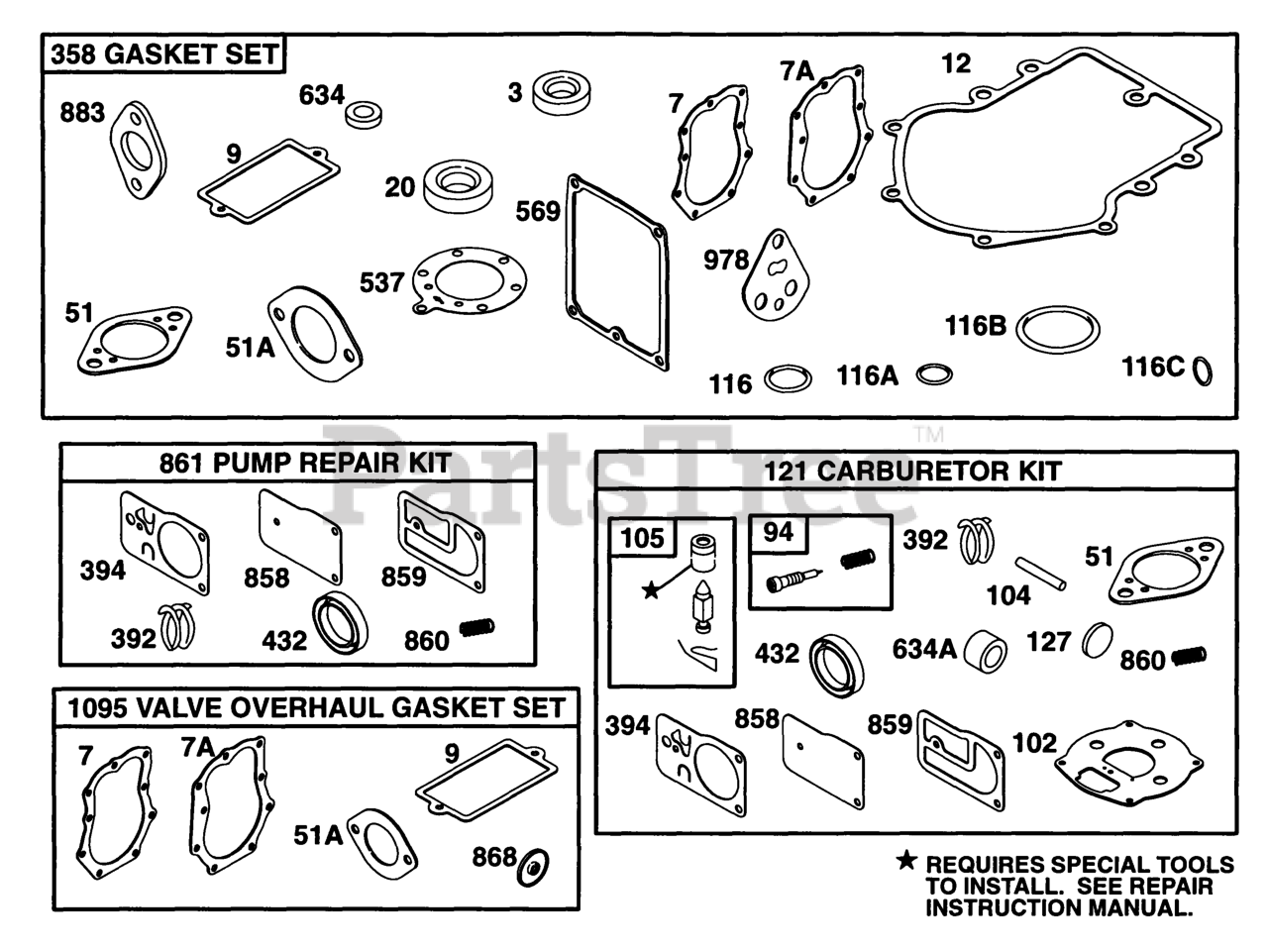

42C777-1238-XX - Briggs & Stratton Vertical Engine Gasket Sets Parts Diagram

Vertical Engine

Gasket Sets Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 495868

$6.49

$

In Stock, Qty 20+

0

7A

Briggs & Stratton 271868

Gasket, Cylinder He (Cyl. #2)
(Superseded to 271868S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 10

0

7

Briggs & Stratton 271867

Gasket, Cylinder He (Cyl. #1)
(Superseded to 271867S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 12

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271188

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271189

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271703

Gasket, Crankcase (.015" Thick, Std.)
(Superseded to 692292)

Note: Included in Gasket Set-Part No. 495868

$11.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 270884

Gasket-Intake Manifold Mtg.
(Superseded to 692219)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$5.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 271412

Gasket-Intake
(Superseded to 692278)

Note: Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491509

$5.49

$

In Stock, Qty 9

0

94

Briggs & Stratton 491538

Valve-Idle Adjustment

Note: Included in Carburetor Kit-Part No. 491509

$14.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 271607

Gasket-Carburetor Body
(Superseded to 273186S)

Note: Included in Carburetor Kit-Part No. 491509

$6.99

$

In Stock, Qty 9

0

104

Briggs & Stratton 231435

Pin-Float Hinge
(Superseded to 691775)

Note: Included in Carburetor Kit-Part No. 491509

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

Note: Included in Carburetor Kit-Part No. 491509

$9.99

$

In Stock, only 2 left!

0

116C

Briggs & Stratton 280474

Seal-O
(Superseded to 691319)

Note: Included in Gasket Set-Part No. 495868

$5.49

$

In Stock, only 1 left!

0

116A

Briggs & Stratton 271157

Seal-O
(Superseded to 692532)

Note: Included in Gasket Set-Part No. 495868

$5.99

$

In Stock, only 2 left!

0

116B

Briggs & Stratton 280801

O-Ring (Oil Pump Cover)
(Superseded to 690589)

Note: Included in Gasket Set-Part No. 495868

$8.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 495868

$4.49

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 491539

Carburetor Kit
(Superseded to 694056)

$31.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 223472

Plug, Welch
(Superseded to 691739)

Note: Included in Carburetor Kit-Part No. 491509

$4.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 495868

Gasket Set

$75.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 261395

Spring-Pump Diaphragm
(Superseded to 691801)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, Qty 9

0

394

Briggs & Stratton 272638

Diaphragm-Pump
(Superseded to 272638S)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$6.99

$

In Stock, only 4 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, only 3 left!

0

537

Briggs & Stratton 271411

Gasket-Air Cleaner
(Superseded to 690273)

Note: Included in Gasket Set-Part No. 495868. Included in Carburetor Kit-Part No. 491509

$5.49

$

In Stock, Qty 9

0

569

Briggs & Stratton 272645

Gasket-Base
(Superseded to 692287)

Note: Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 6

0

634A

Briggs & Stratton 271013

Sealing Washer (Foam)
(Superseded to 691872)

Note: Included in Carburetor Kit-Part No. 491509

$7.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 491287

Seal-Governor Shaft
(Superseded to 790574)

Note: Included in Gasket Set-Part No. 495868

$5.99

$

In Stock, Qty 20+

0

858

Briggs & Stratton 270989

Diaphragm-Pump
(Superseded to 691871)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$6.49

$

In Stock, only 1 left!

0

859

Briggs & Stratton 271025

Gasket-Pump
(Superseded to 691873)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$8.49

$

In Stock, only 1 left!

0

860

Briggs & Stratton 261358

Spring, Valve
(Superseded to 691799)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$7.49

$

In Stock, only 1 left!

0

861

Briggs & Stratton 393397

Repair Kit-Pump

$

$

Not available

868

Briggs & Stratton 497212

Seal-Valve
(Superseded to 692324)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047

$

$

Not available

883

Briggs & Stratton 272250

Gasket-Exhaust
(Superseded to 692282)

Note: Included in Gasket Set-Part No. 495868

$6.99

$

In Stock, Qty 10

0

978

Briggs & Stratton 272060

Gasket-Oil Adapter
(Superseded to 691313)

Note: Included in Gasket Set-Part No. 495868

$

$

Not available

1095

Briggs & Stratton 498047

Kit-Valve Overhaul

$

$

Not available
