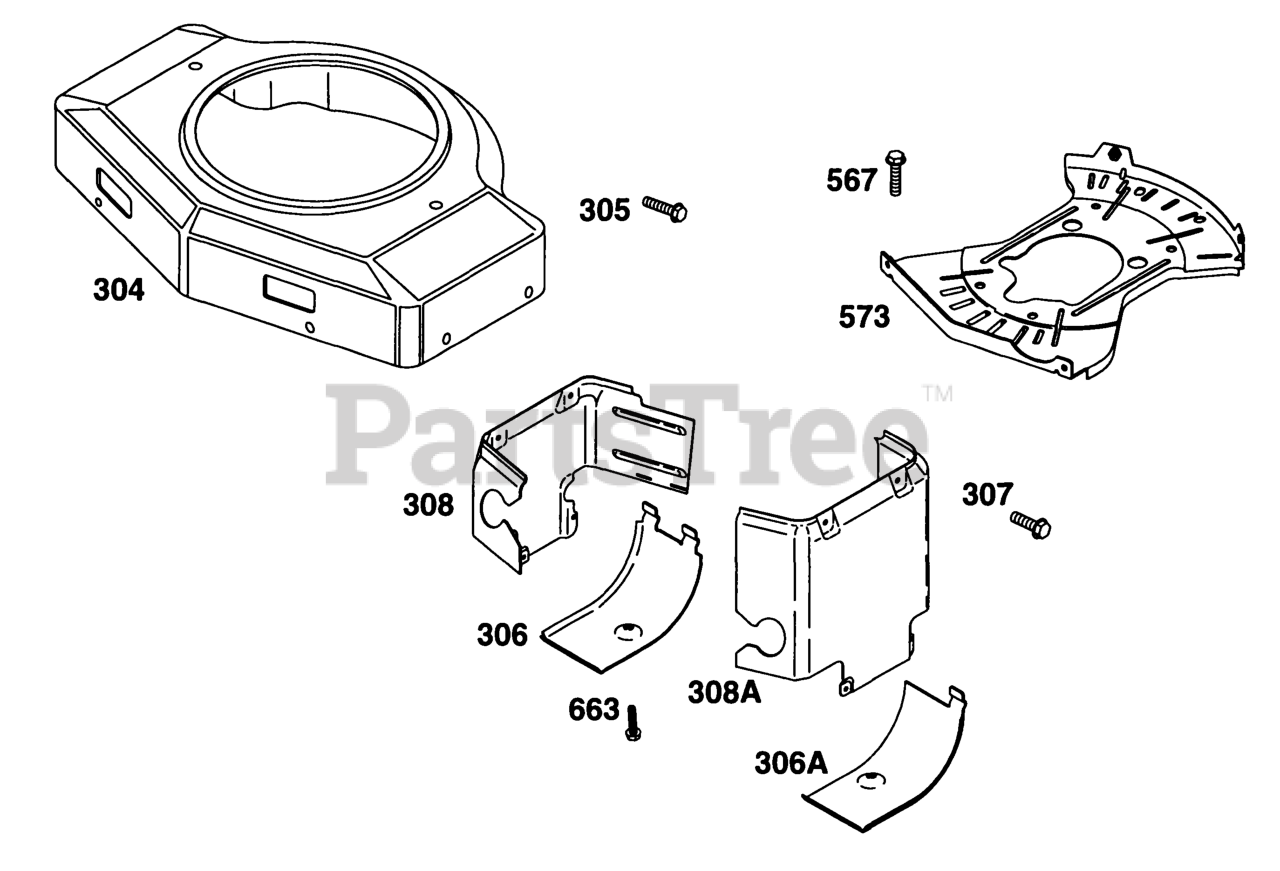

42C777-1238-XX - Briggs & Stratton Vertical Engine Blower Hsg. Air Guides Parts Diagram

Vertical Engine

Blower Hsg. Air Guides Parts Diagram

  • Title

304

Briggs & Stratton 495588

Blo Hsg/Nut Assy (P (Black)
(Superseded to 691391)

$65.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

Screw, Machine Hex (1/2" Long)
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306A

Briggs & Stratton 223734

Shield-Cylinder
(Superseded to 690435)

$10.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 222846

Shield-Cylinder
(Superseded to 690414)

$23.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94386

Screw-Sem
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308A

Briggs & Stratton 224775

Cover, Head #2 (P-2)
(Superseded to 691197)

Note: (Includes Mtg. Parts)

$75.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 224774

Cover-Air Guide
(Superseded to 691196)

$166.99

$

Usually ships in 2-12 days

0

567

Briggs & Stratton 94811

Screw, Machine Hex
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

573

Briggs & Stratton 491304

Plate-Black
(Superseded to 696040)

$51.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0
