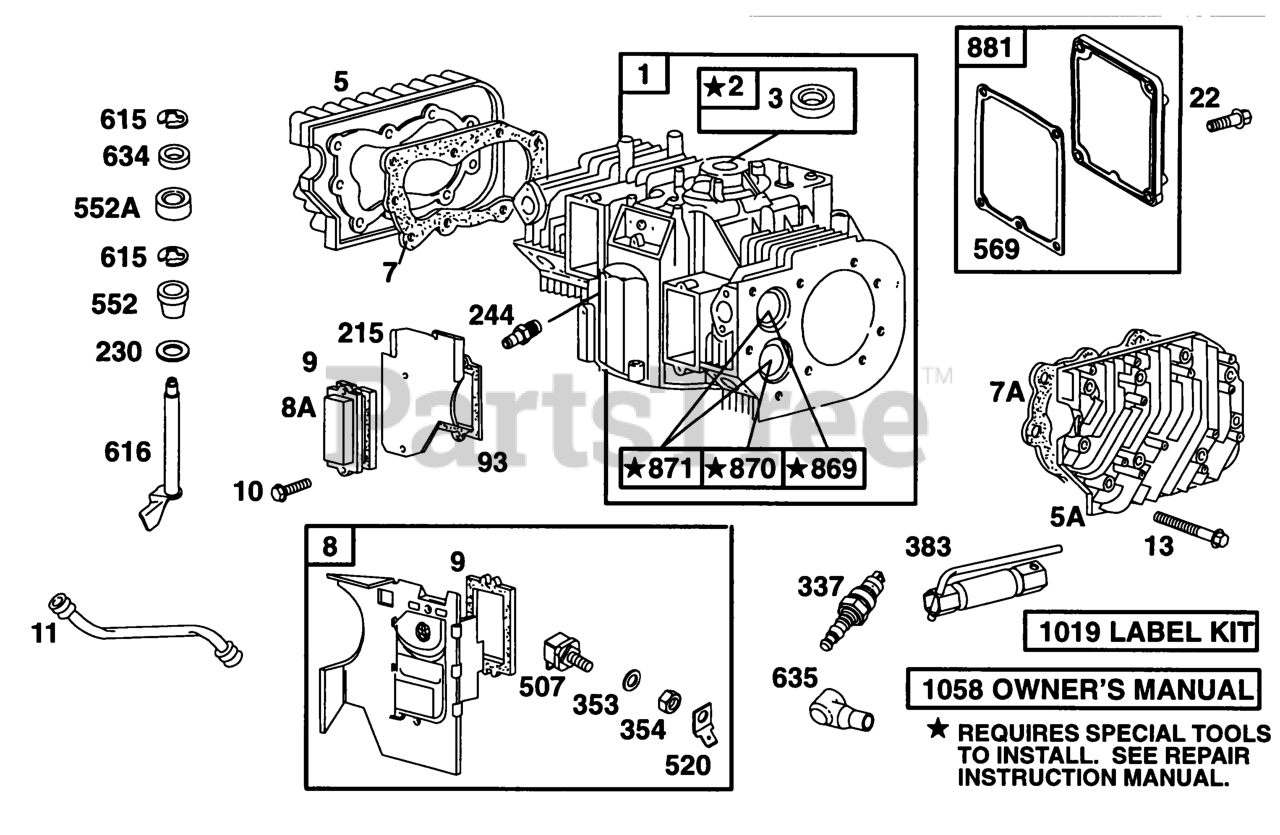

42C777-1237-01 - Briggs & Stratton Vertical Engine Cylinder, Heads Parts Diagram

Vertical Engine

Cylinder, Heads Parts Diagram

  • Title

1

Briggs & Stratton 497074

Cylinder Assembly

Note: Include(s): 94296 Retainer 94386 Screw-Hex. 223882 Washer 262331 Bushing-Gov. Crank 262332 Bushing-Gov. Crank 491287 Seal Governor Shaft 491530 Crank-Governor

$

$

Not available

2

Briggs & Stratton 399265

Bushing/Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 495868

$6.49

$

In Stock, Qty 20+

0

5A

Briggs & Stratton 493458

Head-Cylinder (Cyl. #2)

$

$

Not available

5

Briggs & Stratton 493457

Head-Cylinder (Cyl. #1)

$

$

Not available

7A

Briggs & Stratton 271868

Gasket, Cylinder He (Cyl. #2)
(Superseded to 271868S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 10

0

7

Briggs & Stratton 271867

Gasket, Cylinder He (Cyl. #1)
(Superseded to 271867S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 12

0

8A

Briggs & Stratton 222892

Valve Cover (Cyl. #2)
(Superseded to 690415)

$10.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 495754

Breather Assy (Cylinder #1)

$

$

Not available

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498047. Included in Gasket Set-Part No. 495868

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94830

Screw-Hex.
(Superseded to 690366)

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 280225

Tube-Breather
(Superseded to 691899)

$13.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 94565

Screw, Machine Hex
(Superseded to 592244)

Note: (Cylinder Head) (3 9/16" Long)

$3.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94724

Screw-Hex.
(Superseded to 691104)

$4.49

$

In Stock, only 2 left!

0

93

Briggs & Stratton 231209

Bushing-Throttle Shaft
(Superseded to 690513)

$8.99

$

Usually ships in 2-12 days

0

215

Briggs & Stratton 224816

Valve Chamber Cover (Cyl. #2)
(Superseded to 690481)

$9.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 223882

Washer
(Superseded to 690442)

$3.49

$

In Stock, Qty 5

0

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

507

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

552A

Briggs & Stratton 262331

Bearing, Shaft (Upper)
(Superseded to 690552)

$8.49

$

In Stock, Qty 9

0

552

Briggs & Stratton 262332

Bearing, Shaft (Lower)
(Superseded to 690553)

$7.49

$

In Stock, Qty 9

0

569

Briggs & Stratton 272645

Gasket-Base
(Superseded to 692287)

Note: Included in Gasket Set-Part No. 495868

$10.99

$

In Stock, Qty 6

0

615

Briggs & Stratton 94296

Retainer-Governor
(Superseded to 690328)

$4.49

$

In Stock, Qty 6

0

616

Briggs & Stratton 491530

Crank-Governor

$

$

Not available

634

Briggs & Stratton 491287

Seal-Governor Shaft
(Superseded to 790574)

Note: Included in Gasket Set-Part No. 495868

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 7

0

869

Briggs & Stratton 261463

Seat, Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 213316

Seat, Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

881

Briggs & Stratton 495901

Plate-Cover

$359.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496726

Label Kit

$6.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272112

Owner's Manual (Non Emission Engines)

$

$

Not available
