42C777-1237-01 - Briggs & Stratton Vertical Engine Carburetor Assy Parts Diagram

Vertical Engine

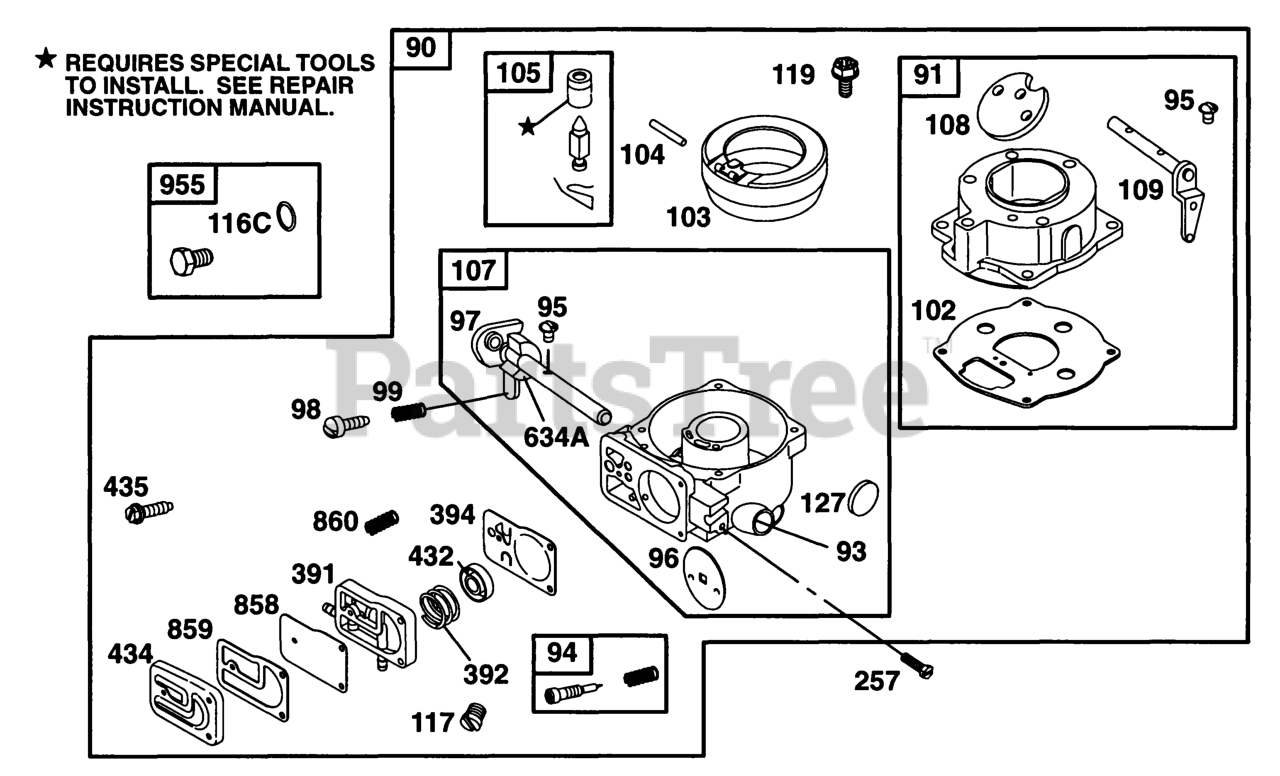

Carburetor Assy Parts Diagram

  • Title

90

Briggs & Stratton 495181

Carburetor
(Superseded to 693480)

$289.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 495035

Body Assy.-Upper
(Superseded to 694026)

$

$

Not available

93

Briggs & Stratton 231209

Bushing-Throttle Shaft
(Superseded to 690513)

$8.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 491538

Valve-Idle Adjustment

Note: Included in Carburetor Kit-Part No. 491509

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 392672

Shaft-Throttle
(Superseded to 690629)

$38.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 271607

Gasket-Carburetor Body
(Superseded to 273186S)

Note: Included in Carburetor Kit-Part No. 491509

$6.99

$

In Stock, Qty 9

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 8

0

104

Briggs & Stratton 231435

Pin-Float Hinge
(Superseded to 691775)

Note: Included in Carburetor Kit-Part No. 491509

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

Note: Included in Carburetor Kit-Part No. 491509

$9.99

$

In Stock, only 2 left!

0

107

Briggs & Stratton 491543

Body Assy.-Lower

$

$

Not available

108

Briggs & Stratton 223534

Valve-Choke

$7.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 392673

Shaft-Choke
(Superseded to 691957)

$45.99

$

Usually ships in 2-12 days

0

116C

Briggs & Stratton 280474

Seal-O
(Superseded to 691319)

Note: Included in Gasket Set-Part No. 495868

$5.49

$

In Stock, only 1 left!

0

117

Briggs & Stratton 231333

Jet-Main (Fixed) (High Altitude)

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 231338

Seat, Orifice

$

$

Not available

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 223472

Plug, Welch
(Superseded to 691739)

Note: Included in Carburetor Kit-Part No. 491509

$4.49

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93897

Screw, Sem Hex Head
(Superseded to 690316)

$3.99

$

Usually ships in 2-12 days

0

391

Briggs & Stratton 280197

Body-Pump
(Superseded to 691896)

$15.99

$

In Stock, Qty 6

0

392

Briggs & Stratton 261395

Spring-Pump Diaphragm
(Superseded to 691801)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, Qty 9

0

394

Briggs & Stratton 272638

Diaphragm-Pump
(Superseded to 272638S)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$6.99

$

In Stock, only 4 left!

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$4.99

$

In Stock, only 3 left!

0

434

Briggs & Stratton 223688

Cover-Pump
(Superseded to 690434)

$

$

Not available

435

Briggs & Stratton 93829

Screw-Slotted Hex.
(Superseded to 691085)

$4.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 271013

Sealing Washer (Foam)
(Superseded to 691872)

Note: Included in Carburetor Kit-Part No. 491509

$7.49

$

Usually ships in 2-12 days

0

858

Briggs & Stratton 270989

Diaphragm-Pump
(Superseded to 691871)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$6.49

$

In Stock, only 1 left!

0

859

Briggs & Stratton 271025

Gasket-Pump
(Superseded to 691873)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$8.49

$

In Stock, only 1 left!

0

860

Briggs & Stratton 261358

Spring, Valve
(Superseded to 691799)

Note: Included in Carburetor Kit-Part No. 491509. Included in Pump Repair Kit-Part No. 393397

$7.49

$

In Stock, only 1 left!

0

955

Briggs & Stratton 397882

Plug-Carb (Solenoid Hole)

$

$

Not available
