42917x8B - Scotts 42" Lawn Tractor (1996) Mower Housing Parts Diagram

42" Lawn Tractor

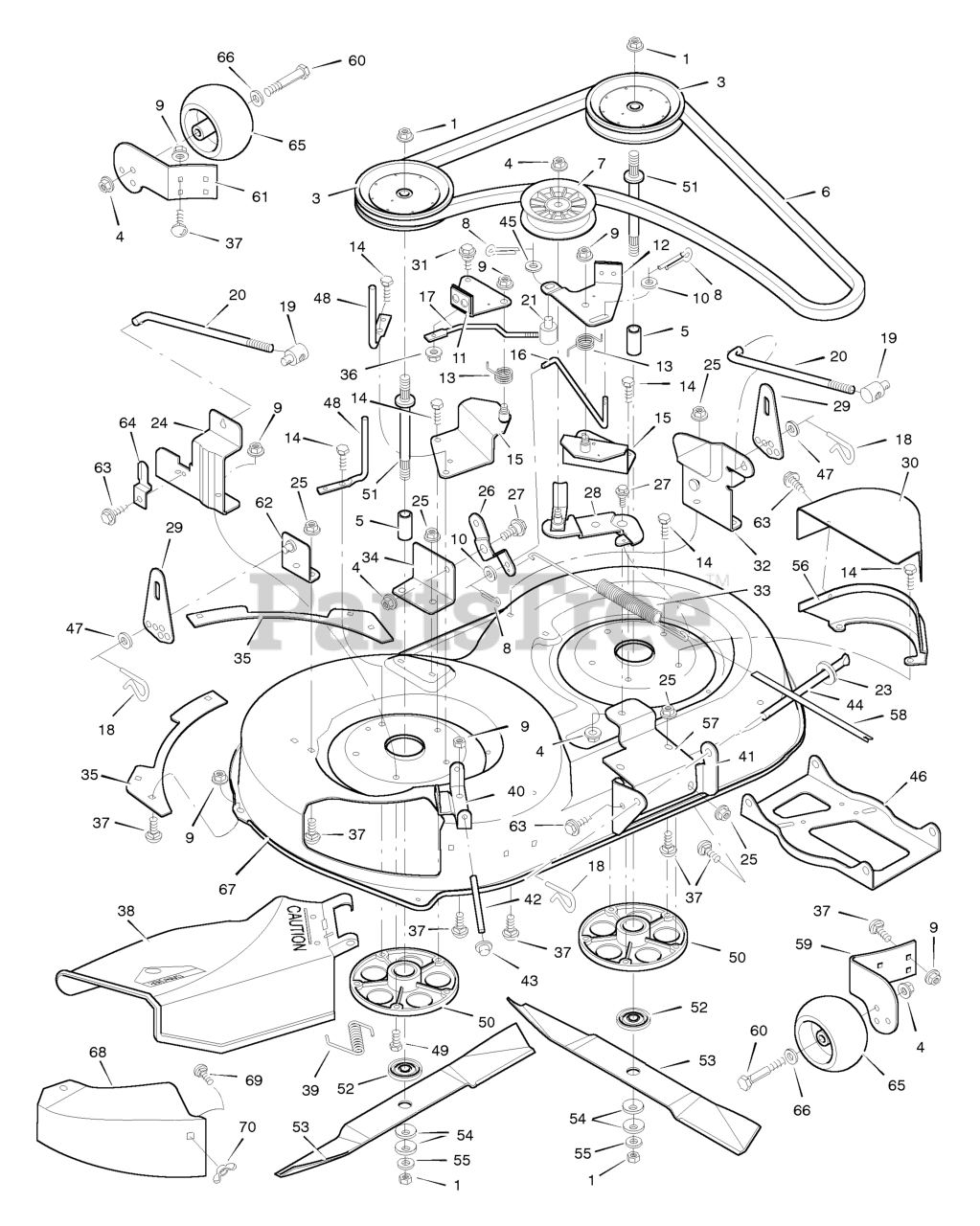

Mower Housing Parts Diagram

  • Title

1

Murray 15X121

Nut, Hex

$9.99

$

In Stock, Qty 7

0

3

Murray 092853MA

Pulley, Jackshaft

$76.99

$

In Stock, only 1 left!

0

4

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Murray 092850

Spacer

$

$

Not available

6

Murray 037X75A

Belt, Blade Drive

$42.99

$

In Stock, only 3 left!

0

7

Murray 091801

Pulley, Idler
(Superseded to 091801MA)

$24.99

$

In Stock, Qty 7

0

8

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

10

Murray 017X46 Z

Washer

$

$

Currently unavailable

11

Murray 092413E701MA

Brake Assembly, Right

$

$

Not available

12

Murray 092411E701MA

Brake Assembly, Left

$58.99

$

Usually ships in 2-12 days

0

13

Murray 166X27MA

Spring, Torsion

$4.49

$

Usually ships in 2-12 days

0

14

Murray 0025X6MA

Bolt, Hex

$5.49

$

Usually ships in 2-12 days

0

15

Murray 092415E701MA

Bracket Assembly, Brake

$12.99

$

Usually ships in 2-12 days

0

16

Murray 92421 Z

Rod, Brake

$

$

Currently unavailable

17

Murray 92420 Z

Rod, Cross Link

$

$

Currently unavailable

18

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

20

Murray 092134 Z

Rod, Adjuster

$

$

Currently unavailable

21

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

23

Murray 17X103MA

Washer

$4.99

$

In Stock, only 2 left!

0

24

Murray 092402E701MA

Bracket, Right

$52.99

$

Usually ships in 2-12 days

0

25

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Murray 092033SEMA

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

27

Murray 009X39MA

Bolt, Carriage

$6.49

$

In Stock, Qty 6

0

28

Murray 92032E701

Arm Assembly, Idler

$114.99

$

Usually ships in 2-12 days

0

29

Murray 093203E701MA

Plate, Adjuster

$75.99

$

Usually ships in 2-12 days

0

30

Murray 92417E701

Cover, Pulley

$

$

Not available

31

Murray 009X40MA

Bolt, Shoulder

$34.99

$

Usually ships in 2-12 days

0

32

Murray 093275E701MA

Bracket Assembly, Left Lifter

$27.99

$

Usually ships in 2-12 days

0

33

Murray 165X72MA

Spring, Extension

$19.99

$

In Stock, only 1 left!

0

34

Murray 92407E701

Bracket, Pivot

$

$

Currently unavailable

35

Murray 092426E701MA

Plate

$10.99

$

In Stock, only 1 left!

0

36

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

37

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

38

Murray 092465SE

Deflector Assembly, Chute

$

$

Currently unavailable

39

Murray 0166X4MA

Spring, Torsion

$6.49

$

In Stock, Qty 9

0

40

Murray 91765E701

Bracket, Hinge

$

$

Currently unavailable

41

Murray 092405E701MA

Bracket, Front Hanger

$16.99

$

Usually ships in 2-12 days

0

42

Murray 091767 Z

Rod, Deflector

$

$

Currently unavailable

43

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

44

Murray 091739 Z

Rod, Hanger

$

$

Currently unavailable

45

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

46

Murray 092119SEMA

Hanger, Front

$128.99

$

Usually ships in 2-12 days

0

47

Murray 017X91MA

Washer

$5.49

$

In Stock, Qty 11

0

48

Murray 092424E701MA

Rod, Belt Guide

$49.99

$

Usually ships in 2-12 days

0

49

Murray 01X139MA

Bolt, Hex

$3.49

$

In Stock, Qty 5

0

50

Murray 092573

Housing, Jackshaft

$

$

Currently unavailable

51

Murray 092849MA

Jackshaft

$23.99

$

Usually ships in 2-12 days

0

52

Murray 092466MA

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

53

Murray 056252E701MA

Blade, 42" (Left)

$31.99

$

In Stock, only 2 left!

0

--

Murray 092545E701MA

Blade, 42" (Right)

$27.99

$

Usually ships in 2-12 days

0

54

Murray 17X166MA

Washer, Belleville

$13.99

$

In Stock, Qty 18

0

55

Murray 17X154

Washer

$1.99

$

Usually ships in 2-12 days

0

56

Murray 92416E701

Bracket, Pulley Cover

$

$

Currently unavailable

57

Murray 092406E701MA

Bracket, Idler Mount

$23.99

$

Usually ships in 2-12 days

0

58

Murray 092163MA

Indicator, Plastic

$6.99

$

Usually ships in 2-12 days

0

59

Murray 1001260E701MA

Bracket, Right Wheel

$28.99

$

Usually ships in 2-12 days

0

60

Murray 094025MA

BOLT, Gauge Wheel

$11.99

$

In Stock, only 1 left!

0

61

Murray 92423E701

Bracket, Left Wheel

$21.99

$

Usually ships in 2-12 days

0

62

Murray 092409E701

Bracket Assembly, Right Lifter

$

$

Currently unavailable

63

Murray 26X249MA

Screw

$

$

Not available

64

Murray 91973E701

Guide, Belt

$

$

Currently unavailable

65

Murray 092683MA

Wheel, Gauge

$15.99

$

In Stock, only 3 left!

0

66

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

67

Murray 092401E701MA

Housing, Blade

$358.99

$

Usually ships in 2-12 days

0

--

Murray 403347MA

Complete Mower Housing Assembly

Note: (Includes Ref. No. 1 - 67)

$1253.99

$

Usually ships in 2-12 days

0

68

Murray 56253E701

Cover, Mulcher

$

$

Currently unavailable

69

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

70

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0
