42917x8A - Murray 42" Lawn Tractor (1996) Engine Mount Parts Diagram

42" Lawn Tractor

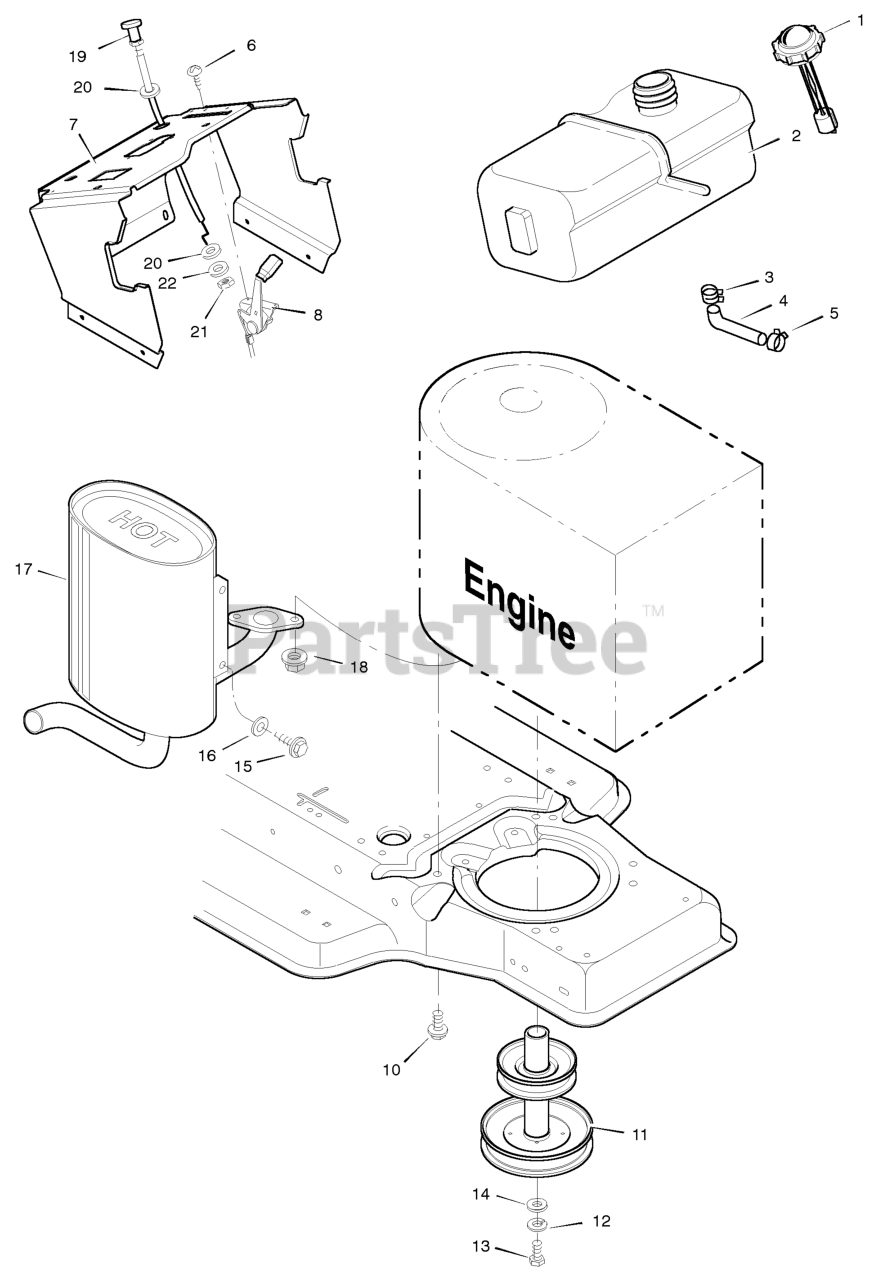

Engine Mount Parts Diagram

  • Title
1

Murray 091348MA

Fuel Cap

$48.99

$

In Stock, only 1 left!

0

2

Murray 092597

Fuel Tank

$

$

Currently unavailable

3

Murray 091174

Hose Clamp

$

$

Currently unavailable

4

Murray 090671MA

Fuel Line

$17.99

$

Usually ships in 2-12 days

0

5

Murray 091174

Hose Clamp

$

$

Currently unavailable

6

$4.49

$

In Stock, only 2 left!

0

7

Murray 93136E701

Support, Dash

$

$

Currently unavailable

8

Murray 093294

Throttle Control

$

$

Currently unavailable

9

Engine *

$

$

Not available

10

Murray 180X17

Bolt, Engine Mount

$3.49

$

Usually ships in 2-12 days

0

11

Murray 093245 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

$

$

Not available

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray 093296

Muffler

$

$

Currently unavailable

18

Murray 0190X5

Nut, Hex

$

$

Currently unavailable

19

Murray 093293

Cable, Choke

$

$

Currently unavailable

20

Murray 17X185

Washer
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

21

Murray 015X33MA

Nut, Hex

$3.49

$

In Stock, only 1 left!

0

22

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0
