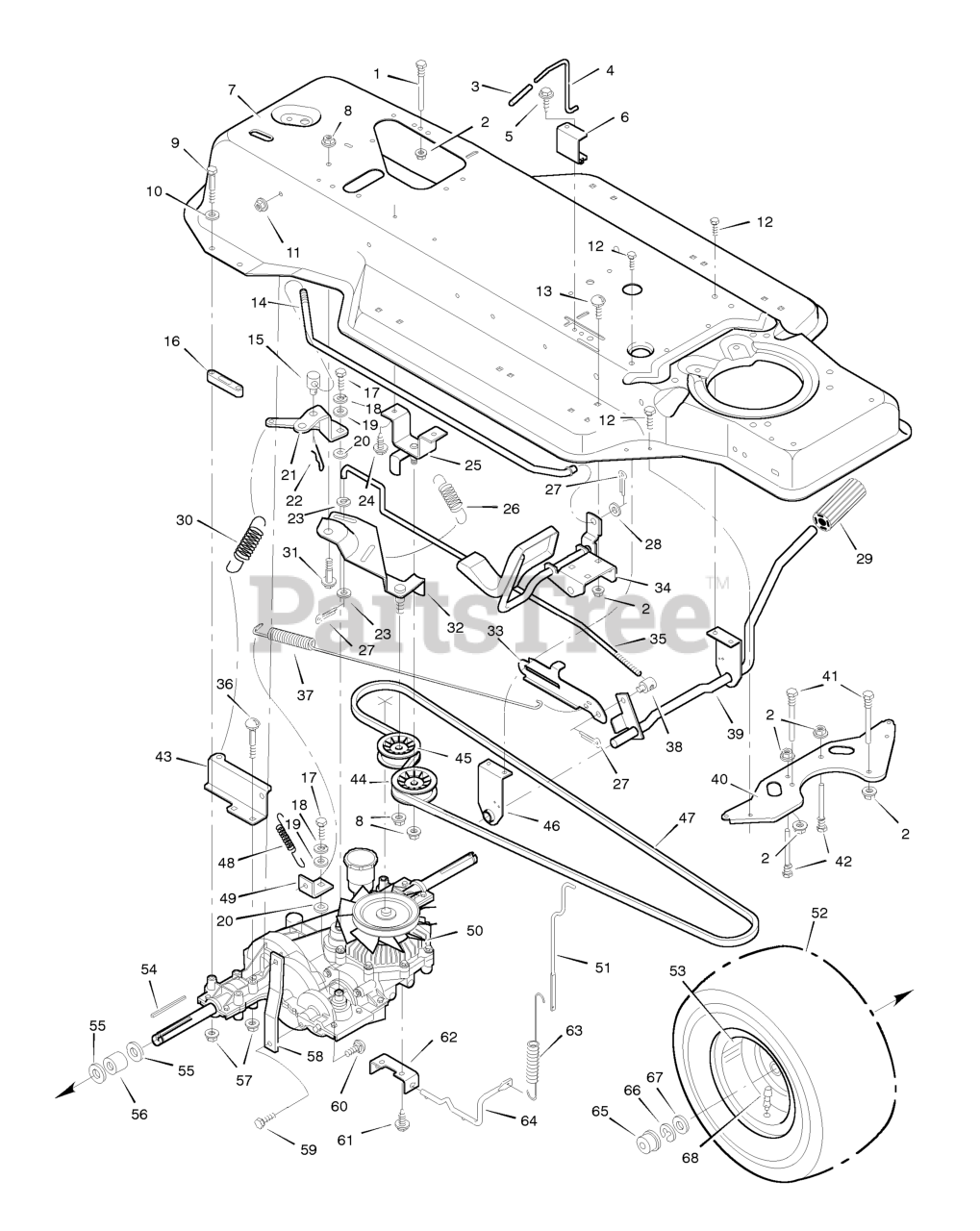

42912x70B - Murray 42" Lawn Tractor (1996) Motion Drive Parts Diagram

42" Lawn Tractor

Motion Drive Parts Diagram

  • Title
1

Murray 092632MA

Guide, Belt

$

$

Not available

2

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

$

$

Currently unavailable

4

Murray 091727 Z

Rod, Parking Brake

$

$

Currently unavailable

5

$4.49

$

Usually ships in 2-12 days

0

6

Murray 91825E701

Bracket, Guide

$

$

Currently unavailable

7

Murray 092815E245

Frame Assembly

$

$

Currently unavailable

8

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

$4.99

$

Usually ships in 2-12 days

0

10

$5.49

$

Usually ships in 2-12 days

0

11

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

$

$

Not available

13

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 092631 Z

Rod, Control

$

$

Currently unavailable

15

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

16

Murray 092682

Spacer, Hydro

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

19

$3.99

$

Usually ships in 2-12 days

0

20

$3.99

$

Usually ships in 2-12 days

0

21

Murray 092594 Z

Lever, Control

$

$

Currently unavailable

22

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

23

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Murray 92565E701

Idler Mount Assembly

$

$

Currently unavailable

26

Murray 165X98MA

Spring, Extension

$

$

Not available

27

Murray 030X20MA

Cotter Pin
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

$4.49

$

Usually ships in 2-12 days

0

29

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

30

Murray 165X99

Spring, Extension

$

$

Currently unavailable

31

Murray 009X39MA

Shoulder Bolt

$6.49

$

In Stock, Qty 6

0

32

Murray 092737 Z

Idler Bracket Assembly

$

$

Currently unavailable

33

Murray 091712 Z

Latch, Parking Brake

$

$

Currently unavailable

34

Murray 092676E701

Pedal Assembly

$

$

Currently unavailable

35

Murray 918082

Clutch Rod

$

$

Currently unavailable

36

Murray 002X58

Carriage Bolt

$

$

Currently unavailable

37

Murray 165X101MA

Spring, Extension

$43.99

$

Usually ships in 2-12 days

0

38

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

39

Murray 91862E701

Pedal Lever Assembly

$

$

Not available

40

Murray 092694E701MA

Plate, Belt Guide

$23.99

$

Usually ships in 2-12 days

0

41

Murray 091754 Z

Screw, Guide

$

$

Currently unavailable

42

Murray 020619 Z

Screw, Guide

$

$

Currently unavailable

43

Murray 092706 Z

Bracket, Spring Mount

$

$

Currently unavailable

44

Murray 091178

Idler Pulley

$

$

Not available

45

Murray 091179MA

Idler Pulley

$17.99

$

In Stock, Qty 16

0

46

Murray 091713E701

Support, Pedal

$54.99

$

Usually ships in 2-12 days

0

47

Murray 037X80MA

V- Belt

$43.99

$

In Stock, only 2 left!

0

48

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

49

Murray 92569E701

Lever, Brake

$

$

Currently unavailable

50

Transaxle **

$

$

Not available

51

Murray 092674 Z

Rod, Dump Valve

$

$

Currently unavailable

52

Murray 92511-601

Wheel & Tire Assembly

$

$

Not available

53

Murray 407926MA

Tire *

Note: (Included with Ref. No. 14)

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

Note: (Included with Ref. No. 52)

$68.99

$

Usually ships in 2-12 days

0

54

Murray 021553MA

Square Key

$4.99

$

In Stock, only 2 left!

0

55

$4.99

$

In Stock, Qty 20+

0

56

Murray 690553 Z

Spacer, Wheel

$

$

Currently unavailable

57

Murray 15X115MA

Nut, Flange

$3.99

$

Usually ships in 2-12 days

0

58

Murray 092568E701

Strap, Torque

$

$

Currently unavailable

59

$6.99

$

In Stock, Qty 5

0

60

Murray 002X64MA

Carriage Bolt

$4.49

$

In Stock, only 1 left!

0

61

$3.99

$

Usually ships in 2-12 days

0

62

Murray 092603 Z

Bracket, Dump Valve

$

$

Currently unavailable

63

Murray 165X104MA

Spring, Extension

$9.99

$

Usually ships in 2-12 days

0

64

Murray 093247 Z

Rod, Dump Valve

$

$

Currently unavailable

65

Murray 024582MA

Hub Cap

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0

66

$5.49

$

In Stock, Qty 20+

0

67

$6.99

$

Usually ships in 2-12 days

0

68

Murray 024373MA

Valve Stem

$

$

Not available
