42911x65B - Murray 42" Lawn Tractor (1996) Engine Mount Parts Diagram

42" Lawn Tractor

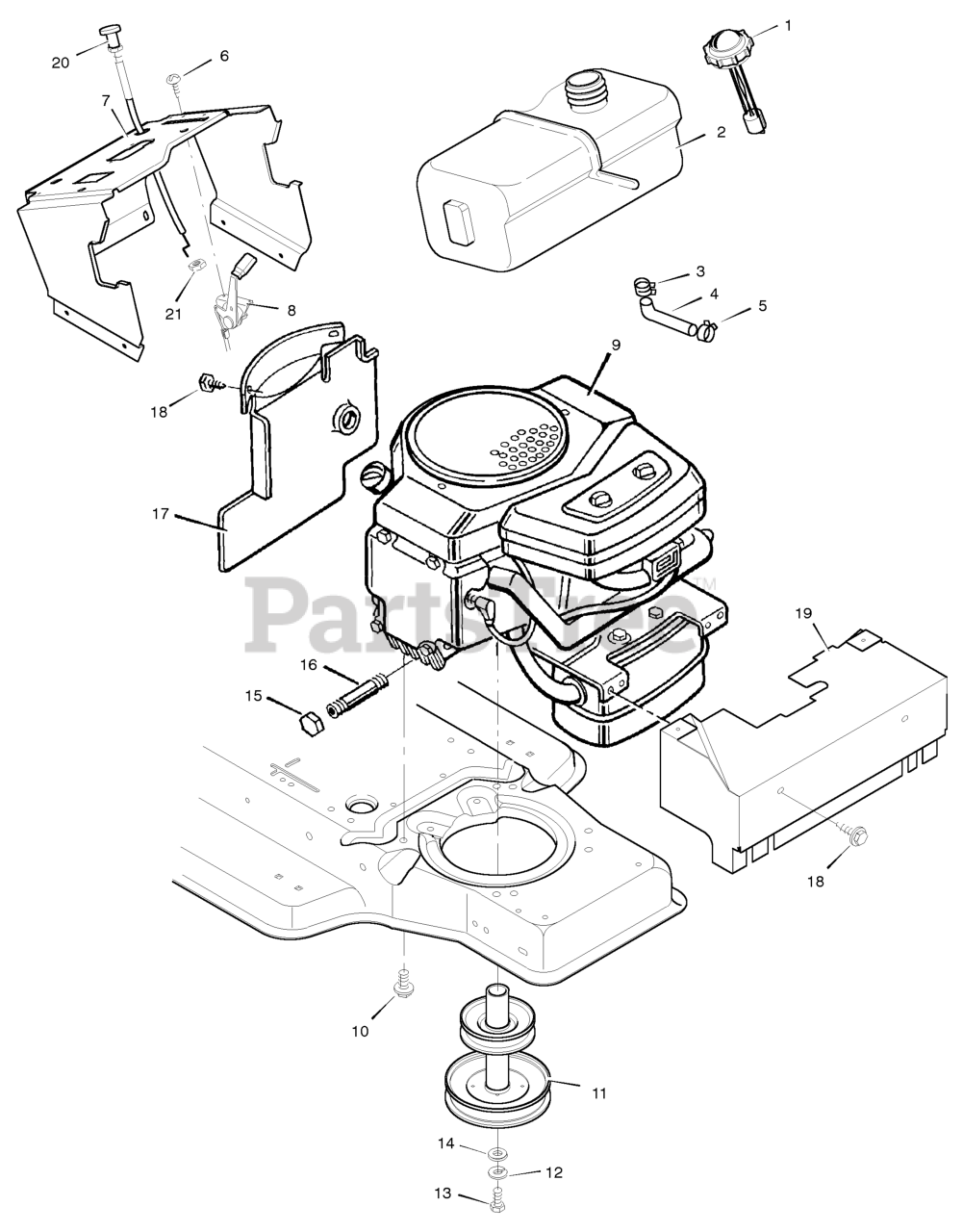

Engine Mount Parts Diagram

  • Title

1

Murray 091348MA

Fuel Cap

$48.99

$

In Stock, only 1 left!

0

2

Murray 092597

Fuel Tank

$

$

Currently unavailable

3

Murray 091174

Hose Clamp

$

$

Currently unavailable

4

Murray 93198

Fuel Line

$

$

Not available

5

Murray 091174

Hose Clamp

$

$

Currently unavailable

6

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

7

Murray 93136E701

Support, Dash

$

$

Currently unavailable

8

Murray 093165MA

Throttle Control

$39.99

$

Usually ships in 2-12 days

0

9

Engine *

$

$

Not available

10

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

11

Murray 093245 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

13

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0

14

Murray 17X170MA

Washer

$

$

Not available

15

Murray 021651

Cap, Oil Drain

$7.49

$

Usually ships in 2-12 days

0

16

Murray 092279

Pipe, Oil Drain

$8.49

$

Usually ships in 2-12 days

0

17

Murray 093078E701

Baffle, Rear Engine

$

$

Currently unavailable

18

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

19

Murray 093191

Baffle, Front Engine

$90.99

$

Usually ships in 2-12 days

0

20

Murray 091326

Choke

$32.99

$

In Stock, only 1 left!

0

21

Murray 0019X8MA

Washer
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0
