42910x92C - Briggs & Stratton 42" Lawn Tractor (1996) Motion Drive Parts Diagram

42" Lawn Tractor

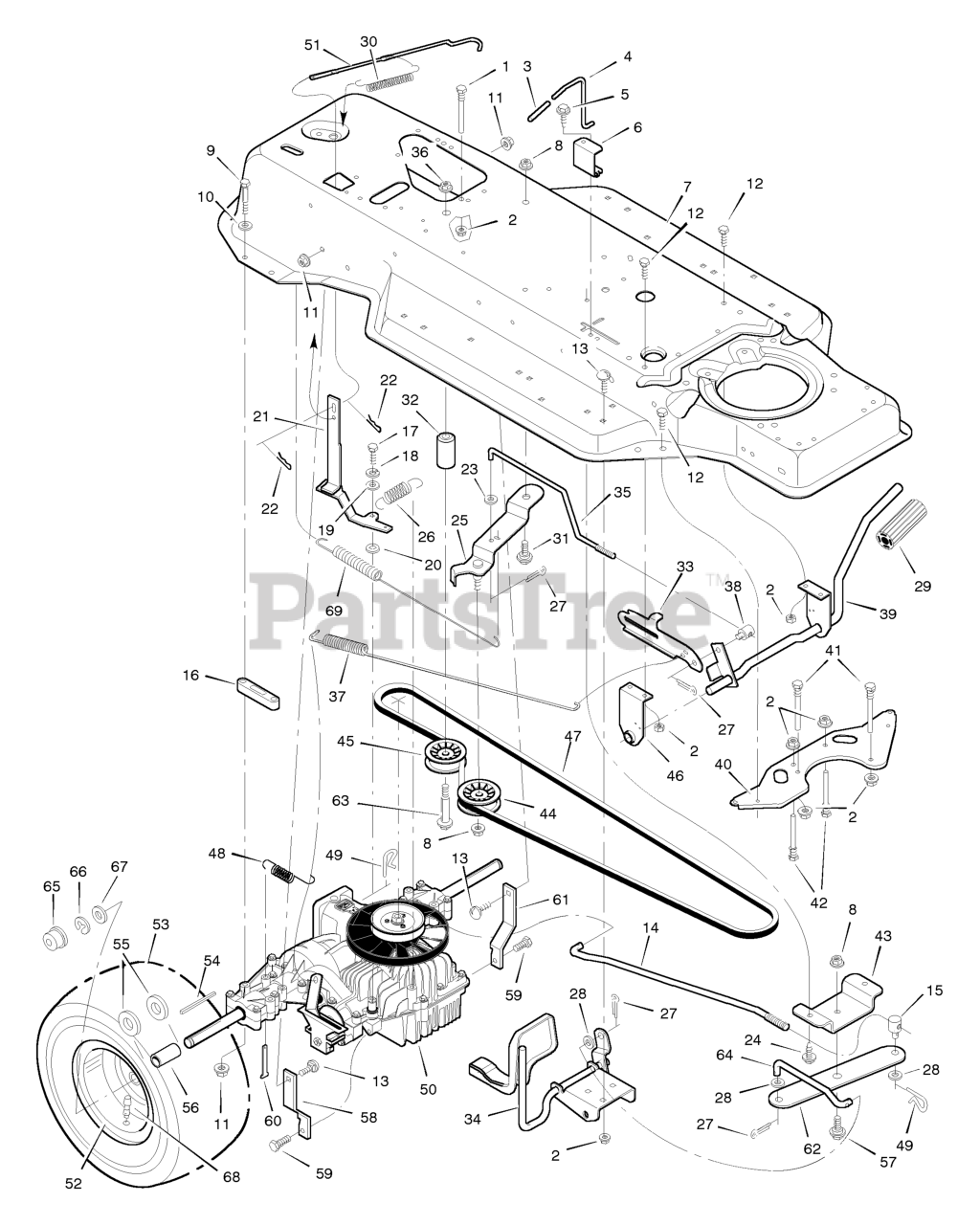

Motion Drive Parts Diagram

  • Title

1

Murray 091754MA

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

2

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Murray 092724

Grip

$

$

Currently unavailable

4

Murray 091727 Z

Rod, Parking Brake

$

$

Currently unavailable

5

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

6

Murray 91825E701

Bracket, Guide

$

$

Currently unavailable

7

Murray 092815F200

Frame Assembly

$

$

Currently unavailable

8

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

9

Murray 01X156MA

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

10

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

11

Murray 015X41MA

Nut, Flange

$5.49

$

Usually ships in 2-12 days

0

12

Murray 26X249MA

Screw

$

$

Not available

13

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

14

Murray 92813 Z

Rod, Secondary Control

$

$

Currently unavailable

15

Murray 092132MA

NUT, Adjusting, 1/2-13
(Superseded to 092132ZMA)

$14.99

$

Usually ships in 2-12 days

0

16

Murray 092682

Spacer, Hydro

$

$

Currently unavailable

17

Murray 01X145MA

Bolt

$4.49

$

Usually ships in 2-12 days

0

18

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

19

Murray 17X180MA

Washer

$6.99

$

Usually ships in 2-12 days

0

20

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

21

Murray 92808 Z

Lever, Control

$

$

Currently unavailable

22

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

23

Murray 17X472

Washer

$

$

Currently unavailable

24

Murray 26X249MA

Screw

$

$

Not available

25

Murray 092797 Z

Idler Mount Assembly

$

$

Currently unavailable

26

Murray 165X11 Z

Spring, Extension

$

$

Currently unavailable

27

Murray 030X20MA

Cotter Pin
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

29

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

30

Murray 165X113MA

Spring, Extension

$6.99

$

Usually ships in 2-12 days

0

31

Murray 009X39MA

Shoulder Bolt

$6.49

$

In Stock, Qty 6

0

32

Murray 92817

Spacer

$

$

Not available

33

Murray 091712 Z

Latch, Parking Brake

$

$

Currently unavailable

34

Murray 92814E701

Pedal Assembly

$

$

Currently unavailable

35

Murray 92800 Z

Clutch Rod

$

$

Currently unavailable

36

Murray 015X41MA

Nut, Flange

$5.49

$

Usually ships in 2-12 days

0

37

Murray 165X114

Spring, Extension

$3.99

$

Usually ships in 2-12 days

0

38

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

39

Murray 91862E701

Pedal Lever Assembly

$

$

Not available

40

Murray 092694E701MA

Plate, Belt Guide

$23.99

$

Usually ships in 2-12 days

0

41

Murray 091754 Z

Screw, Guide

$

$

Currently unavailable

42

Murray 020619 Z

Screw, Guide

$

$

Currently unavailable

43

Murray 92810E701

Support, Pivot Bracket

$

$

Currently unavailable

44

Murray 091178

Idler Pulley

$

$

Not available

45

Murray 091179MA

Idler Pulley

$17.99

$

In Stock, Qty 16

0

46

Murray 091713E701

Support, Pedal

$54.99

$

Usually ships in 2-12 days

0

47

Murray 037X83MA

V- Belt

$31.99

$

Usually ships in 2-12 days

0

48

Murray 165X86MA

Spring, Extension

$

$

Not available

49

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

50

Transaxle **

$

$

Not available

51

Murray 92820 Z

Rod, Dump Valve

$

$

Currently unavailable

52

Murray 092290601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

53

Murray 092374MA

Tire *

Note: (Included with Ref. No. 52)

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

Note: (Included with Ref. No. 52)

$68.99

$

Usually ships in 2-12 days

0

54

Murray 021553MA

Square Key

$4.99

$

In Stock, only 2 left!

0

55

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

56

Murray 690554 Z

Spacer, Wheel
(Superseded to 690554ZMA)

$17.99

$

In Stock, only 2 left!

0

57

Murray 009X42MA

Shoulder Bolt
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

58

Murray 92804E701

Strap, Torque (Right)

$

$

Currently unavailable

59

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

60

Murray 92857 Z

Clip, Brake

$

$

Currently unavailable

61

Murray 92803E701

Strap, Torque (Left)

$

$

Currently unavailable

62

Murray 092809 Z

Bracket, Pivot

$

$

Currently unavailable

63

Murray 01X154

Shoulder Bolt

$

$

Currently unavailable

64

Murray 92812 Z

Rod, Primary Control

$

$

Currently unavailable

65

Murray 024582MA

Hub Cap

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0

66

Murray 0011X3MA

E- Ring

$5.49

$

In Stock, Qty 20+

0

67

Murray 17X115MA

Washer

$6.99

$

Usually ships in 2-12 days

0

68

Murray 024373MA

Valve Stem

$

$

Not available

69

Murray 165X111MA

Spring, Extension

$35.99

$

Usually ships in 2-12 days

0
