42827x99B - Briggs & Stratton 42" Lawn Tractor (1996) (AAFES) Motion Drive Parts Diagram

42" Lawn Tractor

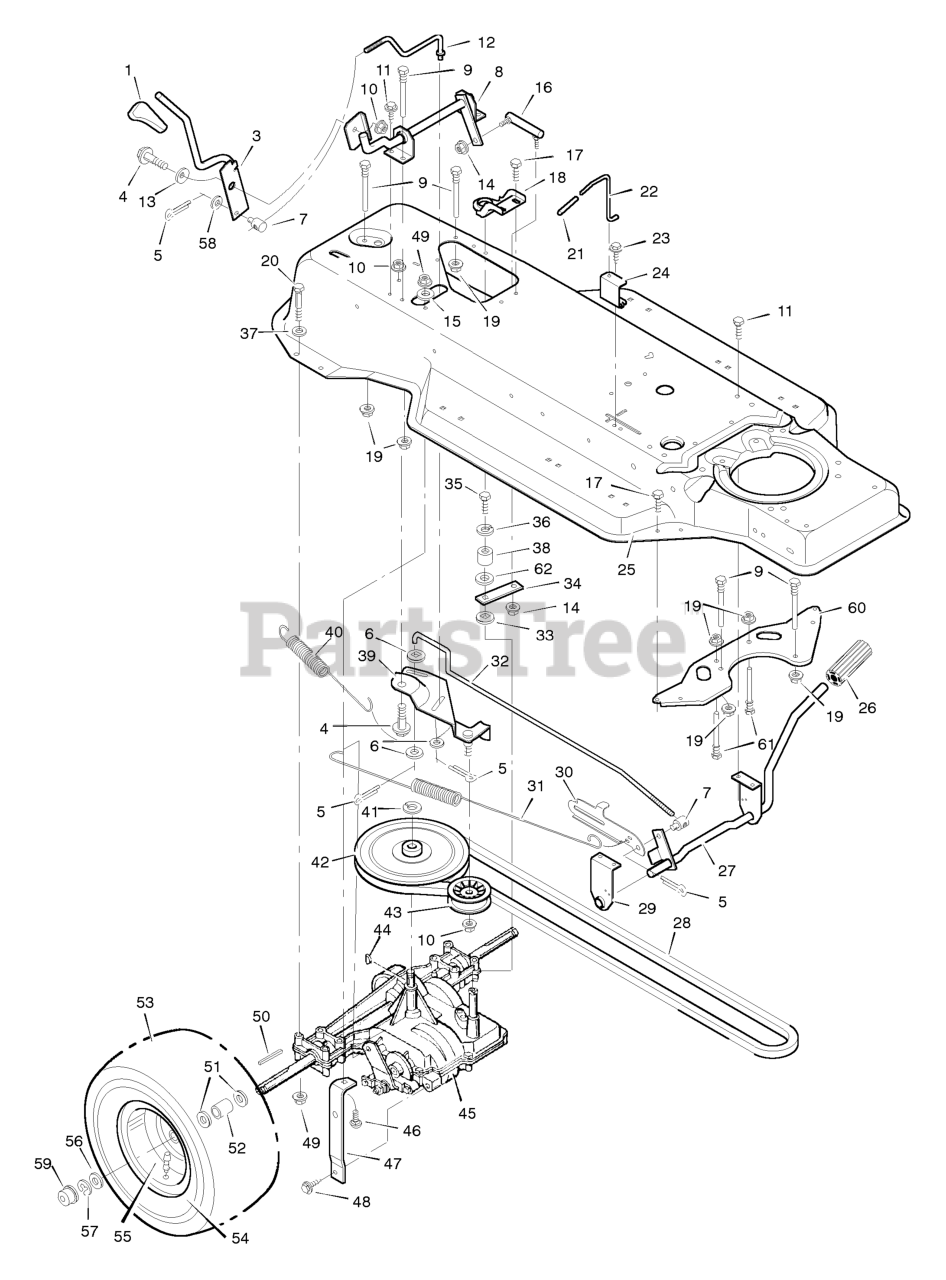

Motion Drive Parts Diagram

  • Title
1

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

3

Murray 092031 Z

Handle, Shift

$

$

Currently unavailable

4

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

5

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

6

Murray 17X472

Washer

$

$

Currently unavailable

7

Murray 021920ZMA

Nut, Adjustable

$17.99

$

Usually ships in 2-12 days

0

8

Murray 92043E701

Shifter Assembly

$

$

Not available

9

Murray 091754MA

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

10

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

$

$

Not available

12

Murray 091877

Link, Clutch

$

$

Currently unavailable

13

Murray 0020X1

Washer, Curved

$6.49

$

Usually ships in 2-12 days

0

14

Murray 015X87

Locknut, Flange

$4.49

$

In Stock, only 1 left!

0

15

$

$

Not available

16

Murray 092085

Link Assembly, Shifter

$

$

Currently unavailable

17

$

$

Not available

18

Murray 091899 Z

Bracket, Support

$

$

Currently unavailable

19

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Murray 01X124

Bolt, Hex

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Murray 91727E701

Rod, Control

$

$

Currently unavailable

23

$4.49

$

Usually ships in 2-12 days

0

24

Murray 91825E701

Guide, Bracket

$

$

Currently unavailable

25

Murray 092815F200

Frame Assembly

$

$

Currently unavailable

26

Murray 021544MA

Pedal, Clutch/Brake
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

27

Murray 91862E701

Lever Assembly

$

$

Not available

28

Murray 037X61AMA

Belt, Motion Drive

$34.99

$

In Stock, Qty 17

0

29

Murray 091713E701

Bracket, Lever Support

$54.99

$

Usually ships in 2-12 days

0

30

Murray 917122

Latch, Park Brake

$

$

Currently unavailable

31

Murray 165X82MA

Spring, Brake Extension

$48.99

$

Usually ships in 2-12 days

0

32

Murray 918082

Rod, Clutch

$

$

Currently unavailable

33

$3.99

$

Usually ships in 2-12 days

0

34

Murray 092041 Z

Yoke, Shift

$

$

Currently unavailable

35

Murray 01X145MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

36

Murray 018X32MA

Lockwasher

$3.49

$

Usually ships in 2-12 days

0

37

$

$

Currently unavailable

38

Murray 091889

Pilot, Support

$3.99

$

Usually ships in 2-12 days

0

39

Murray 092737 Z

Bracket Assembly, Idler

$

$

Currently unavailable

40

Murray 165X76

Spring, Motion Drive

$12.99

$

Usually ships in 2-12 days

0

41

Murray 0011X7MA

Ring, Retainer

$3.99

$

In Stock, only 4 left!

0

42

Murray 091807

Pulley, Motion Drive

$

$

Currently unavailable

43

Murray 091179MA

Pulley, Backside Idler

$17.99

$

In Stock, Qty 16

0

44

Murray 020697MA

Key, Woodruff

$3.99

$

Usually ships in 2-12 days

0

45

Transaxle, Peerless **

$

$

Not available

46

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

47

Murray 91804E701

Support, Transaxle

$

$

Not available

48

$6.99

$

In Stock, Qty 5

0

49

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

50

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

51

$4.99

$

In Stock, Qty 20+

0

52

Murray 87X100 Z

Spacer, Transaxle

$

$

Currently unavailable

53

Murray 092374MA

Tire *

Note: (Included with Ref. No. 54)

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

Note: (Included with Ref. No. 54)

$68.99

$

Usually ships in 2-12 days

0

54

Murray 092290601

Wheel and Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

55

Murray 024373MA

Valve Stem

$

$

Not available

56

$6.99

$

Usually ships in 2-12 days

0

57

Murray 0011X3MA

E- Ring

$5.49

$

In Stock, Qty 17

0

58

Murray 17X532

Washer

$

$

Currently unavailable

59

Murray 024582MA

Hub Cap

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0

60

Murray 092694E701MA

Plate, Belt Guide

$23.99

$

Usually ships in 2-12 days

0

61

Murray 020619MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

62

$6.99

$

Usually ships in 2-12 days

0
