4264 A99 - Electrolux/AYP Walk-Behind Mower (1999) ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

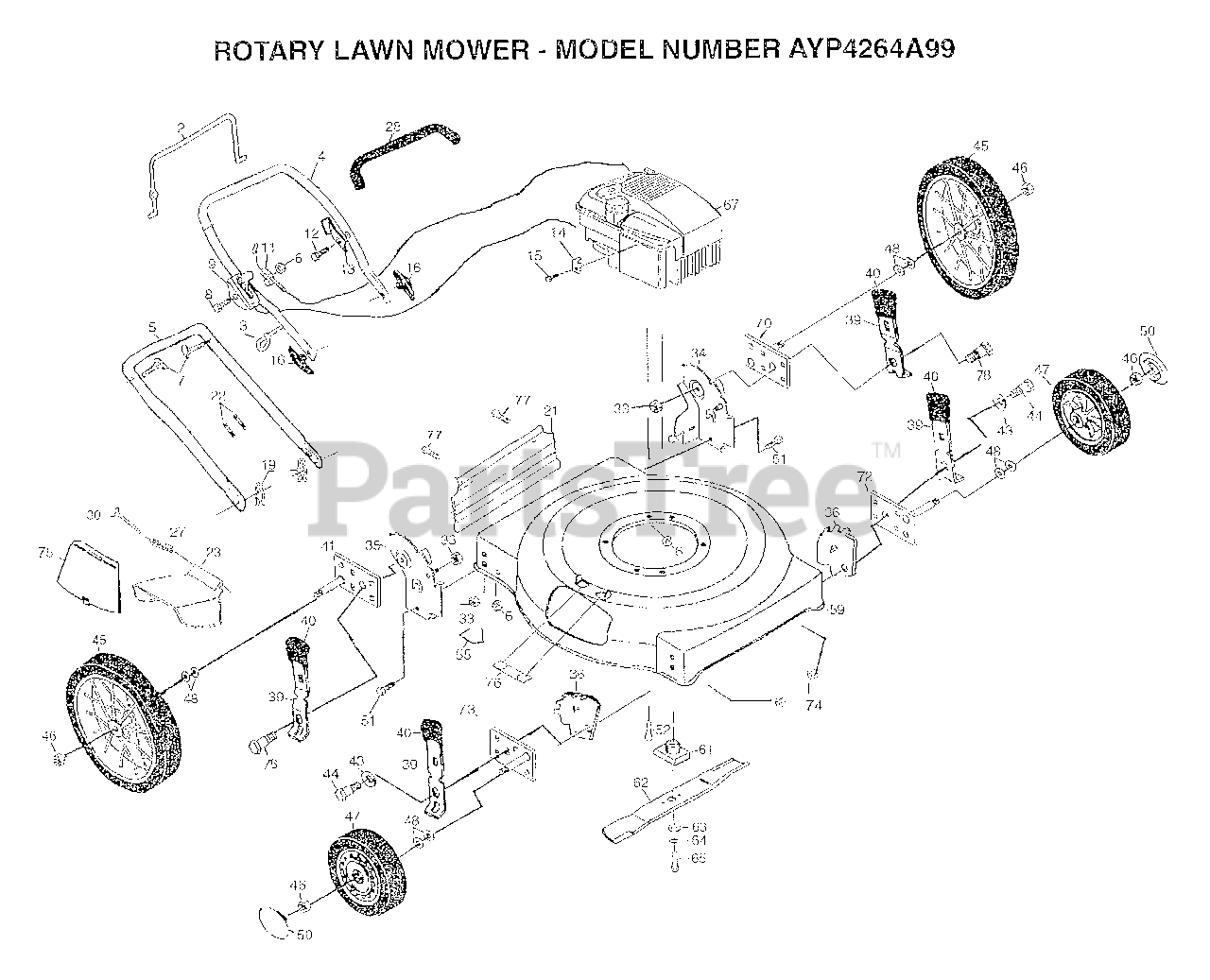

ROTARY LAWN MOWER Parts Diagram

  • Title
2

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

3

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 164287

UPPER HANDLE
(Superseded to 583012501)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 160609X479

LOWER HANDLE
(Superseded to 532174291)

$

$

Not available

6

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

7

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

8

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 700637

CONTROL.THRT.45.6
(Superseded to 532700637)

$

$

Not available

11

Electrolux/AYP 701181

CABLE.MZR.48.5
(Superseded to 532851671)

$

$

Not available

12

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

13

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

15

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 136376

KNOB HANDLE
(Superseded to 532183724)

$

$

Not available

19

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 165858

"SKIRT.REAR.22SD/ECON.21"""
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 160831

GUARD.DISCHARGE
(Superseded to 532160831)

$

$

Not available

27

Electrolux/AYP 160832

HINGE.SPRING
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

30

Electrolux/AYP 160833

HINGE.ROD.22SD
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 63124

SUB= 73690500

$

$

Not available

34

Electrolux/AYP 168162X459

SUB= 168162X479
(Superseded to 583053301)

$54.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 168163X459

SUB= 168163X479
(Superseded to 583053301)

$54.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 160835X007

WHEEL.BRKT.ADJ.
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 168360X004

SPRING.SELECTOR.5/9POS
(Superseded to 532168360)

$

$

Not available

40

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 167134X004

ASM.AXLE.ARM.
(Superseded to 169663)

$

$

Not available

43

Electrolux/AYP 19112222

WASHER.BELLEVELLE
(Superseded to 819112206)

$5.99

$

In Stock, Qty 5

0

44

Electrolux/AYP 160828

SHOULDER BOLT
(Superseded to 532160828)

$

$

Not available

45

Electrolux/AYP 107620X

WHEEL & TIRE PM

$

$

Not available

46

Electrolux/AYP 83923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 107795X

WHEEL & TIRE PM

$

$

Not available

48

Electrolux/AYP 57143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

50

Electrolux/AYP 134873

HUB CAP
(Superseded to 582064301)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 74760514

BOLT
(Superseded to 874760514)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 150406

BOLT.ENG.3/8-16
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 85463

DECAL-DANGER PM
(Superseded to 582940001)

$4.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 163945

LAWN MOWER HOUSING

$107.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 141114

"BLADE.MULCH.22"""
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

63

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

64

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

67

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

70

Electrolux/AYP 167135X004

AXLE.ARM.ASSY.LR
(Superseded to 169662)

$

$

Not available

72

Electrolux/AYP 167132X004

ARM.ASM.AXLE.RR/LF.
(Superseded to 532186577)

$

$

Not available

73

Electrolux/AYP 167133X004

ARM.ASM.AXLE.LR/RF
(Superseded to 532186578)

$

$

Not available

74

Electrolux/AYP 751153

LOCKNUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

75

Electrolux/AYP 160830

MULCHER PLATE
(Superseded to 532160830)

$

$

Not available

76

Electrolux/AYP 161622

CLIP.CLOSECUT.22SD
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

77

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

78

Electrolux/AYP 164362

SHOULDER.BOLT
(Superseded to 532164362)

$

$

Not available

Electrolux/AYP 167084

OWNER'S MANUAL

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP GCK3300

GRASS CATCHER KIT
(Superseded to 954140099)

$49.99

$

Usually ships in 3-10 days

0
