4262 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) Housing And Shroud Group Model: 8244 Parts Diagram

Walk-Behind Mower

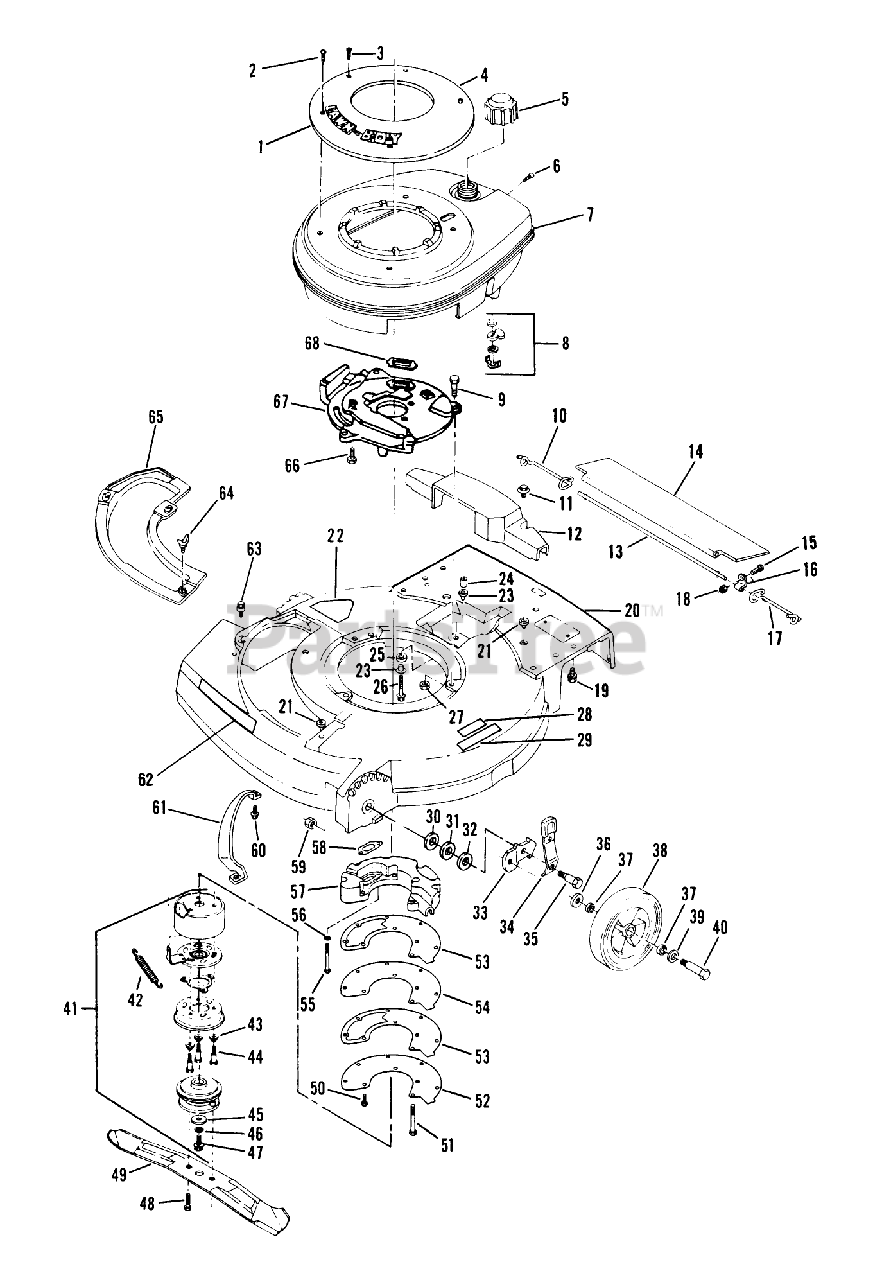

Housing And Shroud Group Model: 8244 Parts Diagram

  • Title

1

Lawn-Boy 613092

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

3

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

4

Lawn-Boy 683957

See Supercession: 684301
(Superseded to 684301)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 683916

See Supercession: 16-5539
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611297

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608174

ROD 21" ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611262

SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

In Stock, Qty 5

0

15

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 607188

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

20

Lawn-Boy 682787

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

23

Lawn-Boy 607605

SPACER ECK PRES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 609588

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 307417

GROMMET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611595

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 145252

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 609961

PAD FOOT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 146014

WASHER

Note: Use as required to adjust wheel wobble.

$

$

Not available

32

Lawn-Boy 146015

WASHER

Note: Use as required to adjust wheel wobble.

$3.49

$

In Stock, only 1 left!

0

32

Lawn-Boy 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

41

Lawn-Boy 683098

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611415

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$67.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 611418

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611399

SCREW,SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611412

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 611413

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 611417

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611398

SCREW SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 683683

21" Blade

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

50

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

51

Lawn-Boy 613172

See Supercession: 32144-57
(Superseded to 32144-57)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 613171

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 613175

GASKET F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$62.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 613174

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 133022

See Supercession: 322-20
(Superseded to 322-20)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 306453

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 613170

DISCONTINUED
(Superseded to 684089)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 613173

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

60

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

61

Lawn-Boy 608175

BAR-TOE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 613036

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

64

Lawn-Boy 696733

Wing Screw

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

65

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 3 left!

0

66

Lawn-Boy 611373

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0
