4262 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) Handle Group Model: 5254 Parts Diagram

Walk-Behind Mower

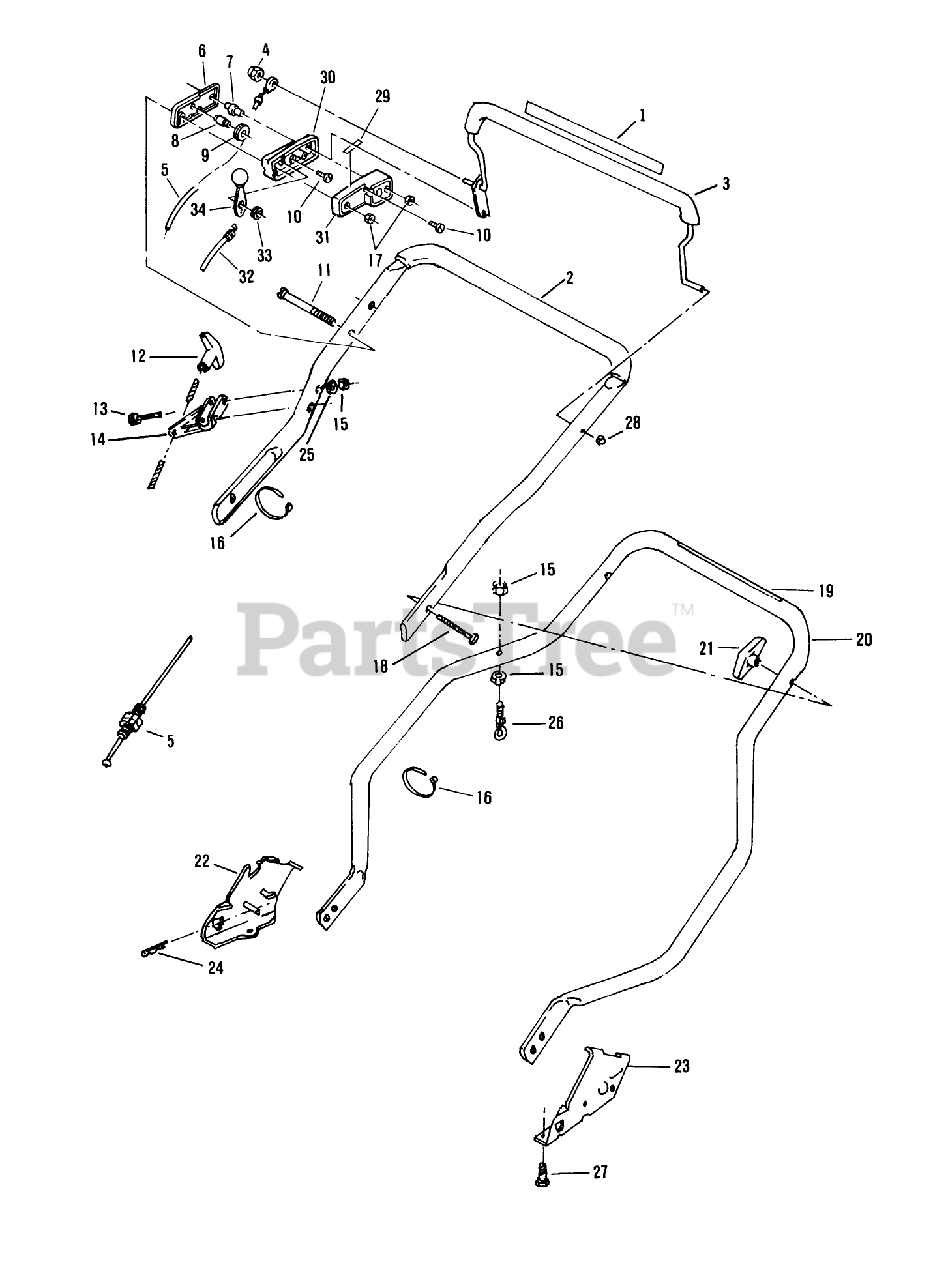

Handle Group Model: 5254 Parts Diagram

  • Title

1

Lawn-Boy 612651

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611250

See Supercession: 612683
(Superseded to 612683)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683727

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 683041

CONTROL CABLE WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611782

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611541

COLUMN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611542

PIN SKF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611543

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

11

Lawn-Boy 611799

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 611184

BOLT QUALITY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, only 2 left!

0

19

Lawn-Boy 612579

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 612788

DISCONTINUED
(Superseded to 613363)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

22

Lawn-Boy 682715

See Supercession: 683926-03
(Superseded to 683926-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 682714

See Supercession: 683925-03
(Superseded to 683925-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 607188

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

29

Lawn-Boy 612568

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 612569

DISCONTINUED
(Superseded to 612633)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 612571

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 612588

CABLE THROT WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$60.99

$

In Stock, only 4 left!

0

33

Lawn-Boy 612586

WASHER-SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

34

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
