4262 - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) Housing And Shroud Group Model: 8461 Parts Diagram

Walk-Behind Mower

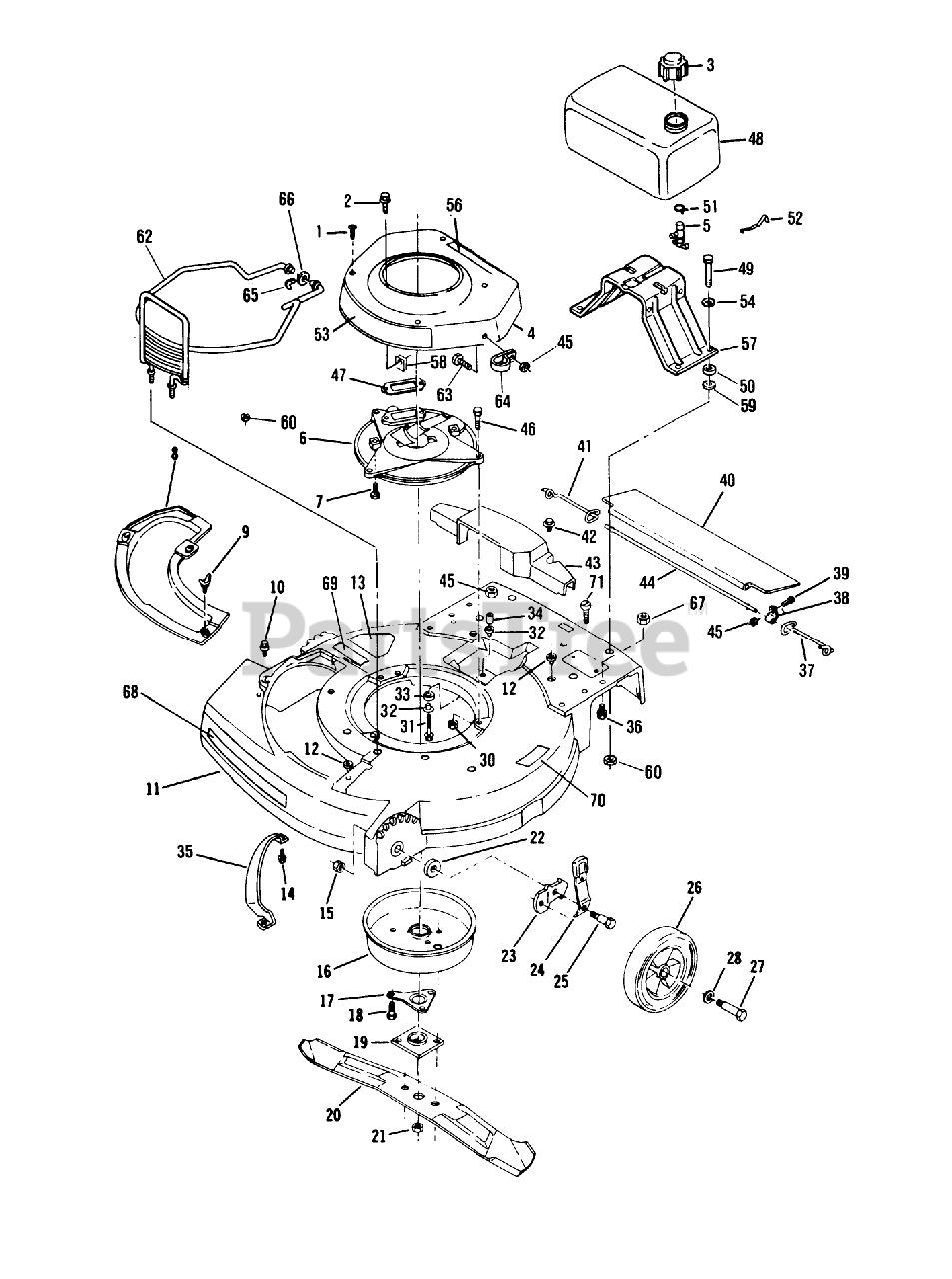

Housing And Shroud Group Model: 8461 Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 11

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 683638

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 677052

VALVE&SCREEN SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 611802

PLATE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 606733

WING SCREW LAWRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

10

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

11

Lawn-Boy 683807

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 13

0

13

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

14

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

19

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 683682

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 681979

WHEEL & TIRE ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 603567

BOLT-SHOULDER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$13.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 611595

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 607605

SPACER ECK PRES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 307417

GROMMET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 609588

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 608175

BAR-TOE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 610295

SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611239

COVER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 608174

ROD 21" ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

46

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

47

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

48

Lawn-Boy 609829

See Supercession: 145476
(Superseded to 145476)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 606144

BOLT PIONEER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 604995

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 312387

CLAMP - HOSE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

52

Lawn-Boy 609830

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

53

Lawn-Boy 612754

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 609923

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 612753

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 610433

See Supercession: 612686
(Superseded to 612686)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 145945

PUSHNUT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

62

Lawn-Boy 683808

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

64

Lawn-Boy 611504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 606116

WASHER SPRING LAR

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 612853

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 612879

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 612880

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 602175

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
