4262 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Housing And Shroud Group Model: 8073 Parts Diagram

Walk-Behind Mower

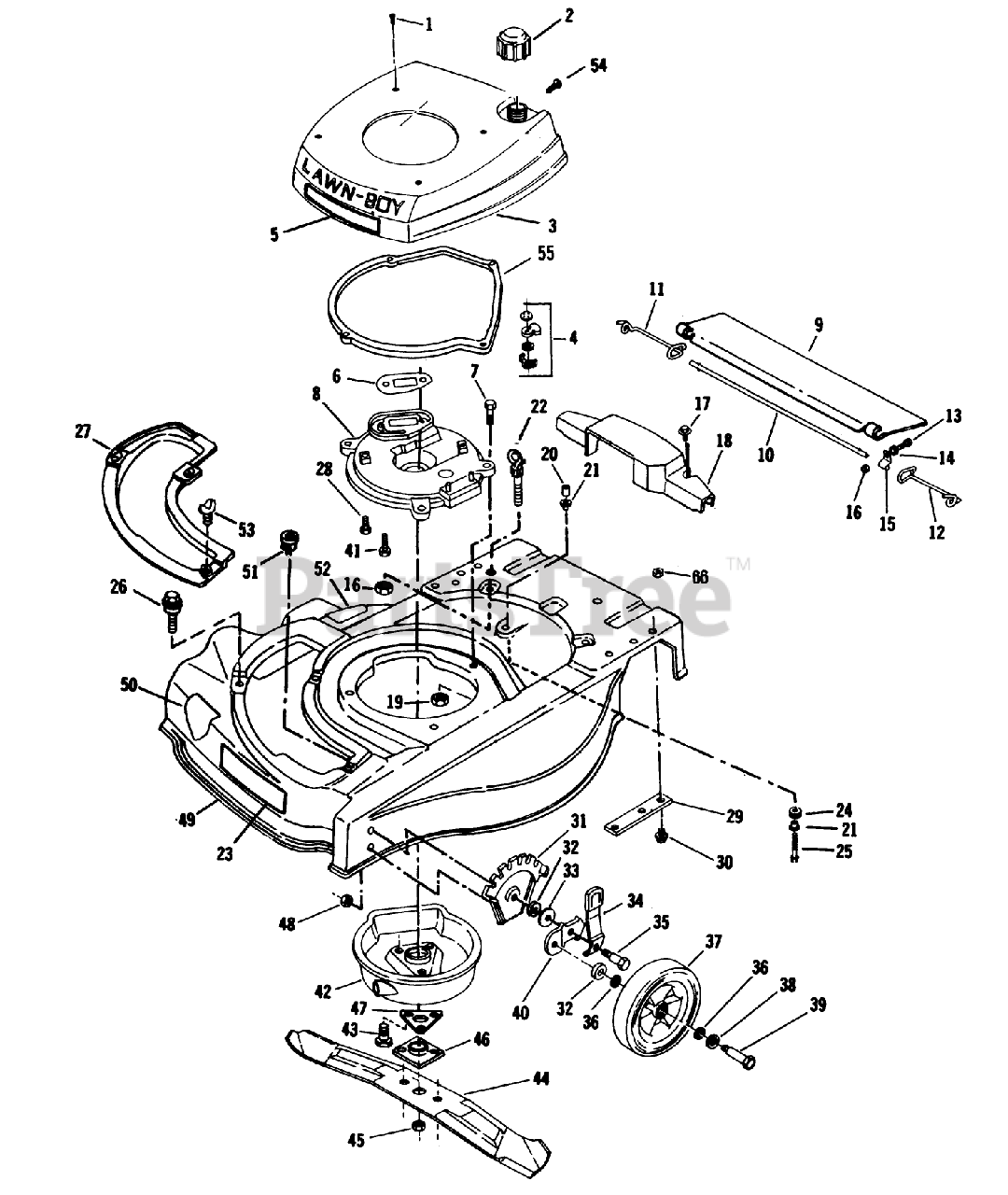

Housing And Shroud Group Model: 8073 Parts Diagram

  • Title
1

Lawn-Boy 611381

SCREW LAWRENCE

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Includes 607213 Gasket 609150 Baffle (Parts not shown).

$25.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 683256

See Supercession: 684413
(Superseded to 684413)

$

$

Not available

4

Lawn-Boy 683034

DISCONTINUED

$

$

Not available

5

Lawn-Boy 612770

DISCONTINUED

$

$

Not available

6

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

$11.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611774

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 609989

PLATE,MUFFLER F

$161.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611263

DISCONTINUED

$

$

Not available

10

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

$

$

Not available

11

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

$

$

Not available

12

Lawn-Boy 608498

SPRIG T/SHLD ASOC

$

$

Not available

13

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

14

Lawn-Boy 610556

Washer-Trailing Shield

$

$

Currently unavailable

15

Lawn-Boy 608161

CLAMP ROD KMC

$11.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

$

$

Not available

18

Lawn-Boy 611297

DISCONTINUED

$

$

Not available

19

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

Usually ships in 3-6 days

0

20

$5.49

$

Usually ships in 3-6 days

0

21

Lawn-Boy 607605

SPACER ECK PRES

$

$

Not available

22

Lawn-Boy 611243

BOLT-EYE

$20.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 611579

DISCONTINUED

$

$

Not available

24

Lawn-Boy 610145

DISCONTINUED

$

$

Not available

25

Lawn-Boy 611595

DISCONTINUED

$

$

Not available

26

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

$4.49

$

In Stock, Qty 12

0

27

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

$36.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 609994

DISCONTINUED

$

$

Not available

29

Lawn-Boy 610827

DISCONTINUED

$

$

Not available

30

$3.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 610826

PLATE HGT ADJ TRO

$

$

Not available

32

Lawn-Boy 603620

WASHER WROUGHT

$5.99

$

In Stock, Qty 20+

0

33

$14.99

$

In Stock, only 2 left!

0

34

Lawn-Boy 682231

KNOB&SPRING FORMCO

$29.99

$

Usually ships in 3-6 days

0

35

$7.49

$

Usually ships in 3-6 days

0

36

$1.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 678636

WHEEL & TIRE KIT

$28.99

$

In Stock, only 1 left!

0

38

$2.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 603441

BOLT WHEEL

$7.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

$27.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 607601

SCREW V

$4.49

$

In Stock, only 2 left!

0

42

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

$

$

Not available

43

$4.99

$

In Stock, Qty 14

0

44

Lawn-Boy 682915

See Supercession: 612543-03
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

45

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

46

Lawn-Boy 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 609980

SUPPORT F

$

$

Not available

48

Lawn-Boy 603773

LOCKNUT

$2.99

$

In Stock, Qty 8

0

49

Lawn-Boy 683509

See Supercession: 684512
(Superseded to 684512)

$

$

Not available

50

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

$6.99

$

In Stock, Qty 6

0

51

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 9

0

52

Lawn-Boy 610860

DISCONTINUED

$

$

Not available

53

Lawn-Boy 606733

WING SCREW LAWRE

$9.99

$

In Stock, Qty 6

0

54

Lawn-Boy 608997

SCREW S

$2.49

$

In Stock, only 2 left!

0

55

Lawn-Boy 611379

DISCONTINUED

$

$

Not available

57

Lawn-Boy 311505

DISCONTINUED

$

$

Not available
