4261 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Housing And Shroud Group Model: 8241 Parts Diagram

Walk-Behind Mower

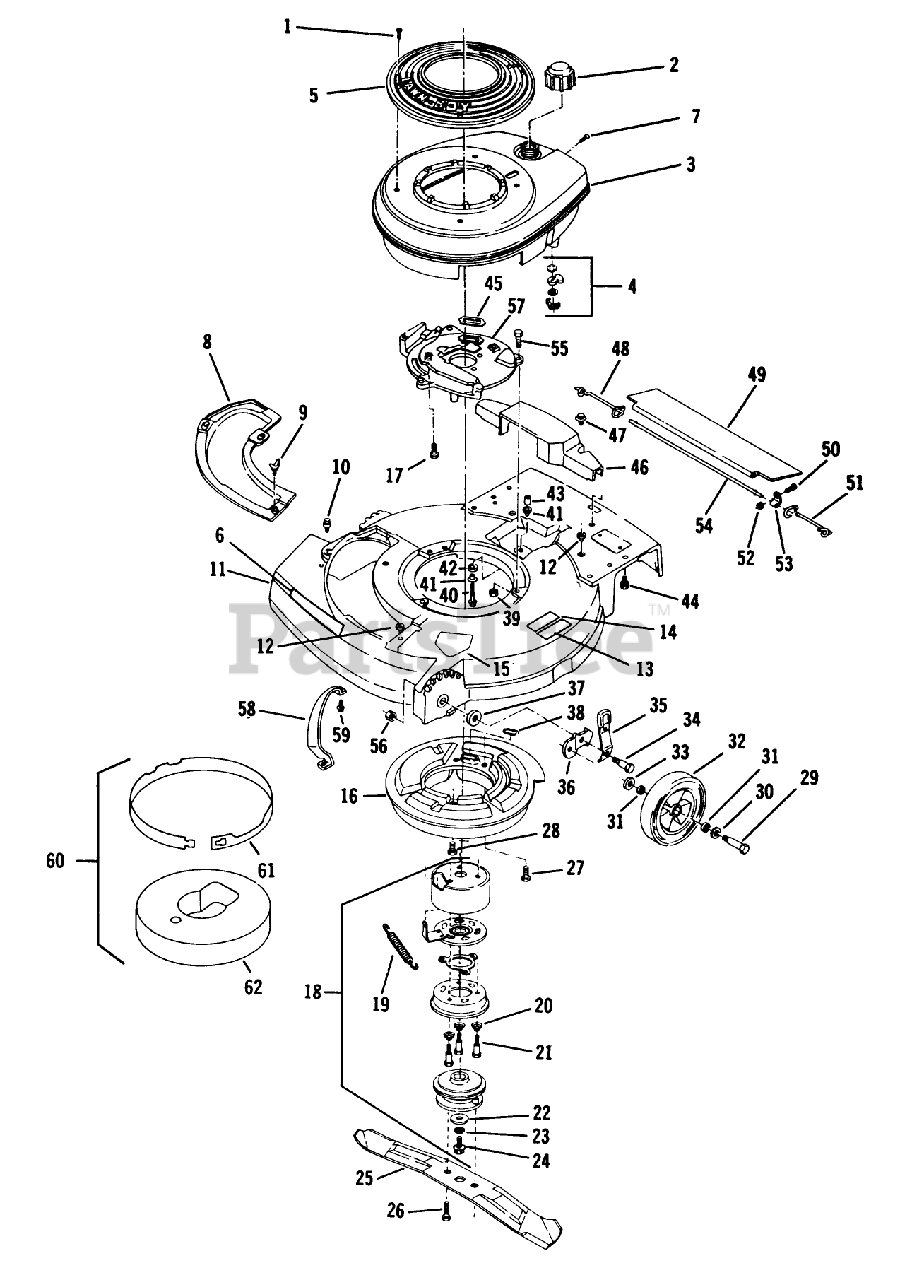

Housing And Shroud Group Model: 8241 Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Includes 607213 Gasket and 609150 Baffle (Parts Not Shown).

$21.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 682802

See Supercession: 16-5539
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 611383

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611581

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 606733

WING SCREW LAWRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

10

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

11

Lawn-Boy 682787

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 14

0

13

Lawn-Boy 609961

PAD FOOT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 145252

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

16

Lawn-Boy 682798

DISCONTINUED
(Superseded to 684089)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 683098

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611415

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 611418

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611399

SCREW,SHOULDER SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 611412

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$30.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 611413

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 611417

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 682917

See Supercession: 612540-03
(Superseded to 612540-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$38.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611398

SCREW SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 611394

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

29

Lawn-Boy 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

31

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 678636

WHEEL & TIRE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 681229

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 611397

SEAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 611595

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 607605

SPACER ECK PRES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 307417

GROMMET

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 609588

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

44

Lawn-Boy 607188

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

45

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

46

Lawn-Boy 611297

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 611262

SHIELD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$35.99

$

In Stock, Qty 5

0

50

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

53

Lawn-Boy 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 608174

ROD 21" ADVANCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

56

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

57

Lawn-Boy 611373

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 608175

BAR-TOE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

60

Lawn-Boy 683279

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 611970

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 611969

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
