4261 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Handle Group Models: 8035 Parts Diagram

Walk-Behind Mower

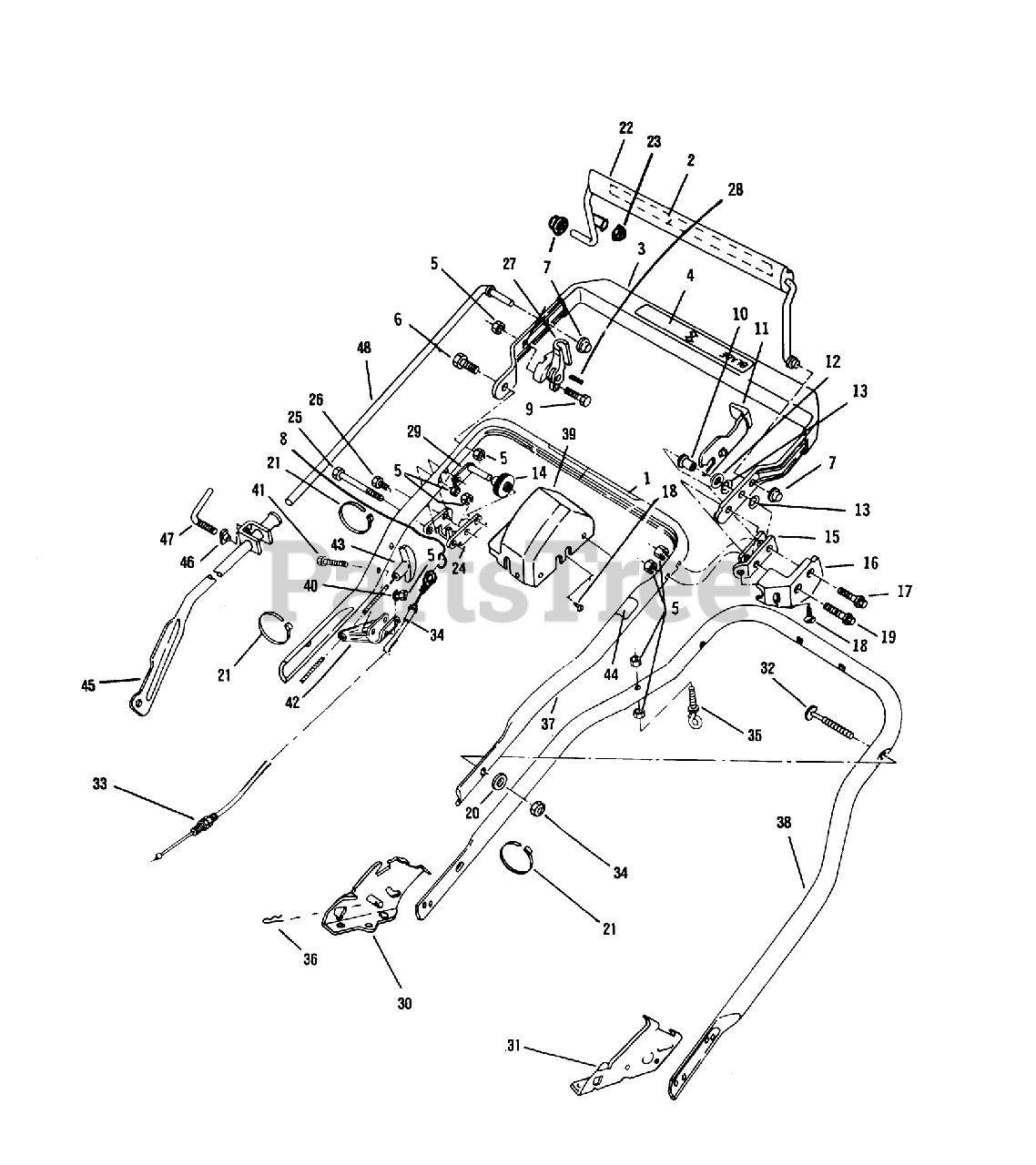

Handle Group Models: 8035 Parts Diagram

  • Title

1

Lawn-Boy 611238

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611244

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683511

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 611237

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 611202

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611222

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611203

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611219

DISCONTINUED
(Superseded to 612657)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 306359

WASHER M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 611195

See Supercession: 612564
(Superseded to 612564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611221

DOWN STOP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611218

LOCKOUT GUARD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611220

BOLT SHOU

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 606537

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

19

Lawn-Boy 611217

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

21

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

22

Lawn-Boy 683429

DISCONTINUED
(Superseded to 683728)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611196

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611228

BOLT-CONSOLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 683430

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 612160

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 309301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 682736

BRACKET ASM - HANDLE, SP, RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$93.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 682737

BRACKET ASM - HANDLE, SP, LH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 682685

CONTROL CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 611571

EYE BOLT WAS MFG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 612320

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 612321

DISCONTINUED
(Superseded to 612787)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612319

DISCONTINUED
(Superseded to 612638)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 682684

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611340

HANDLE,STARTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611236

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 682687

See Supercession: 683812
(Superseded to 683812)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 602992

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 603699

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611229

CONTROL ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

Lawn-Boy 607561

ROD GRASSBAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 607561

ROD GRASSBAG

Note: Used for Model 8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: Used for Model 8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: Used for Model 8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 609691

HANGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 609691

HANGER

Note: Used for Model R8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 609692

BRACKET R/B 613462

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 609692

BRACKET R/B 613462

Note: Used for Model R8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 682765

HANGER AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$134.99

$

Usually ships in 3-6 days

0

Lawn-Boy 682765

HANGER AY

Note: Used for Model R8035 (Parts Not Shown).

$134.99

$

Usually ships in 3-6 days

0

Lawn-Boy 681917

See Supercession: 99-5223
(Superseded to 99-5223)

Note: Used for Model R8035 (Parts Not Shown).

$

$

Not available

Lawn-Boy 681917

See Supercession: 99-5223
(Superseded to 99-5223)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683355

DISCOUNTED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683355

DISCOUNTED

Note: Used for Model R8035B (Parts Not Shown).

$

$

Not available

Lawn-Boy 683356

DISCONTINUED

Note: Used for Model R8035B (Parts Not Shown).

$

$

Not available

Lawn-Boy 683356

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
