426 LST - Husqvarna String Trimmer (2010-01) Drive Unit Parts Diagram

String Trimmer

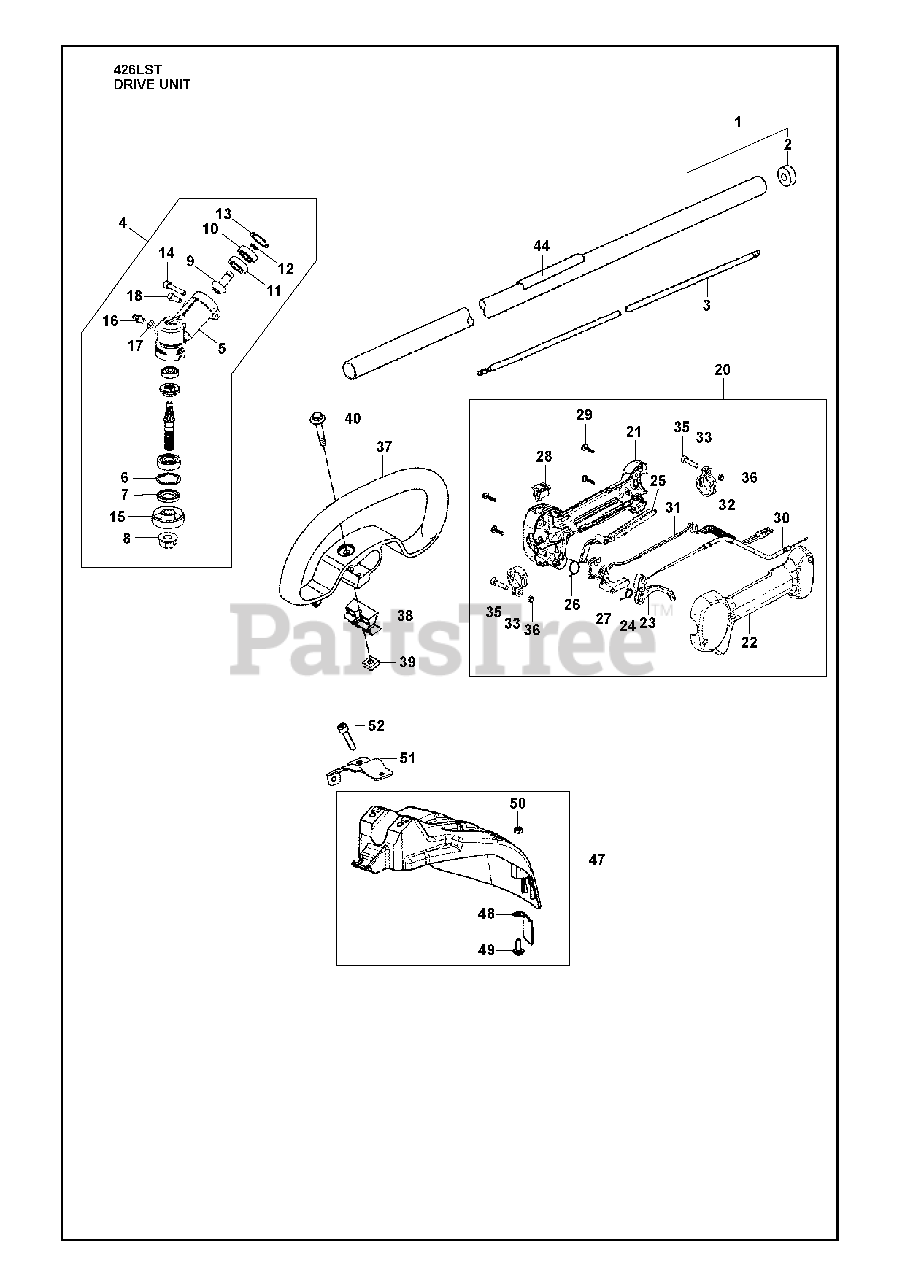

Drive Unit Parts Diagram

  • Title

1

Husqvarna 528868901

PIPE COMP

$66.99

$

In Stock, only 3 left!

0

2

Husqvarna 521825401

SEAL

$4.99

$

In Stock, Qty 5

0

3

Husqvarna 528839601

SHAFT

$48.99

$

Usually ships in 3-10 days

0

4

Husqvarna 528840301

GEAR CASE ASSY
(Superseded to 584928801)

$182.99

$

In Stock, only 2 left!

0

5

Husqvarna 528839701

GEAR CASE

$51.92

$

Usually ships in 3-10 days

0

6

Husqvarna 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 514382501

SEAL

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 521804001

NUT

$4.99

$

In Stock, Qty 12

0

9

Husqvarna 528840101

PINION

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

Husqvarna 521825701

BALL BEARING
(Superseded to 516127601)

$9.99

$

In Stock, Qty 5

0

12

Husqvarna 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505169401

RP_RING
(Superseded to 516125401)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 512845701

BOLT TORX

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 528840201

HOLDER-A

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

17

Husqvarna 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 575385101

GRIP

$79.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574390601

BODY RIGHT

$62.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574390701

BODY LEFT

$62.99

$

Usually ships in 3-10 days

0

23

Husqvarna 575385201

LEVER THROTTLE

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 529259601

SPRING, THROTTLE

$7.49

$

In Stock, Qty 12

0

25

Husqvarna 575385301

LEVER SAFETY

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574390801

SPRING JOINT
(Superseded to 511591801)

$3.49

$

In Stock, Qty 10

0

27

Husqvarna 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 521851601

SWITCH

$11.99

$

In Stock, only 2 left!

0

29

Husqvarna 521517701

SCREW

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

31

Husqvarna 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

35

Husqvarna 504114301

BOLT
(Superseded to 506689001)

$6.49

$

In Stock, Qty 11

0

36

Husqvarna 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

37

Husqvarna 503871904

HANDLE

$37.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503940302

SPACER

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 502197101

NUT

$8.99

$

In Stock, Qty 20+

0

40

Husqvarna 510906101

BOLT

$6.49

$

In Stock, Qty 10

0

47

Husqvarna 575384101

GUARD ASSY
(Superseded to 578403402)

$44.99

$

In Stock, only 3 left!

0

48

Husqvarna 574395601

BLADE

$6.99

$

In Stock, Qty 20+

0

49

Husqvarna 502843901

SCREW

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 970413901

NUT
(Superseded to 521000601)

$4.99

$

In Stock, only 4 left!

0

51

Husqvarna 521653101

BRACKET

$6.99

$

Usually ships in 3-10 days

0

52

Husqvarna 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 20+

0
