426 (190-426-100) - Cub Cadet Rear Bagger (1990) att Rear Bagger Parts Diagram

Rear Bagger

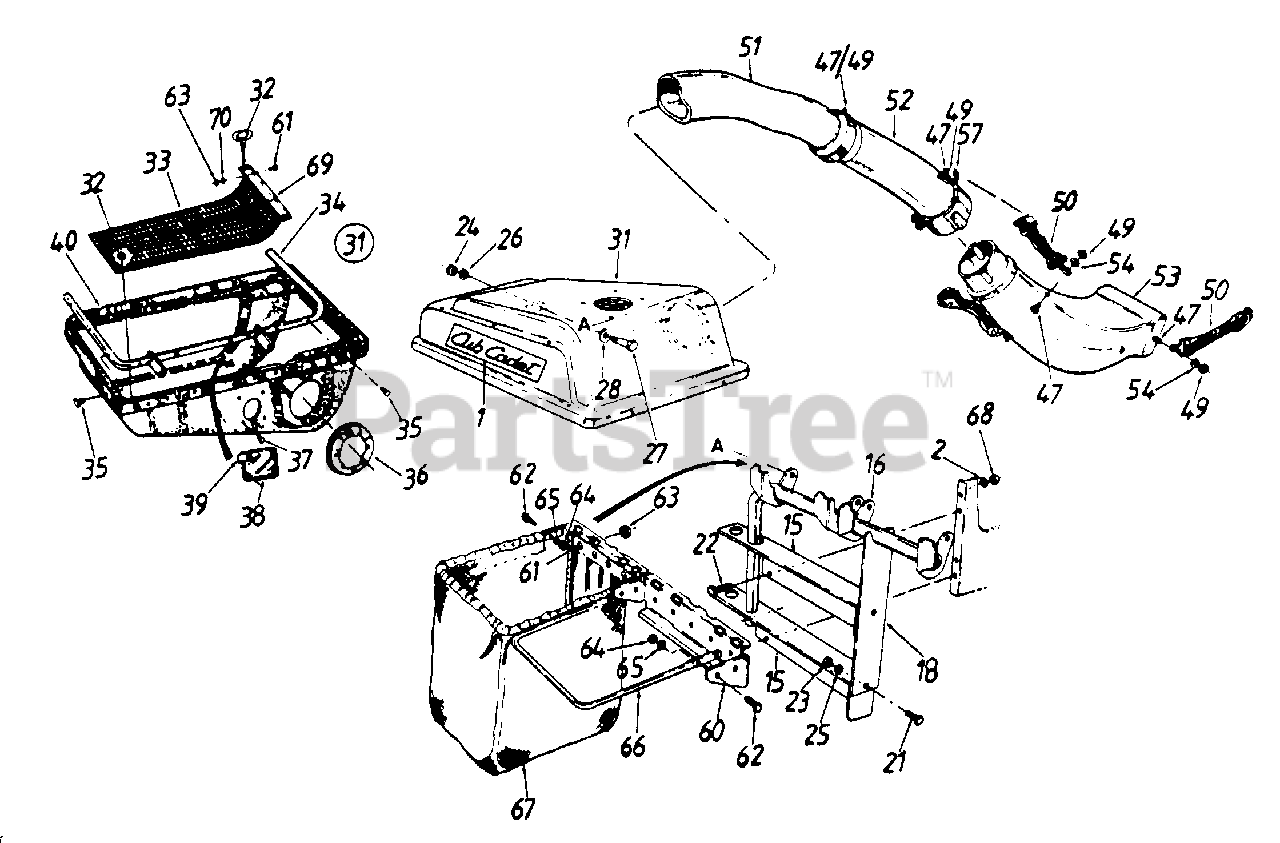

Rear Bagger Parts Diagram

  • Title

1

Cub Cadet 731-3069

PLATE-NAME-CUB CADET-BAGGER

$

$

Not available

2

Cub Cadet 736-3020

WASHER-FL-.266X.625

$6.99

$

In Stock, Qty 9

0

15

Cub Cadet 16587

BRACKET-MTG
(Superseded to 16587D-0637)

$82.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16588

TUBE ASSY-SUPPORT
(Superseded to 16592-0637)

$194.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 16593

BRACKET-SUPPORT
(Superseded to 783-0601-0637)

$35.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0751

SCREW-1/4-20 X .62

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0380

SCREW-SHLD

$7.99

$

In Stock, only 1 left!

0

28

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 16594

COVER ASSY-GRASS

$

$

Not available

32

Cub Cadet 726-0258

FASTENER-TWIST

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 723-0382

SCREEN ASSY

$

$

Not available

34

Cub Cadet 16596

BRACKET ASSY-HINGE
(Superseded to 16596-0637)

Variations

Cub Cadet 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-1005

SCREW-HEX TAP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 723-0384

SEAL
(Superseded to 723-0412)

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0351

SCREW-TRUSS MACH

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 731-0824

PLATE-PLASTIC

$

$

Not available

39

Cub Cadet 726-0244

NUT-SPEED
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 731-0821

COVER ASSY-GRASS

$

$

Not available

47

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

Cub Cadet 712-0324

NUT-INS LOCK 1/4-20

$3.99

$

In Stock, Qty 17

0

50

Cub Cadet 723-0383

STRAP ASSY-RETAINER
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

51

Cub Cadet 731-0825

ELBOW-CATCHER

$

$

Not available

52

Cub Cadet 731-0826

TUBE-CATCHER
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

53

Cub Cadet 731-3071

DISCHARGE CHUTE - W/CUTOUT

$

$

Not available

54

Cub Cadet 736-0175

WASHER-SPRING.270 ID X.51 OD X.030
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

57

Cub Cadet 16606

BRACKET-HOOK RETAIN
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

Cub Cadet 16591

BRACKET-HANGER
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-0473

SCREW-TRUSS MACH #10-24 X .50

$4.49

$

In Stock, only 2 left!

0

62

Cub Cadet 710-0412

SCREW-HEX 1/4-28 X .75

$5.99

$

In Stock, Qty 8

0

63

Cub Cadet 712-0272

NUT-SEMS 10-24

$3.99

$

In Stock, only 1 left!

0

64

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

Cub Cadet 749-0701

FRAME-GRASS BAG
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 764-0221

BAG-GRASS
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

68

Cub Cadet 712-3006

NUT-HEX 1/4-20 GR 5

$4.99

$

In Stock, Qty 19

0

69

Cub Cadet 16595

SCREEN ASSY

$

$

Not available

70

Cub Cadet 736-0400

WASHER-FL .192 X .625 X .057

$5.49

$

In Stock, Qty 14

0
