42589x8B - Scotts 42" Lawn Tractor (1999) Frame Assembly (part 1) Parts Diagram

42" Lawn Tractor

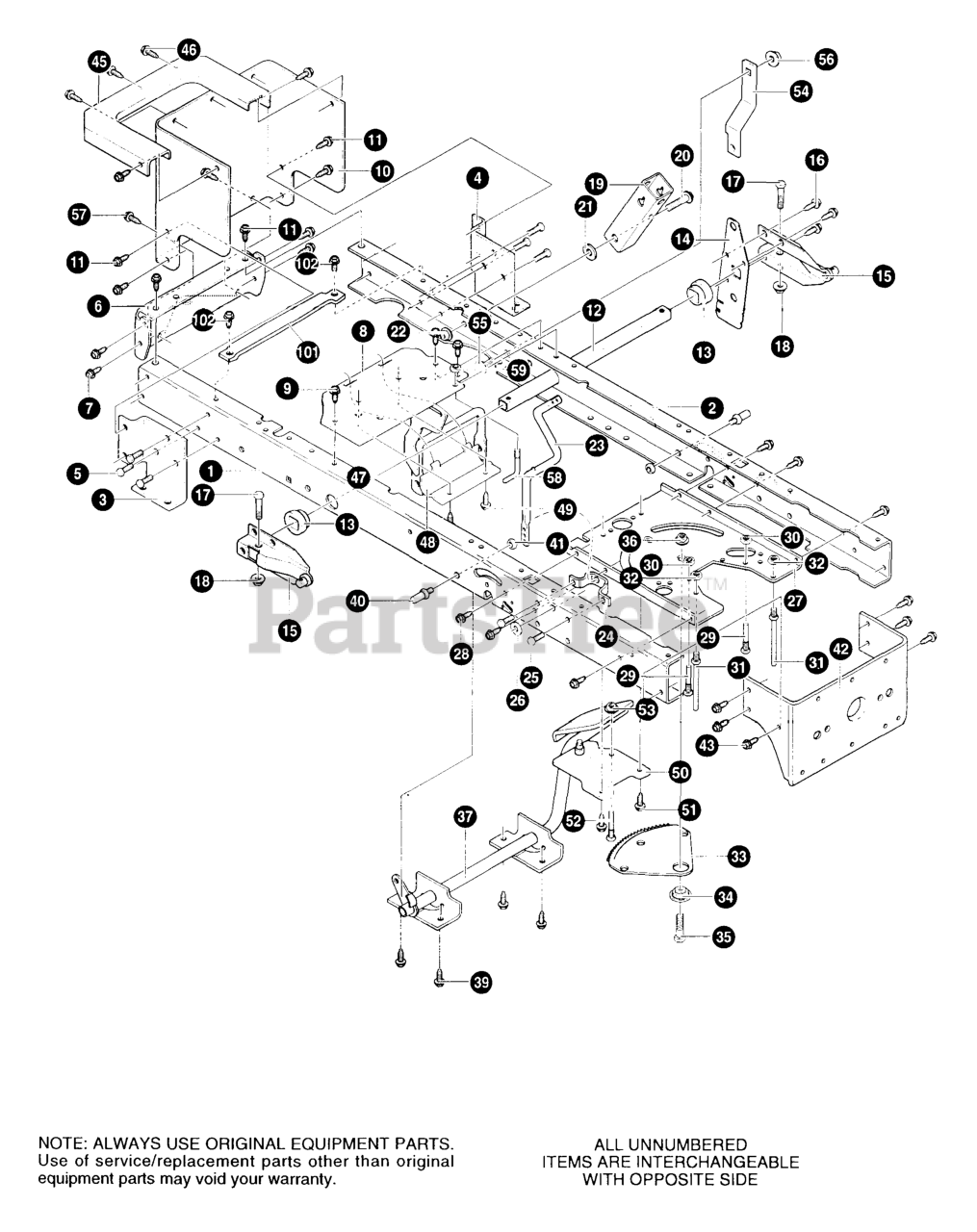

Frame Assembly (part 1) Parts Diagram

  • Title
1

Murray 95110

FRAME,RAIL RH

$

$

Currently unavailable

2

Murray 95111

FRAME,RAIL LH

$

$

Currently unavailable

3

Murray 94184

BRACKET, TRANSAXLE RH **

$

$

Currently unavailable

4

Murray 94185

BRACKET, TRANSAXLE LH **

$

$

Currently unavailable

5

Murray 710079

SCREW, 5/16-18 x .75 HHWATAP

$

$

Not available

6

Murray 94002

HITCH PLATE

$

$

Currently unavailable

7

Murray 710079

SCREW, 5/16-18 x .75 HHWATAP

$

$

Not available

8

Murray 94431

BRACKET, SHIFT RH

$

$

Currently unavailable

9

Murray 710079

SCREW 5/16-18X.75HHWATAP

$

$

Not available

10

Murray 690218

PLATE, REAR
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

11

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

12

Murray 94063

TUBE, LIFTER
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

13

Murray 094065MA

BUSHING, LIFT TUBE

$4.49

$

Usually ships in 2-12 days

0

14

Murray 94030

PLATE-LIFT ARM

$

$

Currently unavailable

15

Murray 94180

ASSY, LIFT ARM LEVER

$

$

Currently unavailable

16

Murray 710106

SCREW, 5/16-18 x 0.50 WHHTAP (26X49)

$

$

Currently unavailable

17

Murray 710310

SCREW, 5/16-24 x 1.25
(Superseded to 231652)

$7.49

$

Usually ships in 2-12 days

0

18

Murray 710080

NUT, 5/16-24 NF-2 HEXFLLK

$2.99

$

Usually ships in 2-12 days

0

19

Murray 094015

BRACKET, PIVOT

$

$

Currently unavailable

20

Murray 710000

BOLT, .562X1.563 HHSH 3/8-16

$10.99

$

Usually ships in 2-12 days

0

21

Murray 710130

FLATWASHER.406ID (17X191)

$

$

Currently unavailable

22

Murray 710140

NUT, 3/8-16 HWDFLLK MACK 15X84

$10.99

$

Usually ships in 2-12 days

0

23

Murray 690394

CRANK, PTO

$4.99

$

Usually ships in 2-12 days

0

24

Murray 94005

BRACKET, BELL CRANK

$16.99

$

Usually ships in 2-12 days

0

25

Murray 710079

SCREW, 5/16-18 x .75 HHWATAP

$

$

Not available

26

Murray 120395

FLATWASHER.469X.92X.065

$

$

Not available

27

Murray 690504

PLATE, STEERING

$3.99

$

In Stock, only 1 left!

0

28

Murray 710079

SCREW, 5/16-18 x .75 HHWATAP

$

$

Not available

29

Murray 093349MA

SCREW GUIDE 5/16-18

$4.49

$

Usually ships in 2-12 days

0

30

Murray 710204

NUT, 5/16-18 HEXWEFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

31

Murray 094066MA

SCREW - GUIDE

$14.99

$

In Stock, only 2 left!

0

32

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

33

Murray 094121MA

SECTOR GEAR

$

$

Not available

34

Murray 094123MA

BEARING, SECTOR GEAR

$12.99

$

In Stock, only 1 left!

0

35

Murray 710312

SCREW, 5/16-18 x 1.00 HHC

$8.49

$

Usually ships in 2-12 days

0

36

Murray 710105

NUT, 5/16-8 HKEPS 15X113

$

$

Currently unavailable

37

Murray 94632

ASSEMBLY, BRAKE LEVER

$

$

Currently unavailable

39

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

40

Murray 094067MA

PIN, THREADED SHOULDER
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

41

Murray 45171MA

NUT,3/8-16HWDFLWHIZ-LOCK

$3.49

$

Usually ships in 2-12 days

0

42

Murray 94013

BRACKET, HANGER REAR

$0.99

$

Usually ships in 2-12 days

0

43

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

45

Murray 94186

TOP, REAR PLATE LG SEAT DECK
(Superseded to 690367)

$3.99

$

Usually ships in 2-12 days

0

46

Murray 710196

SCREW 10-24X.500TRSEGI

$1.49

$

Usually ships in 2-12 days

0

47

Murray 94791

YOKE ASSY. TRUNNION

$

$

Not available

48

Murray 94434

CLAMP, TRUNNION PIVOT

$7.99

$

Usually ships in 2-12 days

0

49

Murray 710079

SCREW, 5/16-18 x 0.75

$

$

Not available

50

Murray 94409

ASSY, IDLER INTERMEDIATE
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

51

Murray 710708

BOLT, 5/16-18X.5

$1.99

$

Usually ships in 2-12 days

0

52

Murray 093349MA

SCREW GUIDE 5/16-18

$4.49

$

Usually ships in 2-12 days

0

53

Murray 710204

NUT, 5/16-18 HEXWDFLLK WHIZ

$5.49

$

Usually ships in 2-12 days

0

54

Murray 094433E701MA

BRACKET, Torque Strap, LH
(Superseded to 7300845BMYP)

$13.99

$

Usually ships in 2-12 days

0

55

Murray 57072

BOLT, 5/16-18X.63 CARR

$

$

Not available

56

Murray 710205

NUT, 5/16-18 WDFLLK

$14.99

$

In Stock, only 2 left!

0

57

Murray 710199

SCREW, 5/16-18 x 0.50 HXFLCA

$66.99

$

Usually ships in 2-12 days

0

58

Murray 094781MA

SCREW GUIDE

$60.99

$

Usually ships in 2-12 days

0

59

Murray 710204

NUT, 5/16-18 HXWDFLLK WHIZ PL

$5.49

$

Usually ships in 2-12 days

0

101

Murray 690482

BRACKET, BATTERY SUPPORT

$10.99

$

Usually ships in 2-12 days

0

102

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available
