42589x8 - Scotts 42" Lawn Tractor (1999) Steering Assembly Parts Diagram

42" Lawn Tractor

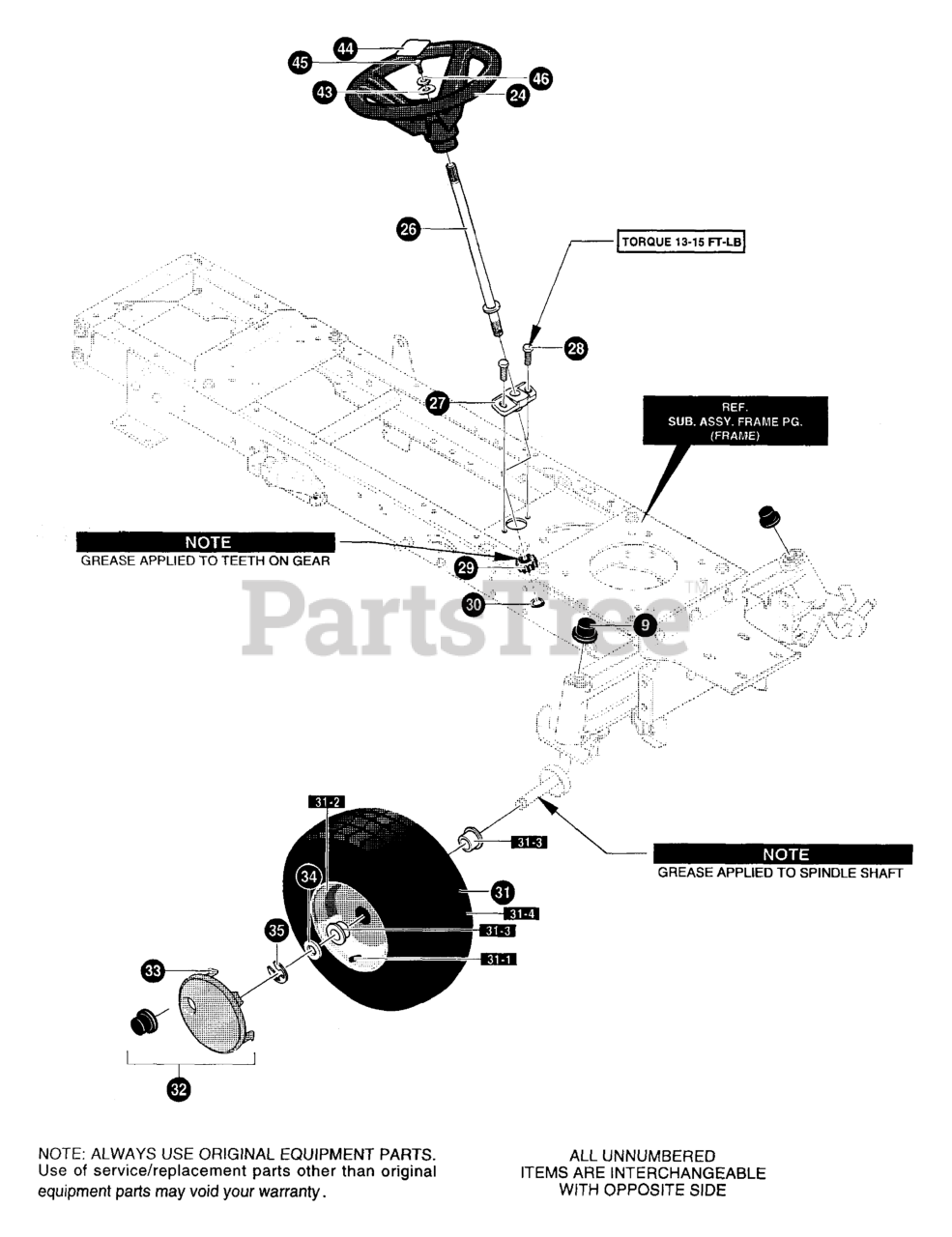

Steering Assembly Parts Diagram

  • Title

9

Murray 094618MA

HUB CAP

$5.99

$

Usually ships in 2-12 days

0

24

Murray 095184

STEERING WHEEL

$84.99

$

Usually ships in 2-12 days

0

26

Murray 094520

SHAFT, STEERING

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

BEARING-LOWER

$14.99

$

In Stock, only 1 left!

0

28

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAPSGIBP

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

GEAR PINNION

$

$

Not available

30

Murray 710102

RING, RET E.54ID .59SH (11X25)

$15.99

$

Usually ships in 2-12 days

0

31

Murray 692639

TIRE & RIM 15X6-6

$

$

Currently unavailable

31-1

Murray 338512

VALVE STEM

$

$

Not available

31-2

Murray 338517MA

RIM, CARLISLE

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

BEARING

$

$

Not available

31-4

Murray 338515

TIRE, 15X6X6

$

$

Currently unavailable

32

Murray 094480

HUB CAP, W/O HOLE

$

$

Currently unavailable

33

Murray 306669

CLIP, HUBCAP TINN

$

$

Not available

34

Murray 711758

WASHER, FLAT,.765X1.81X.059

$26.99

$

In Stock, only 1 left!

0

35

Murray 710103

"E" RING .574 IDX.050/.750SH 11X3

$8.99

$

Usually ships in 2-12 days

0

43

Murray 711720MA

FLATWASHER.281X1.25X.06

$1.99

$

Usually ships in 2-12 days

0

44

Murray 711325MA

INSERT, STEERING WHEEL

$43.99

$

Usually ships in 2-12 days

0

45

Murray 711719

SCREW, 1/4-20X.75

$1.49

$

Usually ships in 2-12 days

0

46

Murray 710249

WASHER (18x32)

$

$

Currently unavailable
