42589x8 - Scotts 42" Lawn Tractor (1999) Mower Suspension Assembly Parts Diagram

42" Lawn Tractor

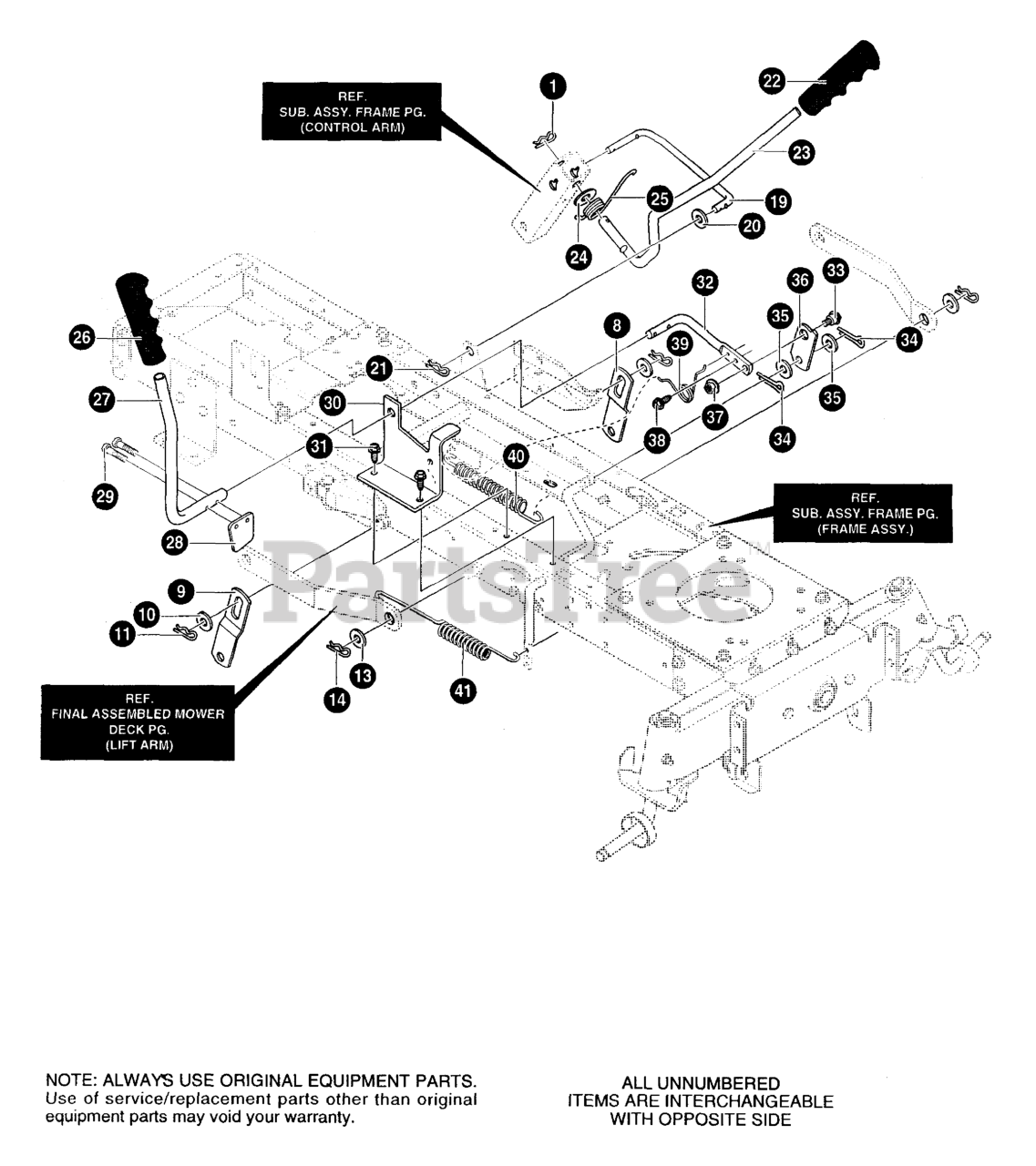

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray 711676

HAIR PIN

$

$

Currently unavailable

8

Murray 94611-821

LINK, LIFT LH

$2.49

$

Usually ships in 2-12 days

0

9

Murray 94053-821

LINK-LIFT

$1.99

$

Usually ships in 2-12 days

0

10

Murray 711617

FLATWASHER

$5.49

$

In Stock, Qty 11

0

11

Murray 711676

PIN, HAIR

$

$

Currently unavailable

13

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

14

Murray 711676

PIN, HAIR

$

$

Currently unavailable

19

Murray 95285

LINK LIFT HANDLE

$

$

Not available

20

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

21

Murray 711676

PIN, HAIR

$

$

Currently unavailable

22

Murray 094497

GRIP, LIFT 1/2"
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

23

Murray 95296

HANDLE, LIFT

$

$

Currently unavailable

24

Murray 711616

WASHER, FLAT .550 x 1.00 x 11 (17X103)

$

$

Not available

25

Murray 710111

TORSION SPRING, .657LG (166X40)

$18.99

$

Usually ships in 2-12 days

0

26

Murray 94496MA

Grip, PTO
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

27

Murray 95268

PTO HANDLE

$

$

Currently unavailable

28

Murray 95284MA

PADDLE SWITCH
(Superseded to 094022ZMA)

$3.99

$

In Stock, only 3 left!

0

29

Murray 711621MA

SCREW, THD FORM .246X1.050LG

$3.99

$

Usually ships in 2-12 days

0

30

Murray 94018

BRACKET, PTO
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

31

Murray 780055MA

SCREW, 5/16-18 x 0.50 HXFLCA
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Murray 95283MA

LEVER, PTO

$54.99

$

Usually ships in 2-12 days

0

33

Murray 711613MA

BOLT, .50X.75 HHSH 3/8-16 9X39

$1.99

$

Usually ships in 2-12 days

0

34

Murray 711659

PIN, HAIR.072 DIAX1.13LG

$1.99

$

Usually ships in 2-12 days

0

35

Murray 711615MA

WASHER, FLAT .518 x .87 x 16 (17X102)

$1.99

$

Usually ships in 2-12 days

0

36

Murray 95282

LINK PTO

$

$

Not available

37

Murray 711622

NUT, 3/8-16 HWDFLLK MACK 15X84

$

$

Currently unavailable

38

Murray 711606MA

SCREW, 5/16-18 x 0.75 HHWATAP

$7.99

$

In Stock, only 2 left!

0

39

Murray 710141

TORSION SPRING .33LG (166X39)

$11.99

$

In Stock, only 1 left!

0

40

Murray 710311

SPRING, TENSION 1.01OD 8.18LG

$3.49

$

Usually ships in 2-12 days

0

41

Murray 710208

EXTENSION SPRING (165X119)

$

$

Currently unavailable
