42589x8 - Scotts 42" Lawn Tractor (1999) Frame Assembly (part 2) Parts Diagram

42" Lawn Tractor

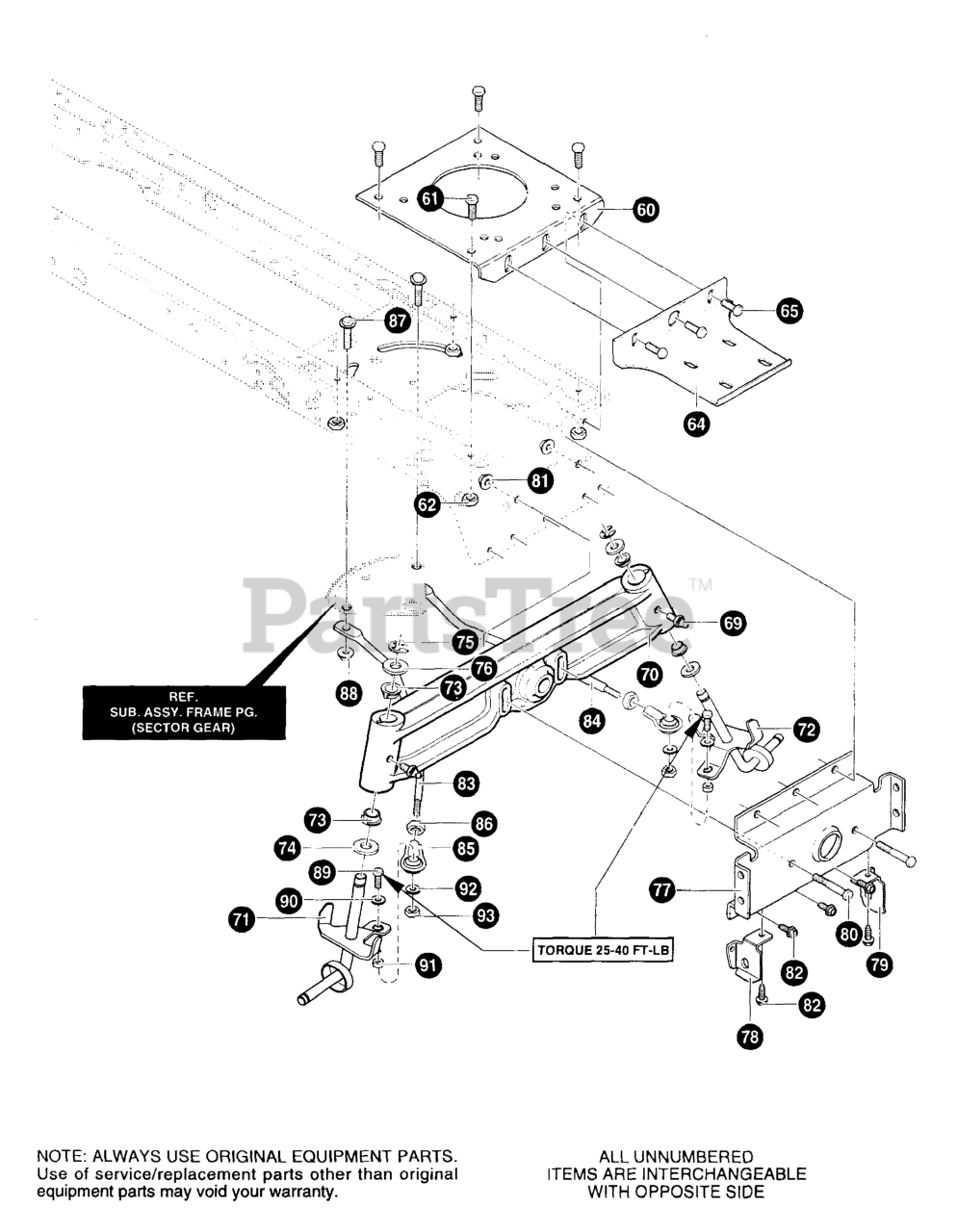

Frame Assembly (part 2) Parts Diagram

  • Title
60

Murray 94006

PLATE, ENGINE

$

$

Currently unavailable

61

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

62

Murray 710205

NUT, 5/16-18 WDFLLK (15X88)

$14.99

$

Usually ships in 2-12 days

0

64

Murray 094307

BRACKET, MUFFLER

$

$

Currently unavailable

65

Murray 710079

SCREW, 5/16-18 x 0.75 HHWATAP

$

$

Not available

69

Murray 706

ZERK, GREASE FITTING

$2.49

$

Usually ships in 2-12 days

0

70

Murray 94203

AXLE, FRONT CAST IRON

$

$

Currently unavailable

71

Murray 94732

SPINDLE, RH/STD. SPIN/NO BRG.
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

72

Murray 94733

SPINDLE, LH/STD. SPIN/NO BRG.
(Superseded to 691690)

$

$

Not available

73

Murray 092527MA

BEARING, SPINDLE

$6.49

$

In Stock, only 4 left!

0

74

Murray 710129

WASHER, FLAT .766 x 1.62 ID

$

$

Not available

75

Murray 710103

E-RING .574 IDX.050/.750 SH 11 X3

$8.99

$

Usually ships in 2-12 days

0

76

Murray 710088

WASHER, FLAT .765 x 1.81 x .059

$52.99

$

Usually ships in 2-12 days

0

77

Murray 94007

HANGER, AXLE

$

$

Currently unavailable

78

Murray 94026

HANGER DECK RH
(Superseded to 93920)

$3.49

$

Usually ships in 2-12 days

0

79

Murray 94027

HANGER DECK LH

$

$

Currently unavailable

80

Murray 710081

SCREW 5/16-24X2.75

$3.99

$

In Stock, only 2 left!

0

81

Murray 710080

NUT, 5/16-24 NF-2 HEXFLLK

$2.99

$

Usually ships in 2-12 days

0

82

Murray 710079

SCREW 5/16-18X.75HHWATAP

$

$

Not available

83

Murray 94767

ROD, DRGLNK/RH/ADJUST-5/8"

$

$

Currently unavailable

84

Murray 094768

ROD, DRGLNK/LH/ADJUST-5/8"

$

$

Currently unavailable

85

Murray 094766MA

TIE ROD END, 1/2-20

$

$

Not available

86

Murray 7058

NUT, 1/2-20 HXJAM

$1.99

$

Usually ships in 2-12 days

0

87

Murray 710440

BOLT, HHSH (9X57)

$

$

Currently unavailable

88

Murray 710140

NUT, 3/8-16 HWDFLLK MACK 15X84

$10.99

$

Usually ships in 2-12 days

0

89

Murray 310364

BOLT, .500X1.18 HHSH 3/8-16

$

$

Currently unavailable

90

Murray 315072

WASHER, FLAT .515X1.37X.119

$

$

Currently unavailable

91

Murray 319618MA

SPACER, SLEEVE .515X.70X.

$25.99

$

Usually ships in 2-12 days

0

92

Murray 301188MA

WASHER. FLAT /378X.75X.08

$2.99

$

Usually ships in 2-12 days

0

93

Murray 1499MA

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0
