42587x50D - Murray 42" Lawn Tractor (2001) Mower Suspension Assembly Parts Diagram

42" Lawn Tractor

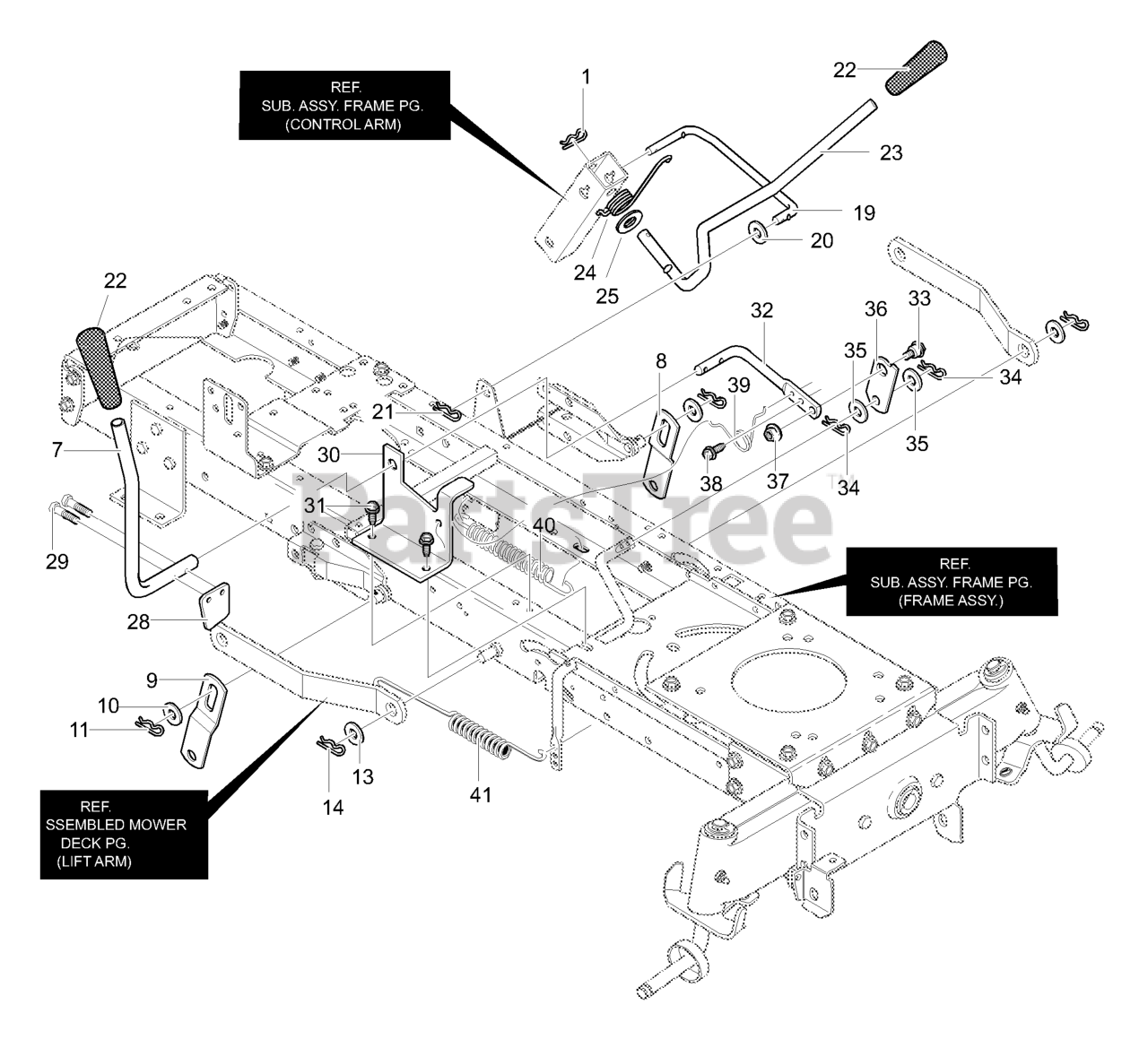

Mower Suspension Assembly Parts Diagram

  • Title
1

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

7

UNKNOWN

$

$

Not available

8

Murray 94611-821

Link, Lift LH

$2.49

$

Usually ships in 2-12 days

0

9

Murray 94053-821

Link, Lift RH

$1.99

$

Usually ships in 2-12 days

0

10

Murray 017X91MA

Flat washer

$5.49

$

In Stock, Qty 11

0

11

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 017X91MA

Flat washer

$5.49

$

In Stock, Qty 11

0

14

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 95285

Link, Lift Handle

$

$

Not available

20

Murray 711617

Flat washer

$5.49

$

In Stock, Qty 11

0

21

Murray 0031X4MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

$6.49

$

Usually ships in 2-12 days

0

23

Murray 690533MA

Handle, Lift

$40.99

$

In Stock, only 1 left!

0

24

Murray 711616

Washer, Flat

$

$

Not available

25

Murray 710111

Torsion Spring

$18.99

$

Usually ships in 2-12 days

0

26

$4.99

$

Usually ships in 2-12 days

0

27

Murray 094826 Z

PTO Handle

$

$

Currently unavailable

28

Murray 95284MA

Paddle Switch
(Superseded to 094022ZMA)

$3.99

$

In Stock, only 3 left!

0

29

Murray 711621MA

Screw, Thd Form

$3.99

$

Usually ships in 2-12 days

0

30

Murray 94018-821

Bracket, PTO

$

$

Currently unavailable

31

Murray 780055MA

Screw, 5/16-18 x 0.50 (26x277)
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Murray 95283MA

Lever, PTO

$54.99

$

Usually ships in 2-12 days

0

33

Murray 711613MA

Bolt, Shoulder 3/8-16

$1.99

$

Usually ships in 2-12 days

0

34

Murray 711659

Hair Pin

$1.99

$

Usually ships in 2-12 days

0

35

Murray 711615MA

Washer, Flat

$1.99

$

Usually ships in 2-12 days

0

36

Murray 95282

Link PTO

$

$

Not available

37

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

38

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

39

Murray 710141

Torsion Spring

$11.99

$

In Stock, only 1 left!

0

40

$15.99

$

In Stock, only 1 left!

0

41

Murray 710208

Spring, Extension (165x118)

$

$

Currently unavailable
