42587x50D - Murray 42" Lawn Tractor (2001) Frame Assembly (part 2) Parts Diagram

42" Lawn Tractor

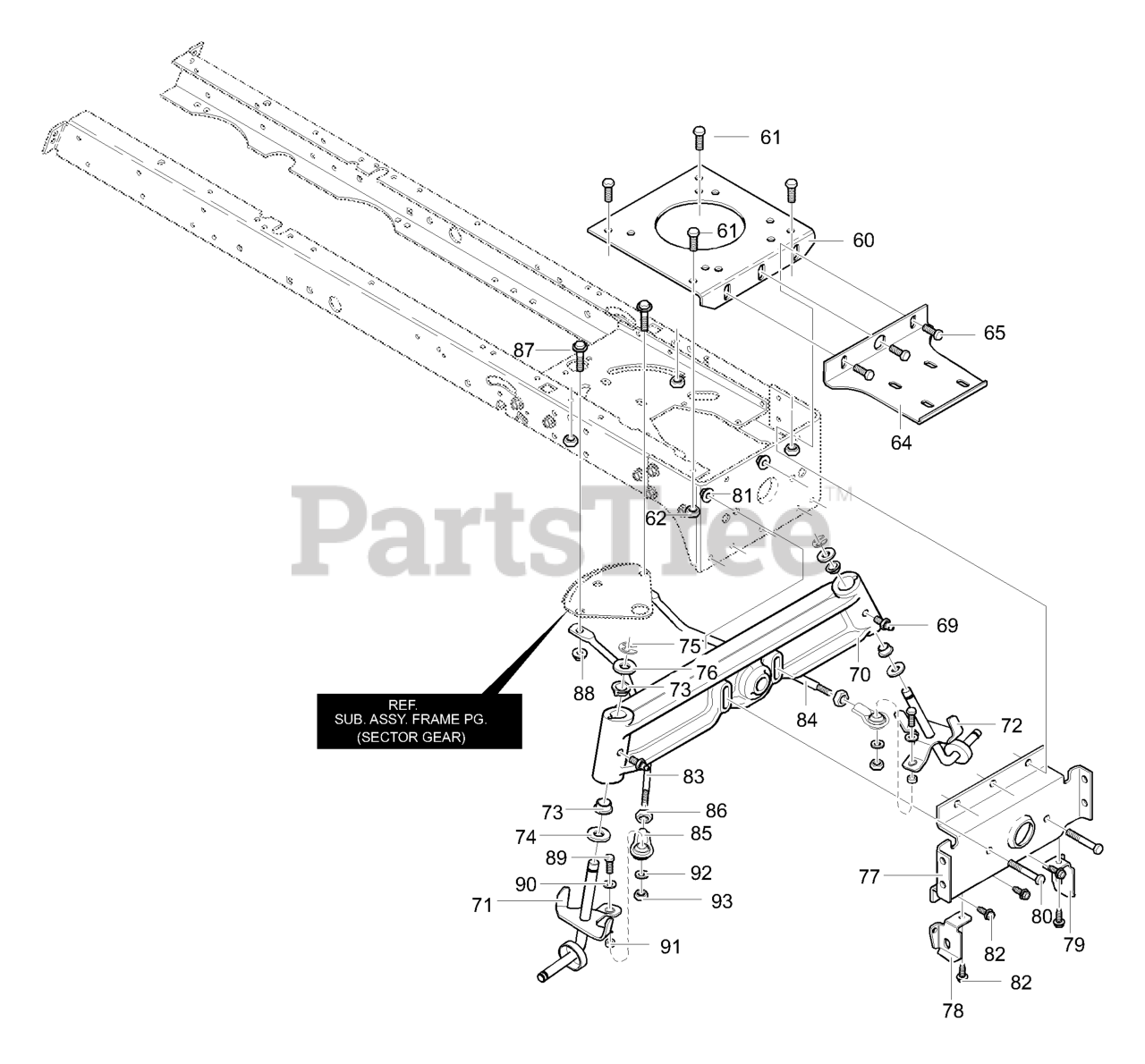

Frame Assembly (part 2) Parts Diagram

  • Title
60

Murray 94006

Engine Plate

$

$

Currently unavailable

61

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

62

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

64

Murray 094306

Bracket, Muffler Mount

$

$

Currently unavailable

65

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

69

Murray 706

Zerk, Grease Fitting

$2.49

$

Usually ships in 2-12 days

0

70

Murray 343710

Axle, Cast Machined

$

$

Currently unavailable

71

Murray 94732

Spindle, RH
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

72

Murray 94733

Spindle, LH
(Superseded to 691690)

$

$

Not available

73

Murray 092527MA

Bearing, Spindle

$6.49

$

In Stock, only 4 left!

0

74

Murray 17X113MA

Washer, .766IDx1.62ID

$3.99

$

In Stock, only 2 left!

0

75

$5.49

$

In Stock, Qty 20+

0

76

Murray 17X195MA

Flat washer

$4.99

$

In Stock, only 4 left!

0

77

Murray 94007

Hanger, Axle

$

$

Currently unavailable

78

Murray 94026

Hanger, Deck RH
(Superseded to 93920)

$3.49

$

Usually ships in 2-12 days

0

79

Murray 94027

Hanger, Deck LH

$

$

Currently unavailable

80

Murray 01X146MA

Screw, 5/16-24 x 2.75

$3.99

$

Usually ships in 2-12 days

0

81

Murray 15X118MA

Nut, .32-24 Flangelock

$4.49

$

Usually ships in 2-12 days

0

82

Murray 26X249MA

Screw, .5/16-24X2.75

$

$

Not available

83

Murray 94767

Rod, Drag Link, RH

$

$

Currently unavailable

84

Murray 094768

Rod, Drag Link, LH

$

$

Currently unavailable

85

Murray 094766MA

Tie Rod End 1/2-20

$

$

Not available

86

Murray 7058

Nut, 1/2-20 Hxjam

$1.99

$

Usually ships in 2-12 days

0

87

Murray 009X57MA

Bolt, HHSH

$9.99

$

In Stock, Qty 11

0

88

Murray 015X84MA

Nut, .38-16 Flng Ctrlk
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

89

Murray 310364

Bolt, HHSH 3/8-16

$

$

Currently unavailable

90

Murray 711762

Flat washer

$

$

Currently unavailable

91

Murray 319618MA

Spacer, Sleeve

$25.99

$

Usually ships in 2-12 days

0

92

Murray 301188MA

Flat washer

$2.99

$

Usually ships in 2-12 days

0

93

Murray 1499MA

Nut, 3/8-16 Reghexctrlk
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0
