42587x50D - Murray 42" Lawn Tractor (2001) Electrical Assembly Parts Diagram

42" Lawn Tractor

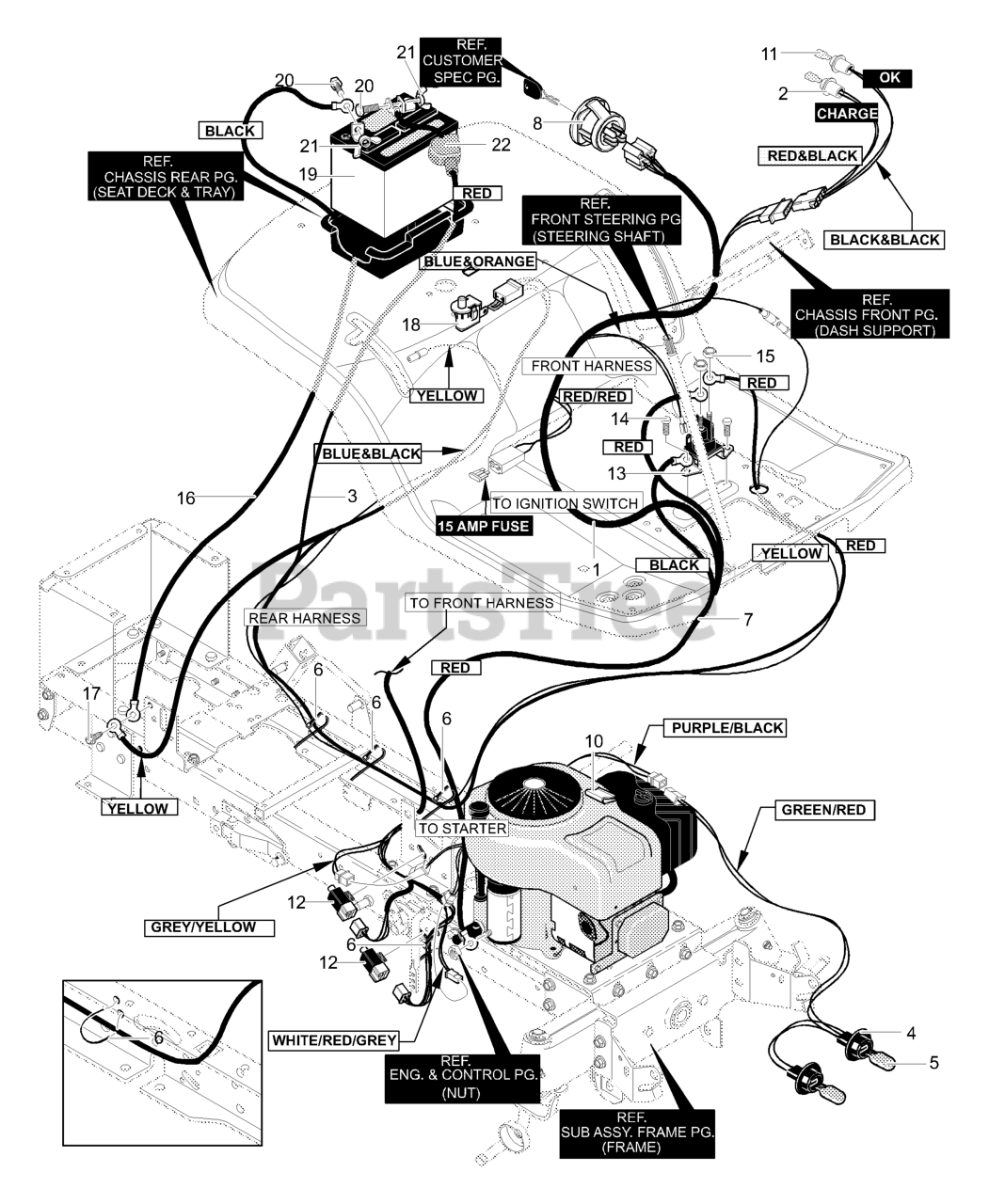

Electrical Assembly Parts Diagram

  • Title

1

Murray 95374

Wire Harness w/Indicator

$

$

Not available

2

Murray 690611

Harness, Ind. PTO/CHG

$7.49

$

In Stock, only 1 left!

0

3

Murray 340530

Wire Harness, Rear

$

$

Currently unavailable

4

Murray 94103

Wire Harness *

$

$

Currently unavailable

5

Murray 52572

Bulb, Headlamp
(Superseded to 52572GS)

$14.99

$

Usually ships in 2-12 days

0

6

Murray 57444

Cable Tie

$

$

Not available

7

Murray 711579

Wire, Lead Solenoid to Starter

$

$

Currently unavailable

8

Murray 094762

Switch, Ignition

$24.99

$

Usually ships in 2-12 days

0

10

Murray 055939MA

Wire Clip, Adhesive

$4.99

$

Usually ships in 2-12 days

0

11

Murray 57769MA

Bulb, Indicator

$4.49

$

Usually ships in 2-12 days

0

12

Murray 094136MA

Switch, Limit

$12.99

$

Usually ships in 2-12 days

0

13

Murray 094613

Solenoid

$27.99

$

In Stock, only 3 left!

0

14

Murray 711619

Screw 1/4x.50

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711632

Nut, 1/4-20

$

$

Currently unavailable

16

Murray 710228

Ground Wire

$47.99

$

In Stock, only 2 left!

0

17

Murray 711760

Screw, 1/4x.75

$

$

Currently unavailable

18

Murray 094159MA

Seat Switch
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Murray 092693

Battery 6 Plate

$

$

Currently unavailable

20

Murray 002X82MA

Bolt, 1/4-20x.63
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

21

Murray 014X76

Wing Nut

$

$

Currently unavailable

22

Murray 335417

Battery Boot

$5.49

$

Usually ships in 2-12 days

0

--

Murray 302031MA

15 Amp Fuse

$6.49

$

Usually ships in 2-12 days

0
