42587x50C - Murray 42" Lawn Tractor (2000) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

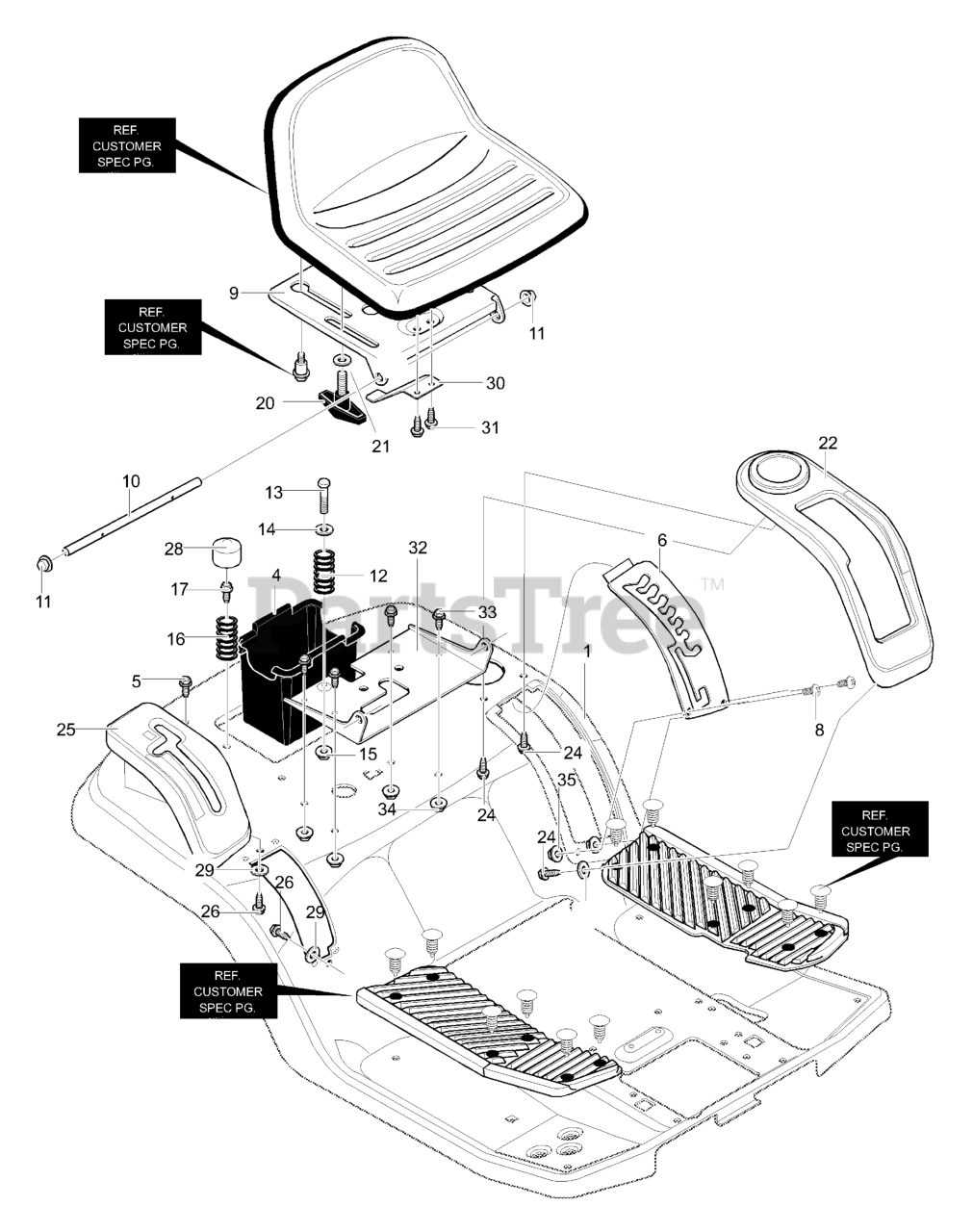

Rear Chassis Assembly Parts Diagram

  • Title
1

Murray 94628-860

Seat Deck

$

$

Currently unavailable

4

Murray 690424MA

Battery Container

$45.99

$

In Stock, only 1 left!

0

5

Murray 26X263MA

Screw, 1/4-20x.63

$4.99

$

In Stock, only 1 left!

0

6

Murray 94886-821

Plate, Lift Detent

$

$

Currently unavailable

8

Murray 711629

Screw, 10-24x.500

$

$

Not available

9

Murray 94154-860

Seat Support

$

$

Currently unavailable

10

Murray 95294

Hinge, Seat Pivot

$

$

Not available

11

Murray 028X23MA

Push Cap Nut
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

12

Murray 710136-821

Comp. Spring

$

$

Currently unavailable

13

Murray 711610

Shoulder Bolt, 1/4-20

$

$

Not available

14

Murray 094155 Z

Washer Cup

$

$

Currently unavailable

15

Murray 302635

Nut, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

16

Murray 710109-821

Comp. Spring

$

$

Currently unavailable

17

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

20

Murray 1001054MA

Wing Bolt 5/16-18x.50

$6.99

$

Usually ships in 2-12 days

0

21

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

22

Murray 094491

Detent Cover w/cup

$

$

Currently unavailable

24

Murray 711671MA

Screw, 1/4-15

$3.99

$

Usually ships in 2-12 days

0

25

Murray 094495

Shift Cover Hand/Foot

$

$

Currently unavailable

26

Murray 711671MA

Screw, 1/4-15x.44

$3.99

$

Usually ships in 2-12 days

0

27

Murray 071067MA

Flat washer

$82.99

$

In Stock, only 1 left!

0

28

UNKNOWN

$

$

Not available

29

Murray 071067MA

Flat washer

$82.99

$

In Stock, only 1 left!

0

30

Murray 094057MA

Spring - Leaf

$5.99

$

Usually ships in 2-12 days

0

31

Murray 711592

Screw, 1/4-20x.50

$335.99

$

Usually ships in 2-12 days

0

32

Murray 94153-860

Bracket, Pivot Seat

$

$

Currently unavailable

33

Murray 001X45MA

Screw, 5/16-18 x 0.75
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

34

Murray 15X123MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

35

Murray 711842

Nut, #10-24 Locknut

$8.49

$

Usually ships in 2-12 days

0
