42582 - Gravely Pro Series Sulky Ride TRAILING SULKY Parts Diagram

Pro Series Sulky Ride

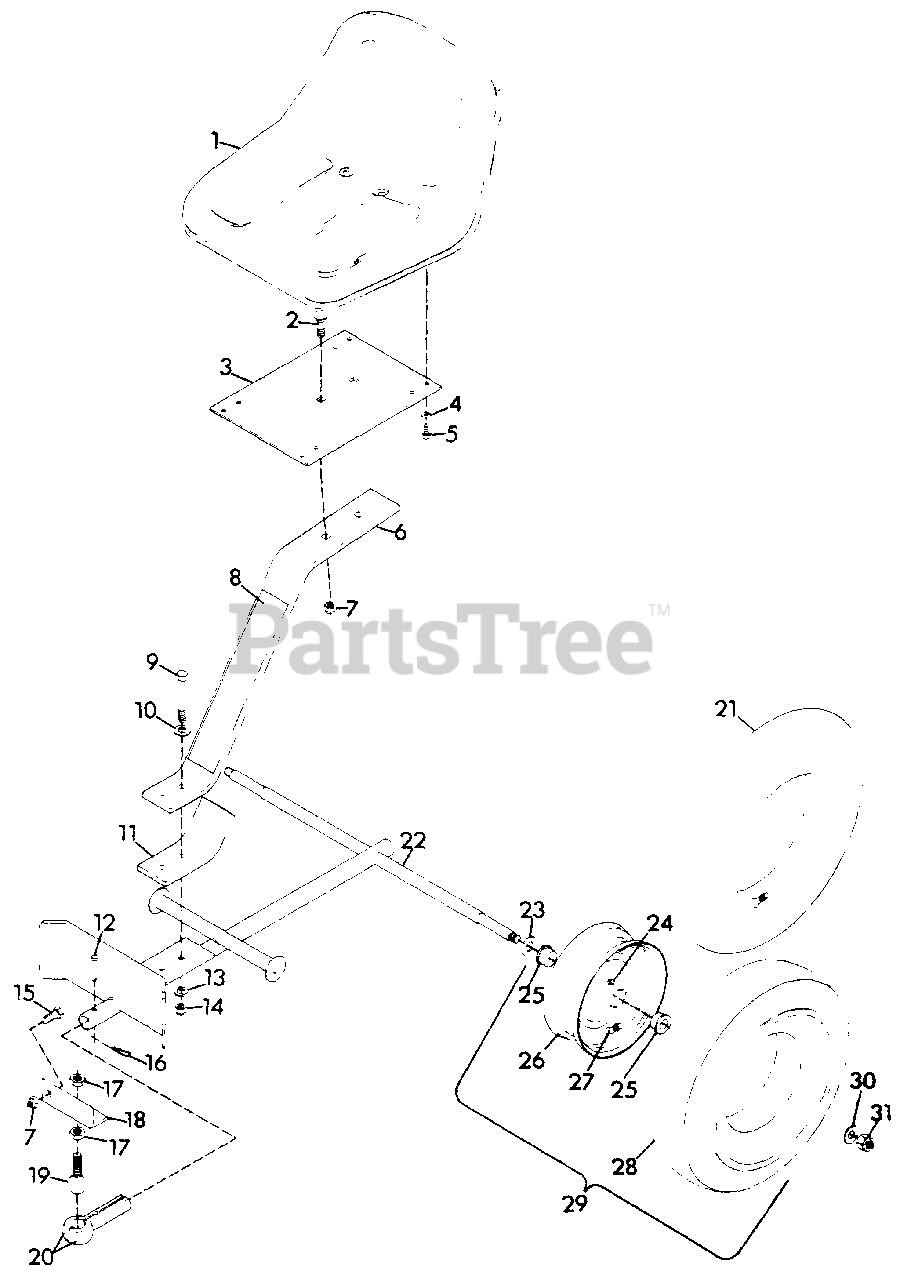

TRAILING SULKY Parts Diagram

  • Title

1

Gravely 040227

SEAT, HIGH BACK
(Superseded to 09112400)

$

$

Not available

2

Gravely 120917

BOLT, 1/2-13X1.50 RD HD SQ NK
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

3

Gravely 042563

PLATE
(Superseded to 08818900)

$

$

Not available

4

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 042585

ASSEMBLY, SEAT SPRING AND DECAL
(Superseded to 08819153)

$

$

Not available

7

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 043218

DECAL, WARNING
(Superseded to 05210800)

$

$

Not available

9

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

10

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

11

Gravely 017839

PLATE, REINFORCEMENT
(Superseded to 08505453)

$

$

Not available

12

Gravely 011685

PIN, DRAW BAR
(Superseded to 08585600)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 120384

WASHER, LOCK 1/2-13 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

14

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 124944

NUT, JAM 5/8-18
(Superseded to 06539600)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 042561

BRACKET
(Superseded to 08818700)

$

$

Not available

19

Gravely 012570

STUD, BALL
(Superseded to 08589400)

$90.99

$

Usually ships in 4-12 days

0

20

Gravely 012572

SOCKET, SPLIT
(Superseded to 08866600)

$51.99

$

Usually ships in 4-12 days

0

21

Gravely 013573

TUBE
(Superseded to 20124600)

$

$

Not available

22

Gravely 042571

WELDMENT, FRAME

$

$

Not available

23

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

25

Gravely 012345

BUSHING, WHEEL
(Superseded to 21523400)

$21.99

$

Usually ships in 4-12 days

0

26

Gravely 010450

WHEEL, ASSEMBLY LESS TIRE/TUBE
(Superseded to 20042300)

$

$

Not available

27

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

28

Gravely 012356

TIRE
(Superseded to 20093800)

$

$

Not available

29

Gravely 010140

WHEEL, SULKY ASSEMBLY COMPLETE(INCLUDES ITEM NOS. 24,25,26,27,28)
(Superseded to 07132500)

Note: (INCLUDES ITEM NOS. 24,25,26,27,28)

$

$

Not available

30

Gravely 131016

WASHER, FLAT.656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 013412

NUT, LOCK 5/8-18 L.T.
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0
