42581x95A - Murray 42" Lawn Tractor (1997) Hood & Dash Parts Diagram

42" Lawn Tractor

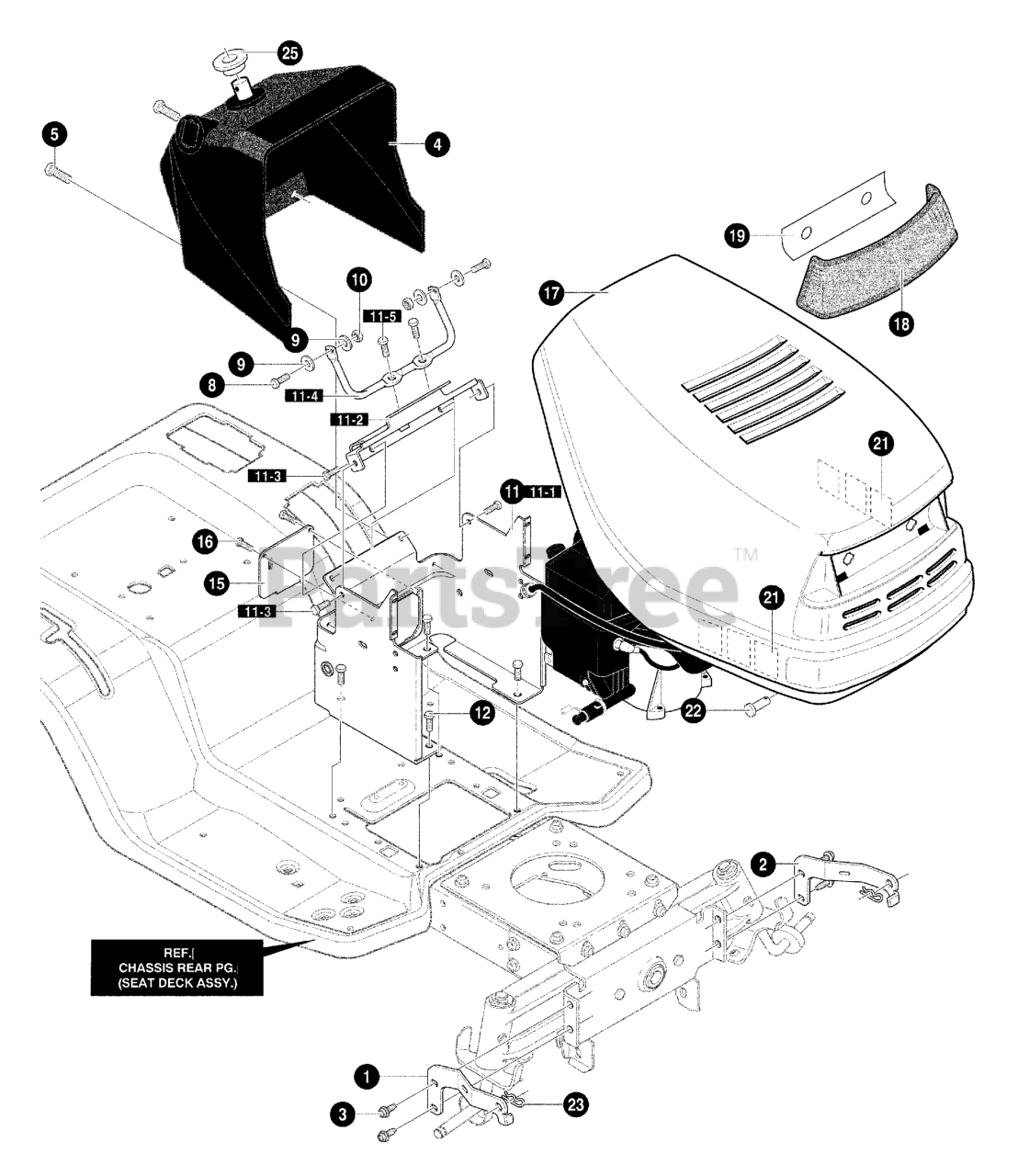

Hood & Dash Parts Diagram

  • Title
1

Murray 095413

BRACKET, HOOD RH- H15

$

$

Currently unavailable

2

Murray 095414

BRACKET, HOOD LH- H15

$

$

Currently unavailable

3

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

4

Murray 095427

DASH, H14/H15

$

$

Currently unavailable

5

Murray 26X263MA

SCREW, 1/4- 14X .75PHPANTAPABBL

$4.99

$

In Stock, only 1 left!

0

8

Murray 001X38MA

SCREW, 1/4-20X .75 HHC

$4.49

$

In Stock, Qty 10

0

9

Murray 017X37MA

WASHER, FLAT .281X .63X.065
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Murray 26X263MA

NUT, 1/4-20 REGHEXCTRLK

$4.99

$

In Stock, only 1 left!

0

11

Murray 341569

ASM. LOWER CONSOLE H14/H15

$

$

Currently unavailable

11-1

Murray 095425

TOWER, LOWER DASH

$

$

Currently unavailable

11-2

Murray 095426

SUPPORT, STEERING/PTO

$

$

Currently unavailable

11-3

Murray 26X263MA

SCREW, 1 /4- 20X .50 WAHHTAP

$4.99

$

In Stock, only 1 left!

0

11-4

Murray 095406

ROD, DASH BRACE

$

$

Currently unavailable

11-5

Murray 26X263MA

SCREW, 1/4-20X .50 WAHHTAP

$4.99

$

In Stock, only 1 left!

0

12

Murray 26X249MA

SCREW, 5/16-18 x 0.75 HHWATAPSGIBP

$

$

Not available

15

Murray 094638

PANEL, ACCESS NLT

$

$

Currently unavailable

16

Murray 26X270

SCREW, 10-24X.500 TRSEGI ZNBKCR
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

17

Murray 304188

HOOD, NOMA LARGE H- 15

$

$

Currently unavailable

18

Murray 302670MA

LENS, HEADLAMP DYNA HOODS

$27.99

$

Usually ships in 2-12 days

0

19

Murray 308492

FOIL, LENS DYNA HOOD REFLECTOR

$

$

Not available

21

Murray 301452MA

FOIL, HEAT REFLECTOR

$10.99

$

Usually ships in 2-12 days

0

22

Murray 300317

PIN, CLEVIS .375DIA.X .81 LG

$1.49

$

Usually ships in 2-12 days

0

23

Murray 0031X4MA

PIN, HAIR.38 DIAX1.64LGPH&OI/Z
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 095404

BUSHING, STEERING SHAFT

$

$

Currently unavailable

--

Murray 44X7481

DECAL, LEFT HOOD

$

$

Currently unavailable

--

Murray 44X7482

DECAL, RIGHT HOOD

$

$

Currently unavailable

--

Murray 44X6815MA

DECAL, WARNING SYMBOLS

$9.99

$

Usually ships in 2-12 days

0

--

Murray 44X7483

DECAL, MASPORT

$

$

Currently unavailable

--

Murray F-97889

INSTRUCTION BOOK

$

$

Currently unavailable

--

Murray F-97890

PARTS LIST

$

$

Currently unavailable
