42581x95A - Murray 42" Lawn Tractor (1997) Electrical System Parts Diagram

42" Lawn Tractor

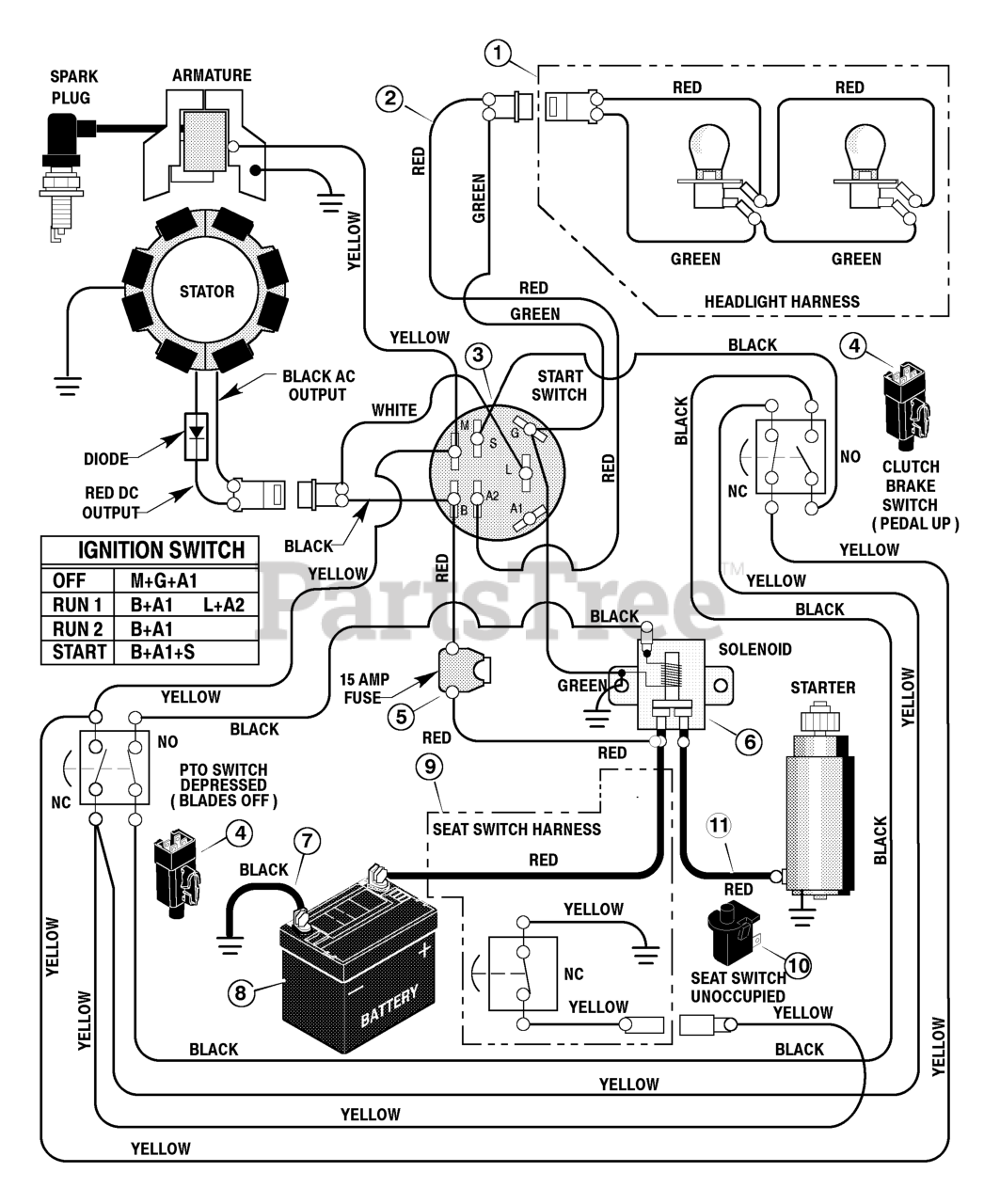

Electrical System Parts Diagram

  • Title

1

Murray 250X82

HARNESS, LIGHT WIRE

$8.49

$

Usually ships in 2-12 days

0

--

Murray 092098MA

BULB, LIGHT

$4.99

$

Usually ships in 2-12 days

0

2

Murray 250X83

HARNESS, CHASSIS WIRE

$

$

Currently unavailable

3

Murray 094762

SWITCH, IGNITION

$24.99

$

Usually ships in 2-12 days

0

--

Murray 327350MA

KEY, IGNITION
(Superseded to 1714054SM)

$7.49

$

In Stock, Qty 20+

0

4

Murray 094136MA

SWITCH, LIMIT

$12.99

$

Usually ships in 2-12 days

0

5

Murray 054212

FUSE

$6.99

$

Usually ships in 2-12 days

0

--

Murray 407078MA

HOLDER, FUSE

$20.99

$

Usually ships in 2-12 days

0

6

Murray 094613

SOLENOID

$27.99

$

In Stock, only 3 left!

0

--

Murray 26X229MA

SCREW, MOUNTING

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

LOCKNUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 18

0

7

Murray 024X32MA

CABLE, BATTERY GROUND

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X213MA

SCREW, GROUND CABLE

$4.49

$

In Stock, only 1 left!

0

8

Murray 021075

BATTERY

$

$

Not available

--

Murray 093292

ACID, BATTERY (ELECTROLYTE)

$

$

Not available

--

Murray 002X82MA

BOLT, CARRIAGE
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

WINGNUT

$4.99

$

Usually ships in 2-12 days

0

9

Murray 250X67MA

HARNESS, SEAT SWITCH WIRE

$

$

Not available

10

Murray 094159MA

SWITCH, SEAT SENSOR
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

Murray 024X31MA

CABLE

$7.49

$

In Stock, only 1 left!

0
