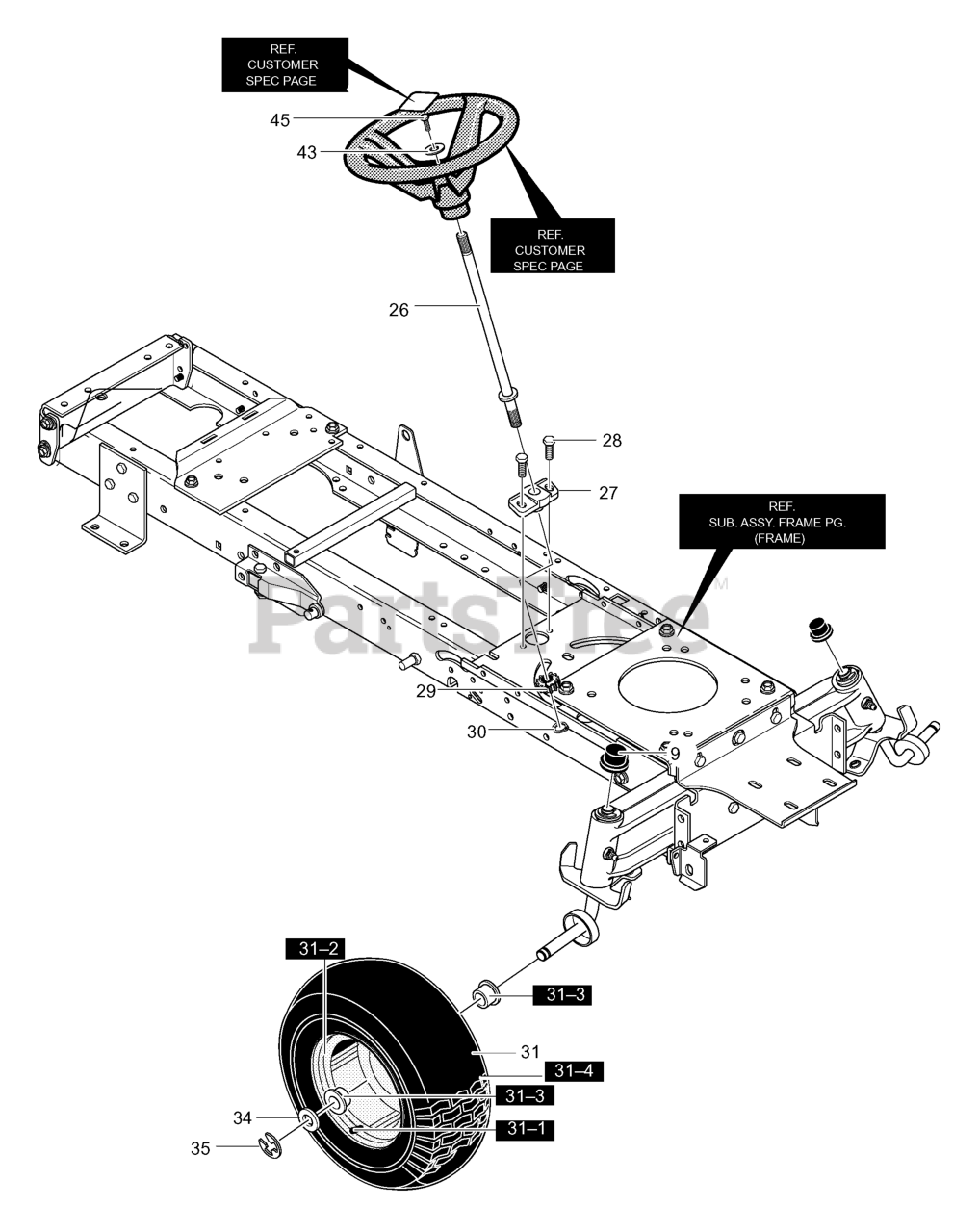

42581x50C - Murray 42" Lawn Tractor (2000) Steering Parts Diagram

42" Lawn Tractor

Steering Parts Diagram

  • Title
9

Murray 094618MA

Dust Hub Cap

$5.99

$

In Stock, only 4 left!

0

26

Murray 094520

Shaft, Steering

$64.99

$

Usually ships in 2-12 days

0

27

Murray 094124MA

Bearing-Lower

$14.99

$

In Stock, only 1 left!

0

28

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

29

Murray 094122

Gear, Pinion

$

$

Not available

30

Murray 710102

Retaining Ring

$15.99

$

Usually ships in 2-12 days

0

31

Murray 692641

Tire & Rim

$

$

Currently unavailable

31-1

Murray 338512

Valve Stem

$

$

Not available

31-2

$93.99

$

In Stock, only 1 left!

0

31-3

Murray 338513

Bearing

$

$

Not available

31-4

$

$

Currently unavailable

34

Murray 17X192MA

Flatwasher

$4.99

$

In Stock, Qty 15

0

35

$5.49

$

In Stock, Qty 20+

0

43

Murray 17X146MA

Flat washer

$5.49

$

Usually ships in 2-12 days

0

45

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

--

Murray 094618MA

Hub Cap

$5.99

$

In Stock, only 4 left!

0
