42581x50C - Murray 42" Lawn Tractor (2000) Frame Assembly (part 2) Parts Diagram

42" Lawn Tractor

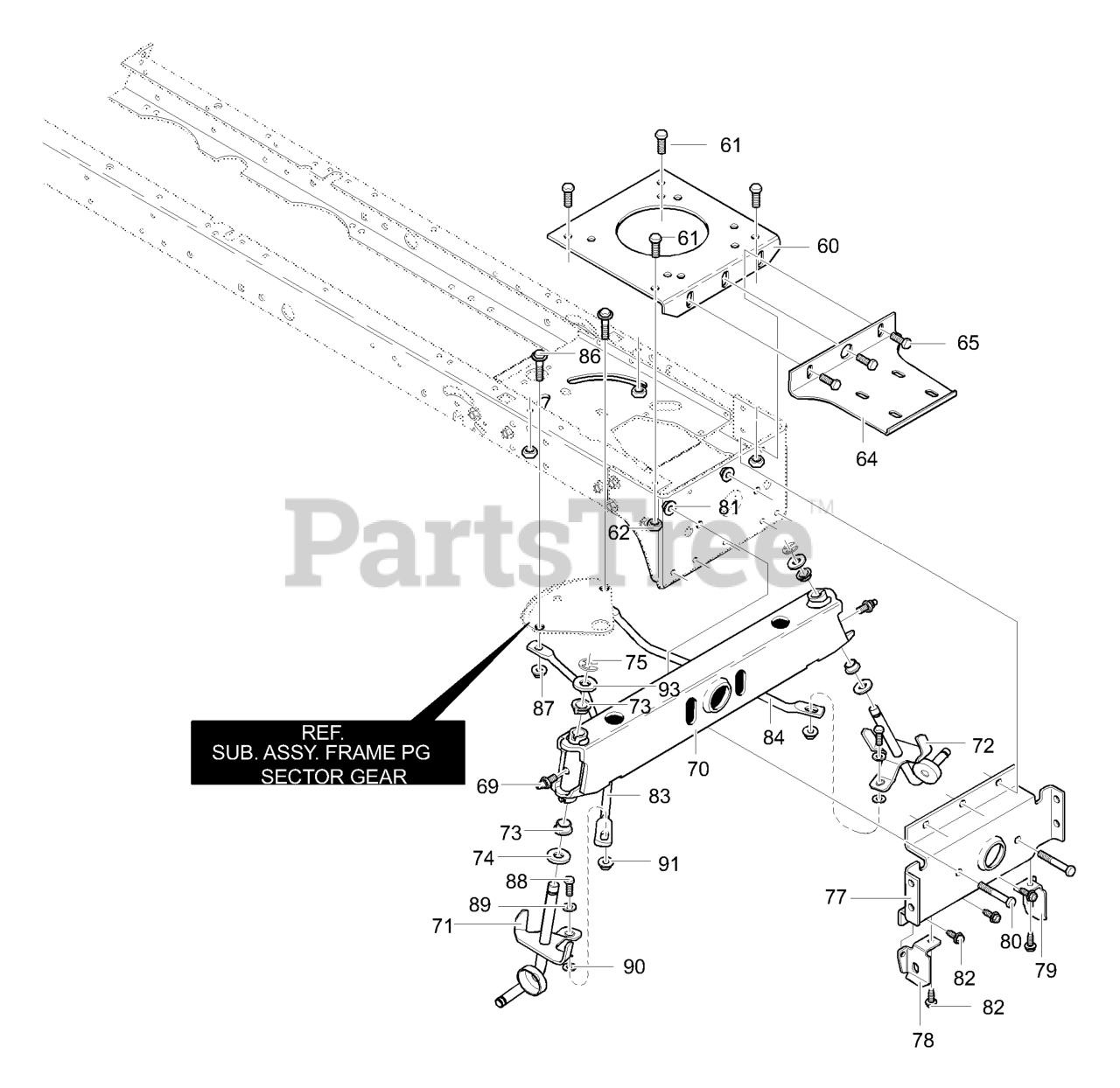

Frame Assembly (part 2) Parts Diagram

  • Title
60

Murray 94006

Engine Plate

$

$

Currently unavailable

61

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

62

Murray 015X88MA

Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

64

Murray 094306

Bracket, Muffler Mount

$

$

Currently unavailable

65

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available

69

Murray 706

Zerk, Grease Fitting

$2.49

$

Usually ships in 2-12 days

0

70

Murray 690211

Axle, Cast Machined

$347.99

$

Usually ships in 2-12 days

0

71

Murray 94178

Spindle, RH

$

$

Currently unavailable

72

Murray 094179

Spindle, LH

$

$

Currently unavailable

73

Murray 690150MA

Bearing, Spindle

$8.99

$

In Stock, only 2 left!

0

74

Murray 17X113MA

Washer, .766IDx1.62ID

$3.99

$

In Stock, only 2 left!

0

75

$5.49

$

In Stock, Qty 20+

0

77

Murray 94007

Hanger, Axle

$

$

Currently unavailable

78

Murray 94026

Hanger, Deck RH
(Superseded to 93920)

$3.49

$

Usually ships in 2-12 days

0

79

Murray 94027

Hanger, Deck LH

$

$

Currently unavailable

80

Murray 01X146MA

Screw, 5/16-24 x 2.75

$3.99

$

Usually ships in 2-12 days

0

81

Murray 15X118MA

Nut, .32-24 Flangelock

$4.49

$

Usually ships in 2-12 days

0

82

Murray 26X249MA

Screw, .5/16-24X2.75

$

$

Not available

83

Murray 95328

Drag Link, RH

$

$

Currently unavailable

84

Murray 95329

Drag Link, LH

$

$

Currently unavailable

86

Murray 009X57MA

Shoulder Bolt

$9.99

$

In Stock, Qty 11

0

87

Murray 015X84MA

Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

88

Murray 01X111MA

Screw, 3/8-16 x 1.50

$4.49

$

In Stock, only 1 left!

0

89

Murray 17X104MA

Flatwasher
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

90

Murray 017X53MA

Flatwasher
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

91

Murray 015X84MA

Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

93

Murray 17X195MA

Flat washer

$4.99

$

In Stock, only 4 left!

0
