42581x50C - Murray 42" Lawn Tractor (2000) Deck Assembly (part 3) Parts Diagram

42" Lawn Tractor

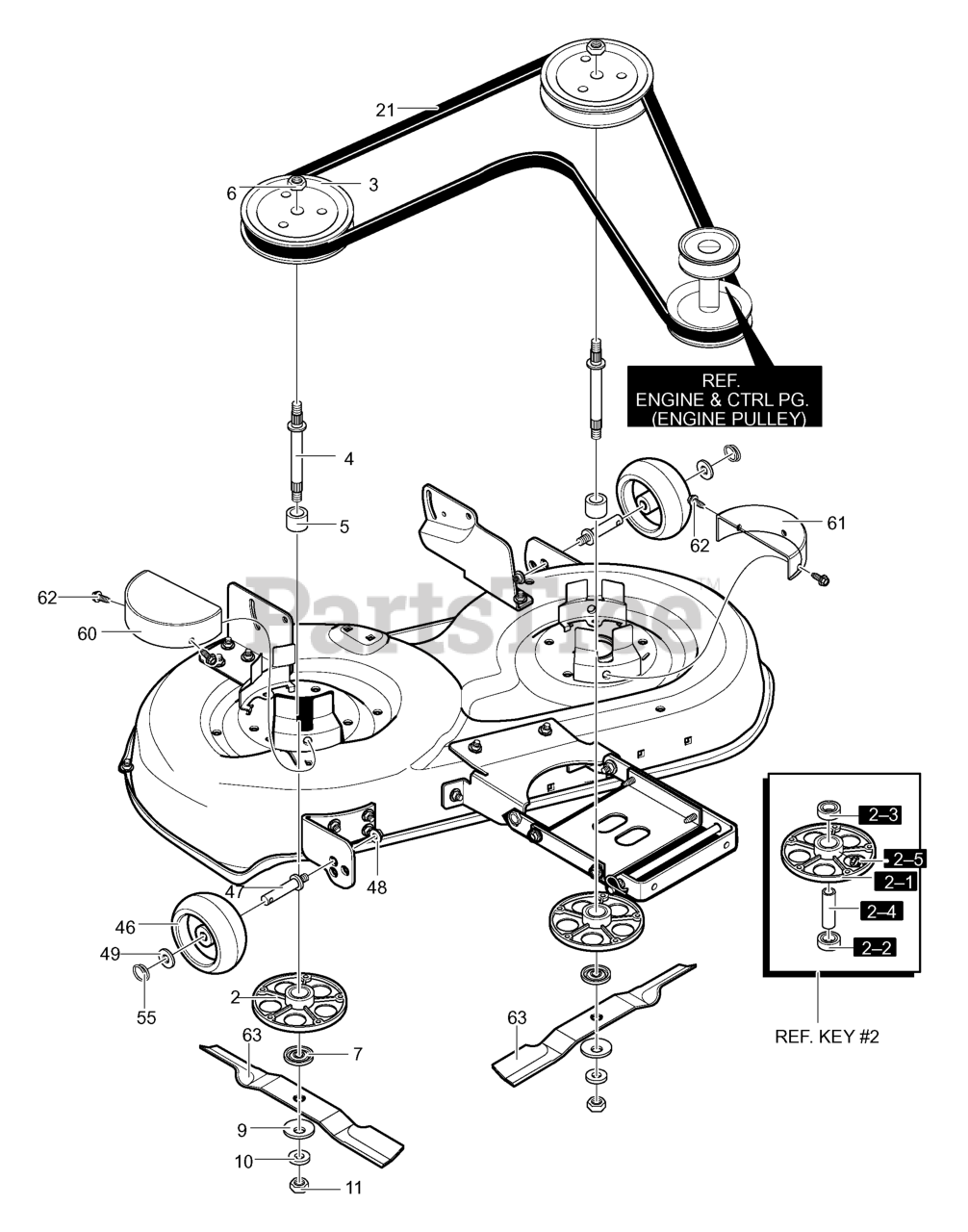

Deck Assembly (part 3) Parts Diagram

  • Title

2

Murray 092574

Jackshaft Assembly

$

$

Currently unavailable

2-1

Murray 092573

Jackshaft Housing

$

$

Currently unavailable

2-2

Murray 092282MA

Bearing, Lower Jackshaft

$11.99

$

Usually ships in 2-12 days

0

2-3

Murray 092281MA

Bearing, Upper Jackshaft

$12.99

$

Usually ships in 2-12 days

0

2-4

Murray 090904MA

Spacer, .625x.875x1.71

$17.99

$

Usually ships in 2-12 days

0

2-5

Murray 690501MA

Zerk, Grease

$5.49

$

Usually ships in 2-12 days

0

3

Murray 95308MA

Pulley, Split

$67.99

$

Usually ships in 2-12 days

0

4

Murray 094129

Jackshaft

$21.99

$

In Stock, Qty 11

0

5

Murray 094130MA

Spacer, .625x.875x1.85

$5.99

$

In Stock, Qty 12

0

6

Murray 711626

Nut, 9/16-18

$

$

Currently unavailable

7

Murray 092466MA

Adapter, Deck/Blade

$9.99

$

In Stock, only 1 left!

0

9

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 18

0

10

Murray 17X165MA

Washer

$16.99

$

In Stock, only 4 left!

0

11

Murray 15X100MA

Nut, .56-18 Regular

$3.99

$

In Stock, Qty 10

0

21

Murray 710213

Belt, 42" Deck

$

$

Currently unavailable

46

Murray 092683MA

Gauge Wheel

$15.99

$

In Stock, only 3 left!

0

47

Murray 711746

Bolt, SPSH 3/8-16

$7.99

$

Usually ships in 2-12 days

0

48

Murray 711622

Nut, 3/8-16 Wdfllk

$

$

Currently unavailable

49

Murray 017X91MA

Flat washer

$5.49

$

In Stock, Qty 11

0

55

Murray 031X11MA

Circle Pin

$4.49

$

In Stock, only 2 left!

0

60

Murray 94669E701MA

GUARD, Belt R.H.

$42.99

$

Usually ships in 2-12 days

0

61

Murray 094668E701MA

GUARD, Pulley L.H.

$34.99

$

Usually ships in 2-12 days

0

62

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

63

Murray 690205E701MA

Blade, 42" Low Lift

$26.99

$

Usually ships in 2-12 days

0
