42581x50C - Murray 42" Lawn Tractor (2000) Deck Assembly (part 2) Parts Diagram

42" Lawn Tractor

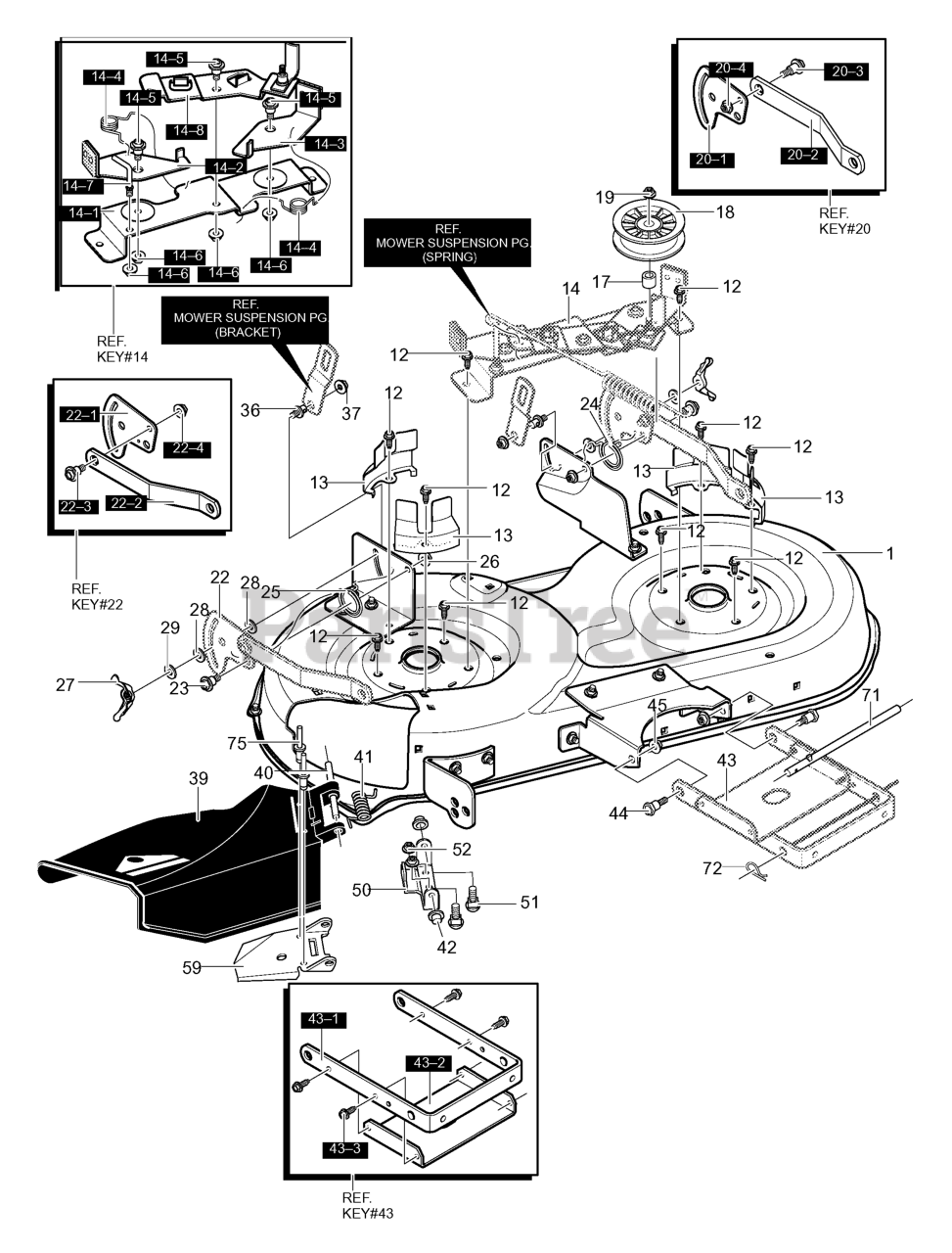

Deck Assembly (part 2) Parts Diagram

  • Title
1

Murray 94189-821

Blade Housing Assembly

$

$

Currently unavailable

12

Murray 0025X7MA

Engine Bolt 3/8x1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

13

Murray 94051-821

Cover, Segment Belt Guide

$

$

Currently unavailable

14

Murray 690138-821

Asm., Brkt supt w/Brakes

$

$

Currently unavailable

14-1

Murray 94193

Bracket, Brake Mtg.

$

$

Currently unavailable

14-2

Murray 94047

Assy., Brake RH
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

14-3

Murray 94049

Assy., Brake LH

$

$

Currently unavailable

14-4

Murray 710227

Torsion Spring

$33.99

$

Usually ships in 2-12 days

0

14-5

Murray 710098

Bolt, 3/8-16 HHSH
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

14-6

Murray 015X84MA

Nut, .38-16 Flng Ctrlk
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14-7

Murray 094781MA

Screw Guide

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 690408

Assy., Idler Arm

$6.49

$

Usually ships in 2-12 days

0

14-9

Murray 015X88MA

Nut, .32-18 Flng Ctrlk
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

17

Murray 690369MA

Spacer, 1/2 to 17MM

$

$

Not available

18

Murray 690451

Idler Pulley

$2.99

$

Usually ships in 2-12 days

0

19

Murray 711920MA

Nut, 3/8-16 Hwdfllk Mack

$4.49

$

Usually ships in 2-12 days

0

20

Murray 341594-821

Asm., Plate Rear Sus. Brkt LH

$

$

Currently unavailable

20-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

20-2

Murray 94055

Suspension Bracket Rear

$

$

Currently unavailable

20-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

20-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

22

Murray 341593-821

Assy, Plate,Rear Sus Bkt RH

$8.49

$

Usually ships in 2-12 days

0

22-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

22-2

Murray 94055

Suspension Bracket Rear

$

$

Currently unavailable

22-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

22-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

23

Murray 711611

Bolt, Shoulder

$1.49

$

Usually ships in 2-12 days

0

24

Murray 710113

Spring, Torsion LH

$

$

Not available

25

Murray 710112

Spring, Torsion RH

$11.99

$

In Stock, only 2 left!

0

26

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

27

Murray 711600

Wingnut, 5/16-18

$

$

Currently unavailable

28

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

29

Murray 711628MA

Washer
(Superseded to 017X45MA)

$

$

Not available

36

Murray 711595

Pin, Hanger

$

$

Not available

37

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

39

Murray 094687MA

Deflector Chute

$78.99

$

Usually ships in 2-12 days

0

40

Murray 95303MA

Rod, Chute Deflector
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

41

Murray 710194

Spring, Torsion

$

$

Currently unavailable

42

Murray 711627MA

Nut, Push Cap

$

$

Not available

43

Murray 690058-821

Asm., Bracket & Stiffener

$18.99

$

Usually ships in 2-12 days

0

43-1

Murray 94058

Bracket, Front Suspension

$3.99

$

Usually ships in 2-12 days

0

43-2

Murray 95057

Stiffener

$

$

Currently unavailable

43-3

Murray 26X249MA

Screw, 5/16-18 x 0.75

$

$

Not available

44

Murray 009X51MA

Bolt, Shoulder .375

$4.99

$

In Stock, only 2 left!

0

45

Murray 015X84MA

Nut, 3/8-16 Wdfllk Mack
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

50

Murray 94956-821

Bracket, Chute Attach

$

$

Currently unavailable

51

Murray 711661

Carr. Bolt, 5/16-18x.63

$

$

Not available

52

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

59

Murray 94686-821

Deflector Support

$

$

Currently unavailable

71

Murray 95295

Rod, Hanger

$

$

Currently unavailable

72

Murray 711676

Hair Pin

$

$

Currently unavailable

75

Murray 711624MA

Rivet, Semi

$3.99

$

Usually ships in 2-12 days

0
