42580x89A - Yard King 42" Lawn Tractor (2000) Rear Chassis Assembly Parts Diagram

42" Lawn Tractor

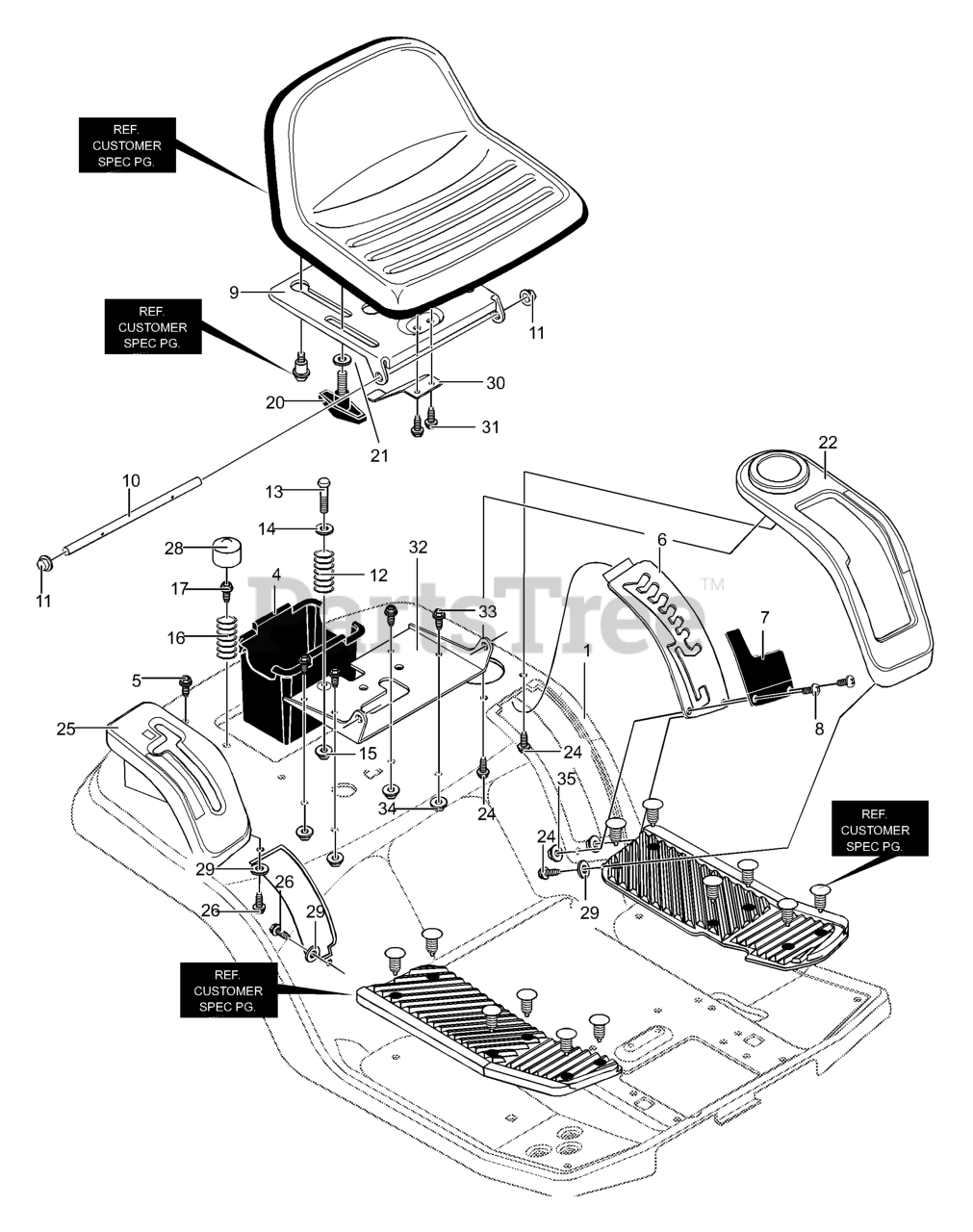

Rear Chassis Assembly Parts Diagram

  • Title
1

Murray 94628-823

SEAT DECK-LARGE

$

$

Currently unavailable

4

Murray 690424MA

CONTAINER, BATTERY

$45.99

$

In Stock, only 1 left!

0

5

Murray 711642MA

SCREW, 1/4-20X .63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

6

Murray 94194-821

PLATE LIFT DETENT

$

$

Currently unavailable

7

Murray 094492

LIFT DET LOCKOUT LG GREY

$

$

Not available

8

$23.99

$

Usually ships in 2-12 days

0

9

Murray 94154-823

SUPPORT, SEAT

$

$

Currently unavailable

10

Murray 95294

HINGE SEAT PIVOT

$

$

Not available

11

Murray 711627MA

NUT, PUSH CAP

$

$

Not available

12

Murray 710136-821

SPRING, COMPRESSION

$

$

Currently unavailable

13

Murray 711610

BOLT, SHOULDER

$

$

Not available

14

Murray 95293

WASHER CUP

$1.99

$

Usually ships in 2-12 days

0

15

$4.99

$

Usually ships in 2-12 days

0

16

Murray 710109-821

SPRING, COMPRESSION

$

$

Currently unavailable

17

$7.99

$

In Stock, only 2 left!

0

20

Murray 711747MA

BOLT, WING

$3.99

$

Usually ships in 2-12 days

0

21

Murray 711644MA

WASHER, FLAT

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094491

DETENT COVER W/CUP

$

$

Currently unavailable

24

$3.99

$

Usually ships in 2-12 days

0

25

Murray 094495

SHIFT COVER

$

$

Currently unavailable

26

Murray 711671MA

SCREW, 1/4-15X0.44

$3.99

$

Usually ships in 2-12 days

0

27

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

28

Murray 020107MA

CAP, HUB/SEAT SPRING

$4.49

$

Usually ships in 2-12 days

0

29

Murray 071067MA

WASH, FLAT

$82.99

$

In Stock, only 1 left!

0

30

Murray 094057MA

SPRING - LEAF

$5.99

$

Usually ships in 2-12 days

0

31

Murray 711592

SCREW, 1/4-20X.50

$335.99

$

Usually ships in 2-12 days

0

32

Murray 94153-823

BRACKET, PIVOT SEAT

$

$

Currently unavailable

33

Murray 711606MA

SCREW 5/16-18X.75

$7.99

$

In Stock, only 2 left!

0

34

Murray 711634MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

35

Murray 314159MA

NUT, #10-32

$3.49

$

Usually ships in 2-12 days

0
