42580x89A - Yard King 42" Lawn Tractor (2000) Deck Assembly (part 1) Parts Diagram

42" Lawn Tractor

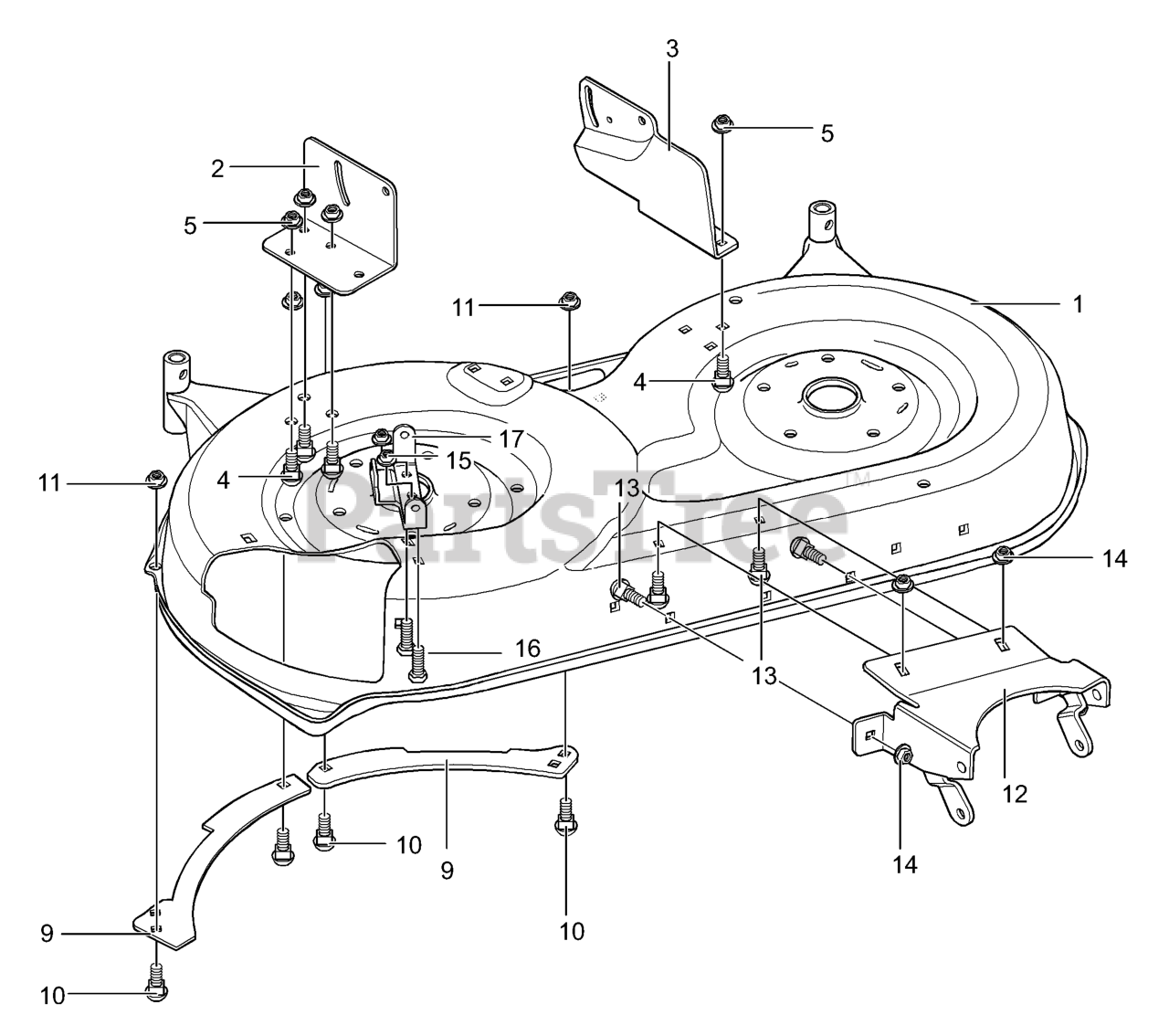

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 710144

42" BLADE HOUSING

$186.99

$

Usually ships in 2-12 days

0

2

Murray 94191

BRACKET, DECK RH

$

$

Currently unavailable

3

Murray 94192

BRACKET, DECK LH

$4.99

$

Usually ships in 2-12 days

0

4

Murray 002X53MA

BOLT, .31-18X0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

5

Murray 015X79MA

NUT, .32-18 FLANGELOCK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 92426

PLATE, REAR TOEGUARD
(Superseded to 092426E701MA)

$10.99

$

In Stock, only 1 left!

0

10

Murray 002X53MA

BOLT, .31-18X0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

11

Murray 015X88MA

NUT, .32-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 710143

BRACKET, FRONT DECK

$

$

Currently unavailable

13

Murray 002X53MA

BOLT, .31-18X0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

14

Murray 015X79MA

NUT, .31-18 FLANGELOCK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 015X88MA

NUT, .32-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

16

Murray 002X53MA

BOLT, .31-18X0.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

17

Murray 94956

BRACKET, CHUTE DEFLECTOR
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0
