4258 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

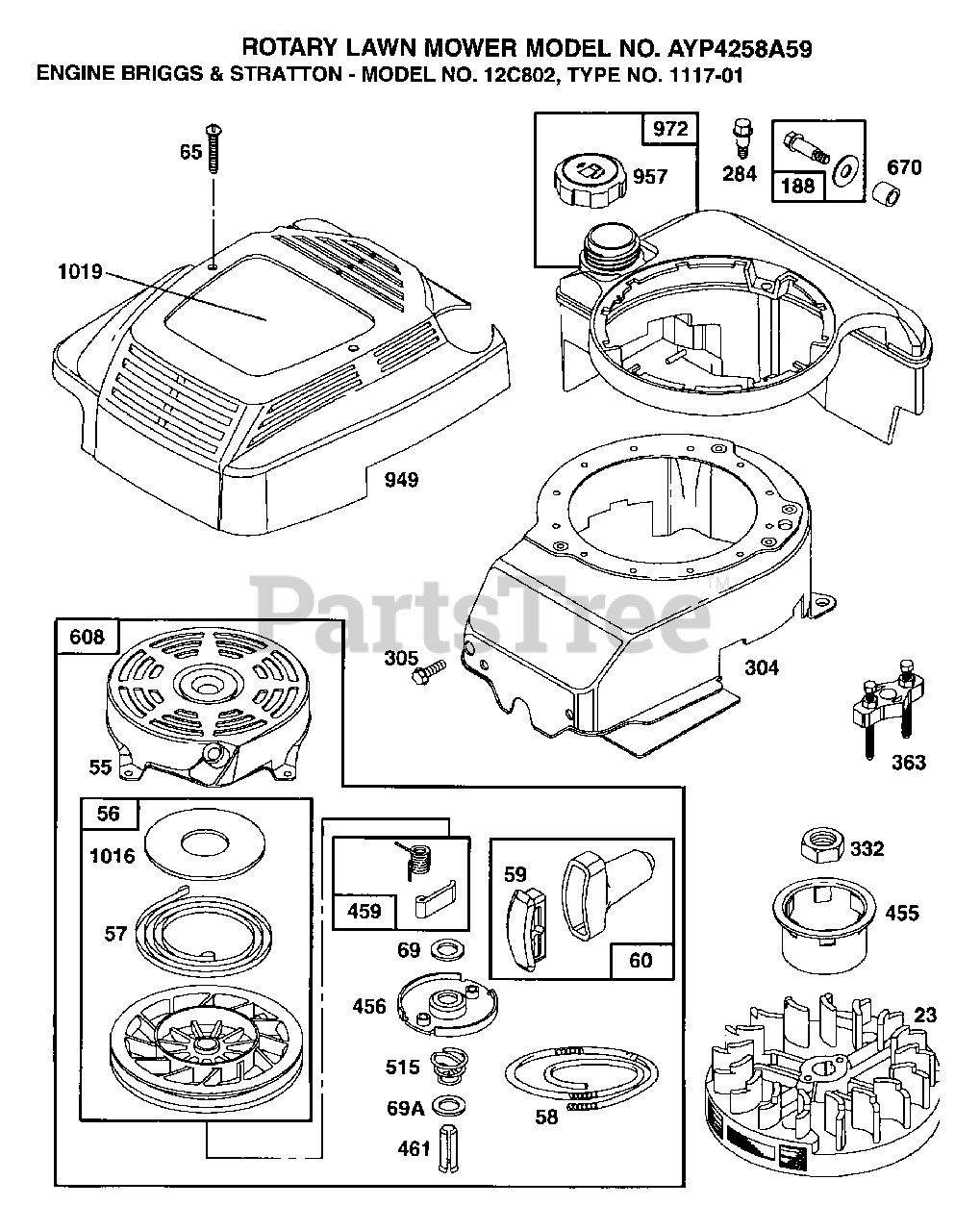

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

23

Briggs & Stratton 492177

FLYWHEEL
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 492831

HOUSING REWIND STARTER

$74.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 493824

PULLEY, REWIND STARTER

$

$

Not available

57

Briggs & Stratton 262594

SPRING, REWIND STARTER
(Superseded to 491889)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 280399

ROPE, REWIND STARTER (CUT TO 88-5/8)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 8

0

59

Briggs & Stratton 396892

INSERT, HANDLE

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94696

SCREW
(Superseded to 690700)

$3.99

$

In Stock, only 2 left!

0

69

Briggs & Stratton 280973

WASHER

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

WASHER

$5.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 398540

SCREW, HEX HEAD
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

284

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, only 2 left!

0

304

Briggs & Stratton 493293

HOUSING, BLOWER
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

332

Briggs & Stratton 92284

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 224250

CUP, STARTER

$9.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

RETAINER, REWIND STARTER

$8.99

$

In Stock, only 2 left!

0

459

Briggs & Stratton 492833

PAWL, STARTER

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

PIN, STARTER

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262625

SPRING, TORSION

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 493295

STARTER ASSY REWIND
(Superseded to 497598)

$75.99

$

In Stock, only 2 left!

0

Briggs & Stratton 94128

SCREW, HEX HEAD
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 92987

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

670

Briggs & Stratton 280512

SPACER, FUEL TANK
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

949

Briggs & Stratton 497233

GUARD, FINGER

$60.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 397974

CAP, FUEL TANK
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

TANK ASSY FUEL
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

1016

Briggs & Stratton 224278

COVER, REWIND STARTER

$3.49

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 495354

LABEL KIT
(Superseded to 498606)

$27.99

$

Usually ships in 2-12 days

0
