42576x92B - Briggs & Stratton 42" Lawn Tractor (2000) Motion Drive Parts Diagram

42" Lawn Tractor

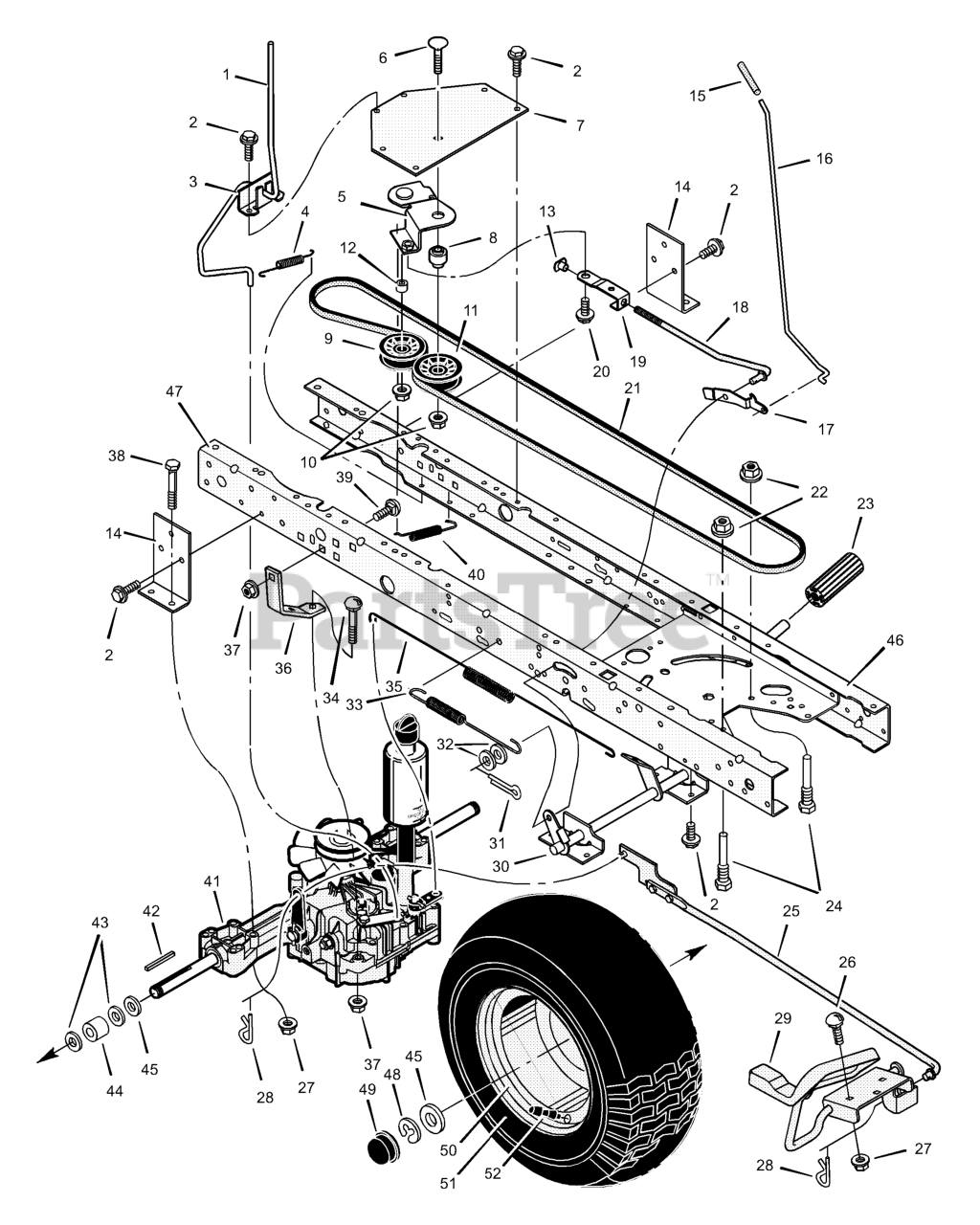

Motion Drive Parts Diagram

  • Title

1

Murray 1001025 Z

Rod, Roll Release

$

$

Currently unavailable

2

Murray 26X249MA

Screw

$

$

Not available

3

Murray 690237

Bracket, Disconnect
(Superseded to 842122)

$5.49

$

In Stock, only 4 left!

0

4

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

5

Murray 1001018 Z

Assembly, Idler Arm

$

$

Currently unavailable

6

Murray 002X92

Bolt, Carriage
(Superseded to 002X92MA)

$4.99

$

In Stock, only 4 left!

0

7

Murray 1001005E700

Bracket, Idler Pivot

$

$

Currently unavailable

8

Murray 1001012MA

Bushing, Pivot

$9.49

$

Usually ships in 2-12 days

0

9

Murray 690410MA

Pulley, Idler

$19.99

$

In Stock, only 1 left!

0

10

Murray 015X98MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

11

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

12

Murray 690369MA

Spacer

$

$

Not available

13

Murray 1001014MA

Nut, Tee

$4.99

$

Usually ships in 2-12 days

0

14

Murray 094008E701MA

Bracket, Transaxle

$34.99

$

Usually ships in 2-12 days

0

15

Murray 091079MA

Grip

$3.49

$

Usually ships in 2-12 days

0

16

Murray 094152 Z

Rod, Parking Brake

$

$

Currently unavailable

17

Murray 094045 Z

Latch, Parking Brake

$

$

Currently unavailable

18

Murray 1001013 Z

Rod, Parking Brake

$

$

Currently unavailable

19

Murray 1001007 Z

Link, Clutch

$

$

Currently unavailable

20

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

21

Murray 37X106MA

Belt, Drive

$43.99

$

In Stock, only 1 left!

0

22

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Murray 021544MA

Pedal
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

24

Murray 094384MA

Guide, Belt

$4.49

$

Usually ships in 2-12 days

0

25

Murray 1001019

Assembly, Control Rod

$27.99

$

Usually ships in 2-12 days

0

26

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

27

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

28

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

29

Murray 1001072

Pedal, Speed Control

$

$

Currently unavailable

30

Murray 1001011

Assembly, Brake Pedal

$

$

Currently unavailable

31

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

32

Murray 017X48MA

Washer

$8.49

$

Usually ships in 2-12 days

0

33

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

34

Murray 002X88MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

35

Murray 165X145

Spring, Brake

$

$

Currently unavailable

36

Murray 1001004

Strap, Torque

$

$

Currently unavailable

37

Murray 015X84MA

Locknut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 01X155MA

Bolt
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

39

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

40

Murray 165X144MA

Spring, Clutch

$10.99

$

Usually ships in 2-12 days

0

41

Transmission *

$

$

Not available

42

Murray 021553MA

Key, Square

$4.99

$

In Stock, only 2 left!

0

43

Murray 17X160MA

Washer

$4.99

$

In Stock, Qty 20+

0

44

Murray 1001043 Z

Spacer

$

$

Currently unavailable

45

Murray 17X195MA

Washer

$4.99

$

In Stock, Qty 5

0

46

Murray 1001023E700

Frame, Left

$

$

Currently unavailable

47

Murray 1001022E700

Frame, Right

$

$

Currently unavailable

48

Murray 011X23MA

E-Ring

$4.49

$

In Stock, only 3 left!

0

49

Murray 094618MA

Cap, Hub

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0

50

Murray 092290601

Wheel & Tire Assembly

$262.99

$

Usually ships in 2-12 days

0

51

Murray 092374MA

Tire *

$179.99

$

Usually ships in 2-12 days

0

--

Murray 407049MA

Tube

$68.99

$

Usually ships in 2-12 days

0

52

Murray 024373MA

Stem, Valve

$

$

Not available
