42564x59A - Murray 42" Lawn Tractor (1997) Chassis & Hood Parts Diagram

42" Lawn Tractor

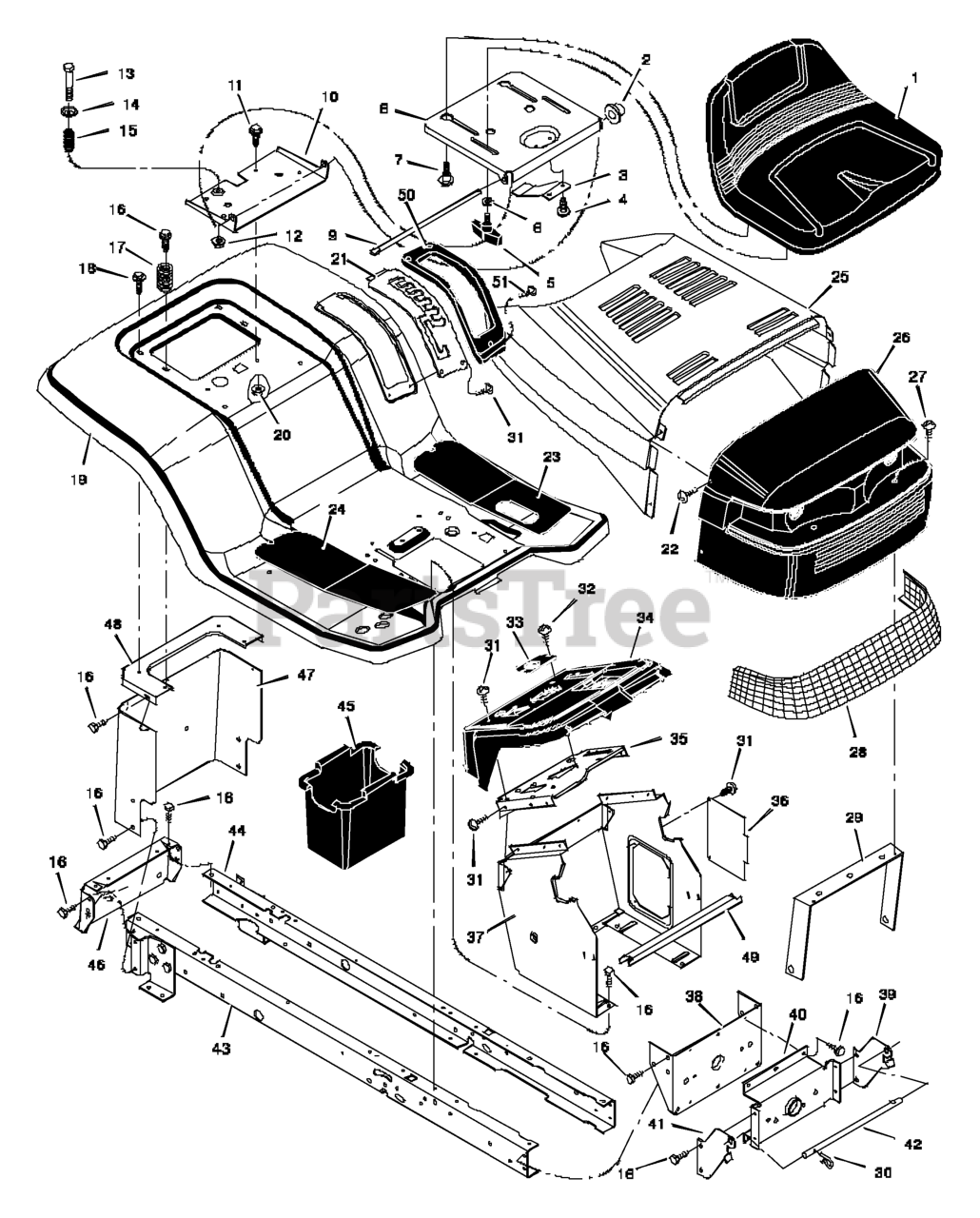

Chassis & Hood Parts Diagram

  • Title

1

Murray 94804

Seat
(Superseded to 94804GS)

$9.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

Murray 094057MA

Spring

$5.99

$

Usually ships in 2-12 days

0

4

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 094160

Bolt, Wing

$

$

Not available

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 94154E701

Support, Seat

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 94153E701

Bracket, Pivot

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249MA

Screw

$

$

Not available

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 094489E245

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 94886E701

Plate, Index

$53.99

$

Usually ships in 2-12 days

0

22

Murray 009X47MA

Screw

$4.49

$

Usually ships in 2-12 days

0

23

Murray 095437

Mat, Left

$25.99

$

Usually ships in 2-12 days

0

24

Murray 095438

Mat, Right

$25.99

$

Usually ships in 2-12 days

0

25

Murray 093215E245MA

Hood
(Superseded to 093215E701MA)

$387.99

$

Usually ships in 2-12 days

0

26

Murray 93243E717

Grille Assembly

Note: (Includes Lens)

$

$

Currently unavailable

27

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

28

Murray 093139MA

Lens

$95.99

$

Usually ships in 2-12 days

0

29

Murray 093190MA

Brace, Grille

$50.99

$

Usually ships in 2-12 days

0

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094219MA

Bearing, Steering

$

$

Not available

34

Murray 095034

Dash

$

$

Currently unavailable

35

Murray 94221E701

Plate, Dash

$39.99

$

Usually ships in 2-12 days

0

36

Murray 93007E717

Panel, Access

$

$

Currently unavailable

37

Murray 94220E717

Support, Dash

$

$

Currently unavailable

38

Murray 094013E701MA

Bracket, Rear Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

39

Murray 94213E701

Support, Left Grille

$

$

Currently unavailable

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 94212E701

Support, Right Grille

$

$

Currently unavailable

42

Murray 093137 Z

Rod, Pivot

$

$

Currently unavailable

43

Murray 94000E701

Frame, Right

$

$

Currently unavailable

44

Murray 94001 E701

Frame, Left

$

$

Currently unavailable

45

Murray 094069

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 94002E717MA

Plate, Hitch

$

$

Not available

47

Murray 94187E717

Panel, Rear

$

$

Currently unavailable

48

Murray 94186

Plate, Rear
(Superseded to 690367)

$3.99

$

Usually ships in 2-12 days

0

49

Murray 94222E701

Channel

$

$

Currently unavailable

50

Murray 094490

Cover

$

$

Currently unavailable

51

Murray 26X284MA

Screw

$3.99

$

Usually ships in 2-12 days

0

--

Murray 44X7118

Decal, Right Hood

$

$

Currently unavailable

--

Murray 44X7119

Decal, Left Hood

$

$

Currently unavailable

--

Murray 44X6815MA

Decal, Warning

$9.99

$

Usually ships in 2-12 days

0

--

Murray F-97832

Book, Instruction

$

$

Currently unavailable

--

Murray F-97833

Book, Instruction

$

$

Currently unavailable

--

Murray F-97834

Parts List

$

$

Currently unavailable
