42564x50A - Murray 42" Lawn Tractor (1997) Mower Housing Suspension Parts Diagram

42" Lawn Tractor

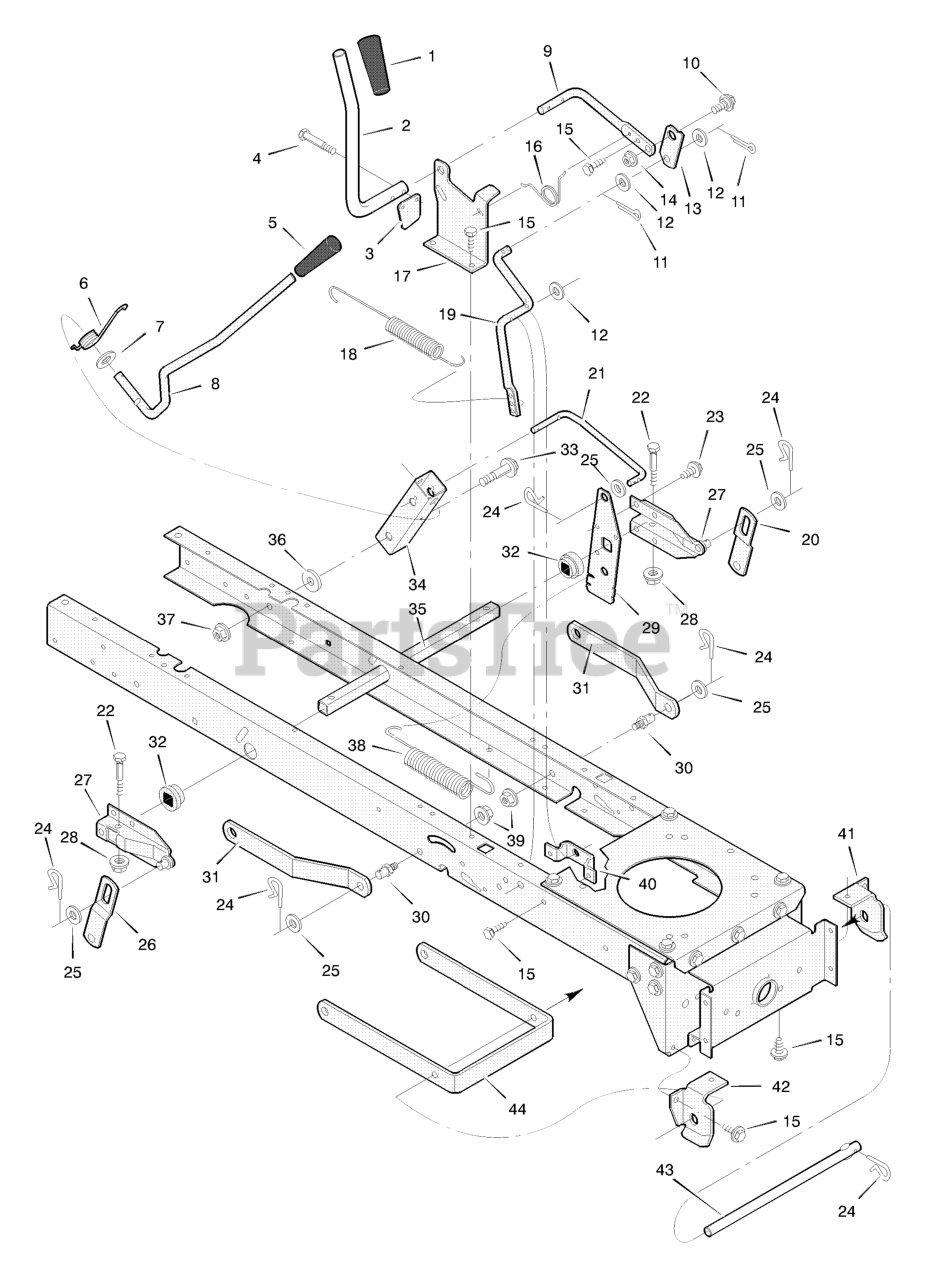

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 092698MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 094217 Z

Handle, PTO

$

$

Currently unavailable

3

Murray 094022 Z

Pad, Switch

$

$

Currently unavailable

4

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

5

Murray 092697MA

Grip
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

6

$6.49

$

Usually ships in 2-12 days

0

7

$4.99

$

In Stock, only 2 left!

0

8

Murray 690533MA

Lever, Lift

$40.99

$

In Stock, only 1 left!

0

9

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 5

0

11

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

14

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

$

$

Not available

16

$5.49

$

Usually ships in 2-12 days

0

17

Murray 94018

Bracket, PTO
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

18

$13.99

$

In Stock, only 1 left!

0

19

Murray 94019 D

Crank, PTO

$

$

Currently unavailable

20

Murray 094611E701MA

Link, Left Lift

$48.99

$

Usually ships in 2-12 days

0

21

Murray 94028E700

Link, Lift

$

$

Currently unavailable

22

$3.49

$

Usually ships in 2-12 days

0

23

$4.49

$

In Stock, only 2 left!

0

24

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

$

$

Currently unavailable

26

Murray 094053E701MA

Link, Right Lift

$35.99

$

In Stock, only 1 left!

0

27

Murray 094180E700

Lever Assembly, Lift

$

$

Currently unavailable

28

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

29

Murray 094030E700

Plate, Lift Arm

$

$

Currently unavailable

30

Murray 094067MA

Pin
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

31

Murray 094055E701MA

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

32

Murray 094065MA

Bushing

$4.49

$

Usually ships in 2-12 days

0

33

Murray 009X53MA

Bolt, Shoulder

$6.99

$

Usually ships in 2-12 days

0

34

Murray 094015E700

Bracket, Pivot

$

$

Currently unavailable

35

Murray 094063E700

Tube, Deck Lift

$17.99

$

Usually ships in 2-12 days

0

36

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

$15.99

$

In Stock, only 1 left!

0

39

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 094005E700

Bracket, PTO

$

$

Not available

41

Murray 094027E701MA

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

42

Murray 094026E701MA

Hanger, Right Deck

$22.99

$

Usually ships in 2-12 days

0

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 690539E701MA

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0
