425640x50B-SW - Murray 42" Lawn Tractor (2006) Motion Drive Parts Diagram

42" Lawn Tractor

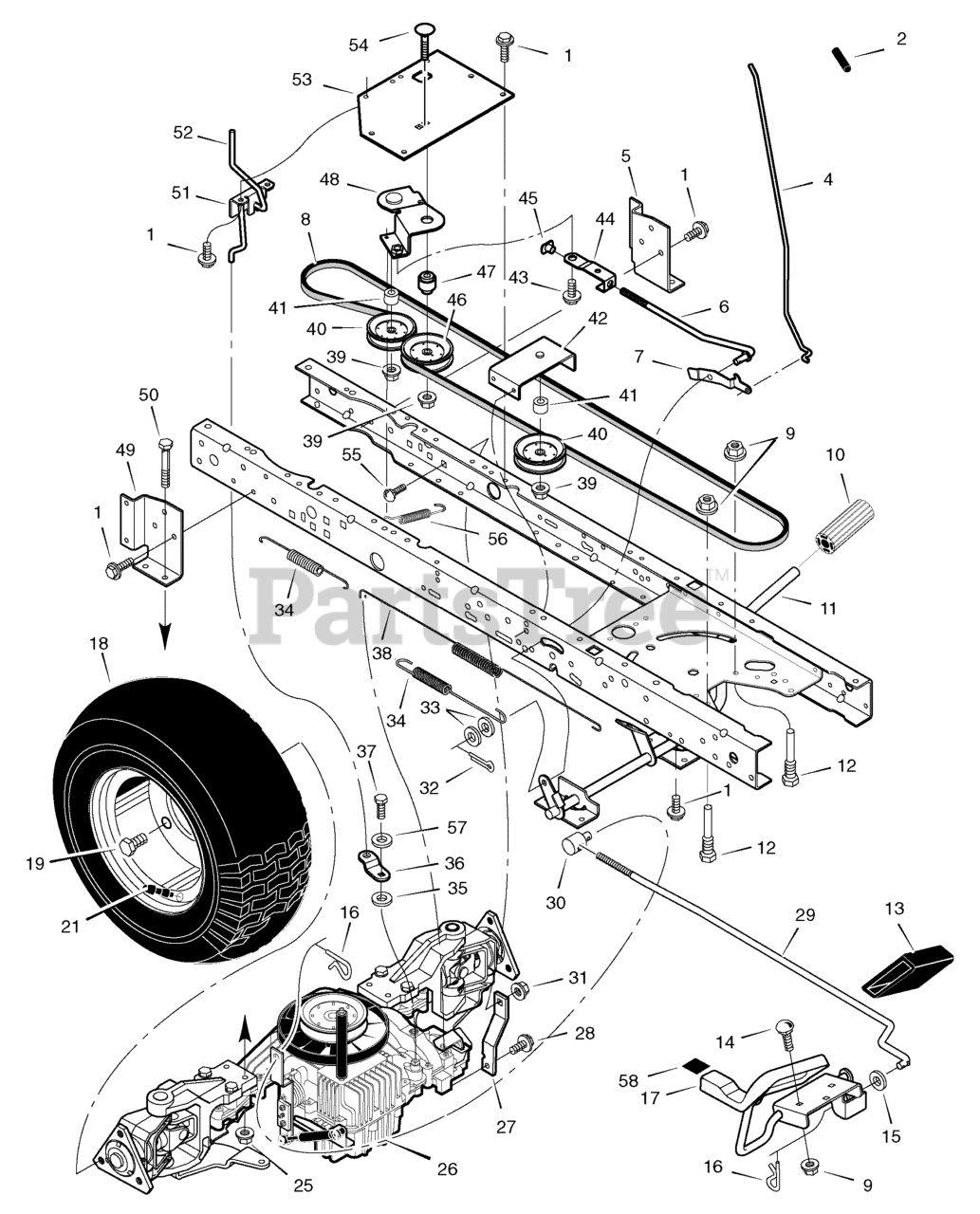

Motion Drive Parts Diagram

  • Title

1

Murray 26X249MA

Screw

$

$

Not available

2

Murray 091079MA

Grip, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1001245ZMA

Rod, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

5

Murray 1001890E701MA

Bracket, Left Transaxle

$40.99

$

Usually ships in 2-12 days

0

6

Murray 1001013ZMA

Rod, Clutch

$26.99

$

Usually ships in 2-12 days

0

7

Murray 094045ZMA

Latch, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

8

Murray 37X106MA

V--Belt, Drive

$43.99

$

In Stock, only 1 left!

0

9

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 021544MA

Pedal, Brake/Clutch
(Superseded to 1727261SM)

$9.99

$

In Stock, Qty 5

0

11

Murray 1001011E701MA

Assembly, Brake Pedal

$43.99

$

Usually ships in 2-12 days

0

12

Murray 094384MA

Screw, Guide

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094798MA

Pad, Pedal

$28.99

$

Usually ships in 2-12 days

0

14

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

15

Murray 017X57MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 1001936E701MA

Pedal Assembly, Hydro

$96.99

$

Usually ships in 2-12 days

0

18

Murray 1001942804MA

Wheel & Tire Assembly

$230.99

$

Usually ships in 2-12 days

0

-

Murray 407926MA

Tire ONLY *

$179.99

$

Usually ships in 2-12 days

0

-

Murray 407049MA

Tube ONLY

$68.99

$

Usually ships in 2-12 days

0

19

Murray 181683MA

Screw

$6.99

$

Usually ships in 2-12 days

0

21

Murray 024373MA

Stem, Valve

$

$

Not available

25

Murray 015X88MA

Nut, Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

26

Transaxle

$

$

Not available

27

Murray 1001085E701MA

Strap, Torque

$10.99

$

Usually ships in 2-12 days

0

28

Murray 26X216MA

Screw

$6.99

$

In Stock, Qty 5

0

29

Murray 1001929ZMA

Rod, Control

$37.99

$

Usually ships in 2-12 days

0

30

Murray 092132ZMA

Nut, Adjusting

$14.99

$

Usually ships in 2-12 days

0

31

Murray 015X84MA

Nut, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 017X48MA

Washer

$8.49

$

Usually ships in 2-12 days

0

34

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

35

Murray 17X148MA

Washer

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1001086ZMA

Arm, Disconnect

$34.99

$

Usually ships in 2-12 days

0

37

Murray 06X105MA

Capscrew

$3.99

$

In Stock, only 1 left!

0

38

Murray 165X150MA

Spring, Brake

$29.99

$

In Stock, only 1 left!

0

39

Murray 015X98MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

41

Murray 690369MA

Spacer

$

$

Not available

42

Murray 1001097E701MA

Bracket Assembly, Idler

$22.99

$

Usually ships in 2-12 days

0

43

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

44

Murray 1001007ZMA

Link, Clutch

$5.49

$

Usually ships in 2-12 days

0

45

Murray 1001014MA

Nut, Tee

$4.99

$

Usually ships in 2-12 days

0

46

Murray 690410MA

Pulley, Idler

$19.99

$

In Stock, only 1 left!

0

47

Murray 1001012MA

Bushing, Pivot

$9.49

$

Usually ships in 2-12 days

0

48

Murray 1001018ZMA

Arm Assembly, Idler

$

$

Not available

49

Murray 1001891E701MA

Bracket, Right Transaxle

$40.99

$

Usually ships in 2-12 days

0

50

Murray 01X198MA

Screw

$3.99

$

Usually ships in 2-12 days

0

51

Murray 1001214ZMA

Bracket, Disconnect

$9.99

$

Usually ships in 2-12 days

0

52

Murray 1001215ZMA

Rod, Disconnect

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001108E701MA

Bracket, Idler Pivot

$24.99

$

Usually ships in 2-12 days

0

54

Murray 002X92MA

Bolt, Carriage

$4.99

$

In Stock, only 4 left!

0

55

Murray 002X78MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

56

Murray 165X155MA

Spring, Clutch

$6.49

$

In Stock, only 1 left!

0

57

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

58

Murray 093249MA

Pad

$3.49

$

Usually ships in 2-12 days

0
