425638x692A - Stanley 42" Lawn Tractor (2003) Rear Body Parts Diagram

42" Lawn Tractor

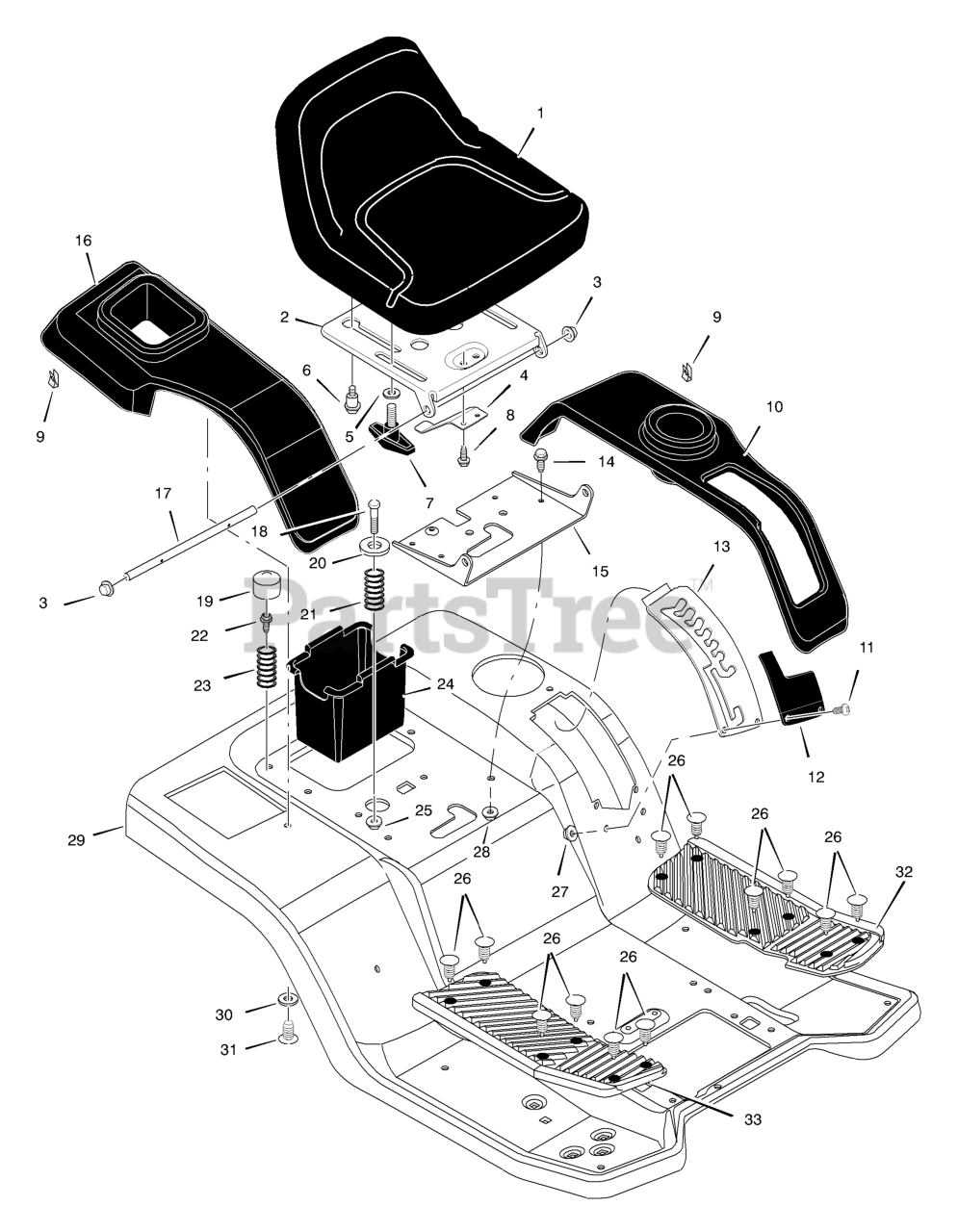

Rear Body Parts Diagram

  • Title
1

Murray 1001028MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

3

Murray 028X23MA

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

4

Murray 094057MA

Spring, Leaf

$5.99

$

Usually ships in 2-12 days

0

5

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

7

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

8

$4.49

$

In Stock, only 1 left!

0

9

$

$

Not available

10

Murray 1001095

Panel, Shoulder -Left

$16.99

$

Usually ships in 2-12 days

0

11

Murray 009X47MA

Bolt, Shoulder

$4.49

$

Usually ships in 2-12 days

0

12

Murray 094483

Cover, Detent Lockout

$

$

Currently unavailable

13

Murray 094194E701MA

Plate, Lift Detent

$50.99

$

In Stock, only 1 left!

0

14

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

15

Murray 094153E700MA

Bracket, Pivot
(Superseded to 1001648E701MA)

$42.99

$

Usually ships in 2-12 days

0

16

Murray 1001094

Panel, Shoulder -Right

$

$

Not available

17

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

18

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

$4.49

$

Usually ships in 2-12 days

0

20

Murray 094155 Z

Washer, Cup

$

$

Currently unavailable

21

Murray 164X31

Spring, Compression
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

22

$

$

Not available

23

Murray 164X30MA

Spring, Compression

$15.99

$

Usually ships in 2-12 days

0

24

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

25

Murray 015X89MA

Nut, Centerlock

$4.49

$

Usually ships in 2-12 days

0

26

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

27

Murray 015X81MA

Locknut

$4.99

$

Usually ships in 2-12 days

0

28

Murray 15X123MA

Nut, Nylock

$3.99

$

Usually ships in 2-12 days

0

29

Murray 1001099E700

Deck, Seat

$

$

Currently unavailable

30

Murray 17X207

Washer

$

$

Not available

31

$3.99

$

Usually ships in 2-12 days

0

32

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

33

Murray 095409

Mat, Right
(Superseded to 095409MA)

$32.99

$

Usually ships in 2-12 days

0
