425621x53A - Murray 42" Lawn Tractor (2004) Chassis & Hood Parts Diagram

42" Lawn Tractor

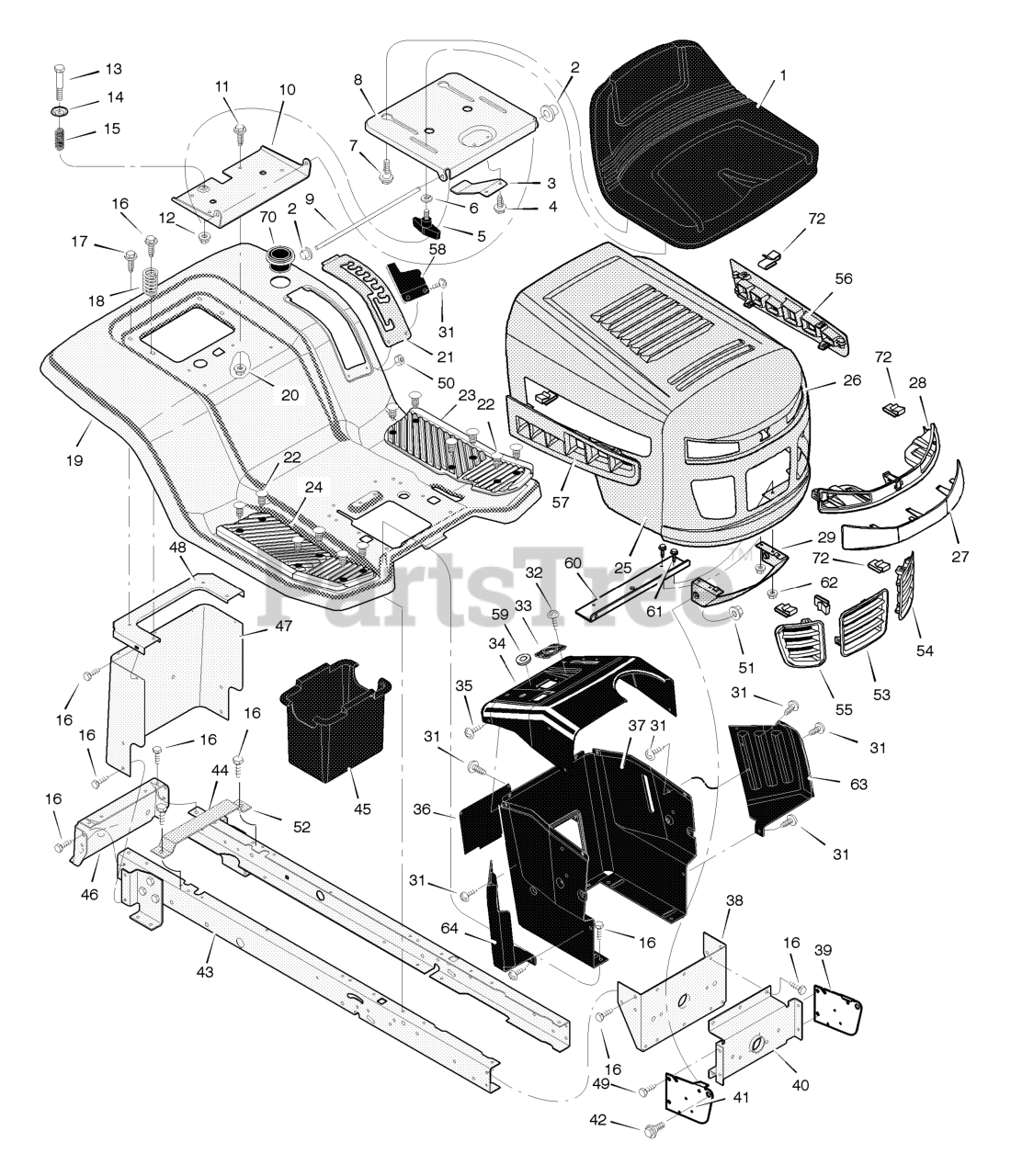

Chassis & Hood Parts Diagram

  • Title

$433.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

$

$

Not available

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094886E701

Plate, Index

$53.99

$

Usually ships in 2-12 days

0

22

Murray 0193X1MA

Plug, Panel

$3.99

$

In Stock, only 1 left!

0

23

Murray 095408

Mat, Left
(Superseded to 095408MA)

$30.99

$

Usually ships in 2-12 days

0

24

Murray 099409

Mat, Right

$

$

Currently unavailable

$267.99

$

Usually ships in 2-12 days

0

$205.99

$

Usually ships in 2-12 days

0

$53.99

$

Usually ships in 2-12 days

0

28

Murray 1001819MA

Housing, Light

$36.99

$

Usually ships in 2-12 days

0

29

Murray 1001799

Bracket, Lower Pivot

$

$

Currently unavailable

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

Bearing, Steering

$5.49

$

Usually ships in 2-12 days

0

$125.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E700

Panel, Access

$

$

Currently unavailable

37

Murray 095318E700

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E701MA

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 094085E701MA

Support, Left Grille

$

$

Not available

40

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 094084E701MA

Support, Right Grille

$

$

Not available

42

Murray 009X58MA

Bolt, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001268E701

Frame, Right

$

$

Not available

44

Murray 1001269E701MA

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 1001906E700

Plate, Rear

$42.99

$

Usually ships in 2-12 days

0

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

49

$4.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

51

$

$

Not available

52

Murray 690482E701

Support, Battery

$

$

Not available

53

Murray 1001816MA

Insert, Center Grille

$10.99

$

Usually ships in 2-12 days

0

54

Murray 1001817MA

Insert, Left Grille

$5.99

$

Usually ships in 2-12 days

0

55

Murray 1001818MA

Insert, Right Grille

$6.49

$

Usually ships in 2-12 days

0

56

Murray 1001814MA

Insert, Left Hood

$30.99

$

Usually ships in 2-12 days

0

57

Murray 1001815MA

Insert, Right Hood

$30.99

$

Usually ships in 2-12 days

0

58

Murray 094680MA

Cover, Detent

$7.49

$

In Stock, only 1 left!

0

59

Murray 1001755MA

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

60

Murray 1001921

Bracket, Support

$

$

Currently unavailable

61

$4.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 2-12 days

0

63

Murray 095218MA

Panel, Left Side

$38.99

$

Usually ships in 2-12 days

0

64

Murray 095217MA

Panel, Right Side

$38.99

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

72

Murray 028X83MA

Retainer, S-Clip

$3.99

$

In Stock, only 2 left!

0

--

Murray 1001295

Parts Bag, Assy

$

$

Not available

--

Murray F-040778L

Instruction Book & Parts List

$

$

Currently unavailable
