425621x108A - Murray 42" Lawn Tractor (2005) Drive Assembly Parts Diagram

42" Lawn Tractor

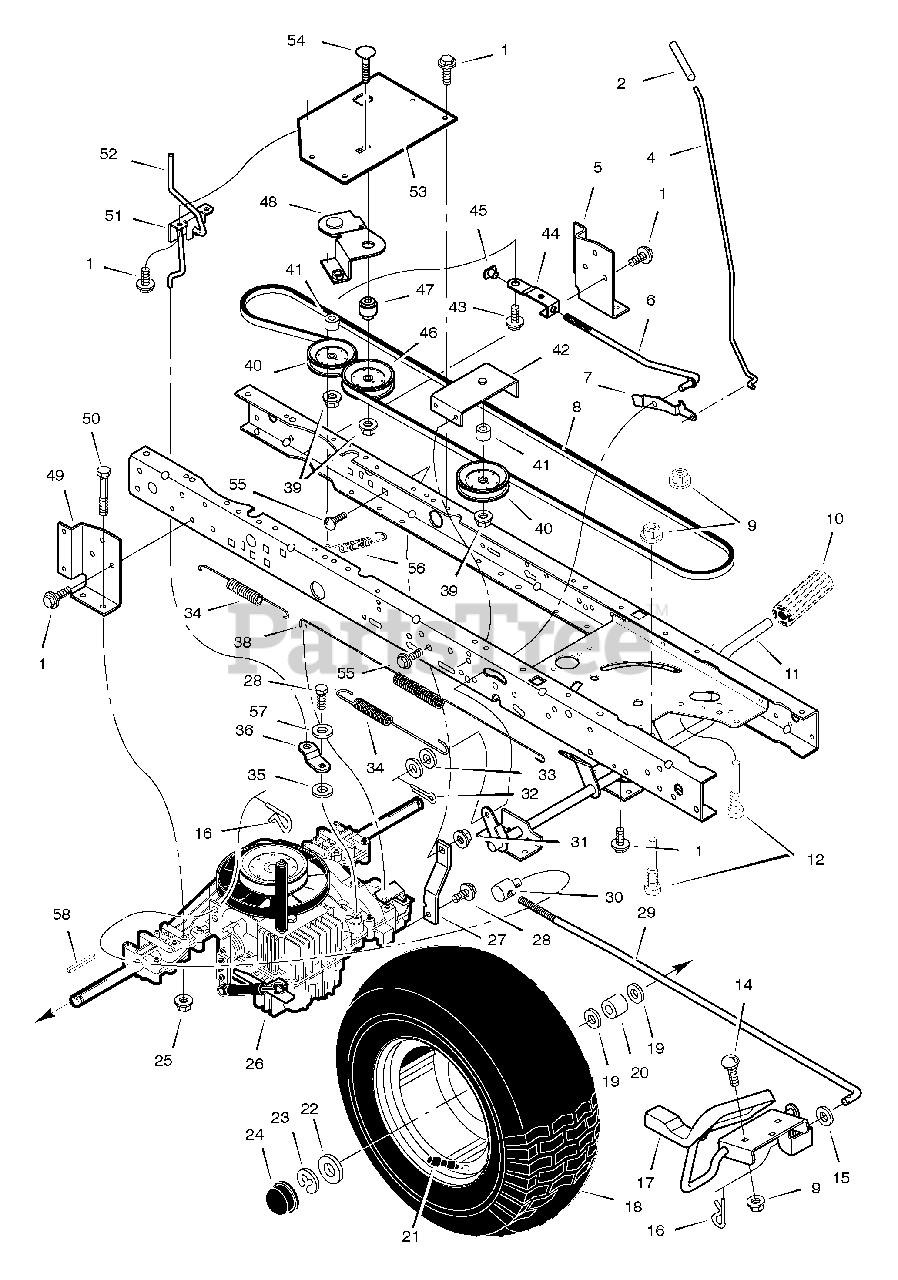

Drive Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Murray 091079MA

Grip, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1001245 Z

Rod, Parking Brake

$

$

Currently unavailable

5

Murray 094185E701MA

Bracket, Left Transaxle

$60.99

$

Usually ships in 2-12 days

0

6

Murray 1001013 Z

Rod, Clutch

$

$

Currently unavailable

7

Murray 094045ZMA

Latch, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

8

Murray 37X106MA

V-Belt, Drive

$43.99

$

In Stock, only 1 left!

0

9

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Murray 021544MA

Pedal, Brake/Clutch
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

11

Murray 1001011E701

Assembly, Brake Pedal

$

$

Not available

12

Murray 094384MA

Screw, Guide

$4.49

$

Usually ships in 2-12 days

0

14

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

15

$4.49

$

Usually ships in 2-12 days

0

16

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

17

Murray 1001985E701

Pedal Assembly, Hydro

$125.99

$

Usually ships in 2-12 days

0

18

Murray 092300-601

Wheel & Tire Ass'y, Rear

$

$

Currently unavailable

--

Murray 024430

Tire ONLY *

$

$

Currently unavailable

--

Murray 407049MA

Tube ONLY

$68.99

$

Usually ships in 2-12 days

0

19

$4.99

$

In Stock, Qty 20+

0

20

Murray 690554 Z

Spacer
(Superseded to 690554ZMA)

$17.99

$

In Stock, only 2 left!

0

21

Murray 024373MA

Stem, Valve

$

$

Not available

22

$4.99

$

In Stock, Qty 5

0

23

$5.49

$

In Stock, Qty 17

0

24

Murray 094618MA

Cap, Hub

$5.99

$

In Stock, only 4 left!

0

25

Murray 015X88MA

Nut, Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

26

Transaxle, Peerless Hydro **

$

$

Not available

27

Murray 1001085E701

Strap, Torque

$10.99

$

Usually ships in 2-12 days

0

28

$6.99

$

In Stock, Qty 5

0

29

Murray 1001234 Z

Rod, Control

$

$

Currently unavailable

30

Murray 092132ZMA

NUT, Adjusting

$14.99

$

Usually ships in 2-12 days

0

31

Murray 015X84MA

Nut, Centerlock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

$8.49

$

Usually ships in 2-12 days

0

34

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

35

$3.99

$

Usually ships in 2-12 days

0

36

Murray 1001086ZMA

ARM, Disconnect

$34.99

$

Usually ships in 2-12 days

0

37

Murray 06X105MA

Capscrew

$3.99

$

In Stock, only 1 left!

0

38

Murray 165X150MA

Spring, Brake

$29.99

$

In Stock, only 1 left!

0

39

Murray 015X98MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Murray 690409MA

Pulley, Idler

$19.99

$

In Stock, Qty 13

0

41

$

$

Not available

42

Murray 1001097E701

Bracket, Idler Assembly

$22.99

$

Usually ships in 2-12 days

0

43

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

44

Murray 1001007 Z

Link, Clutch

$

$

Currently unavailable

45

Murray 1001014MA

Nut, Tee

$4.99

$

Usually ships in 2-12 days

0

46

Murray 690410MA

Pulley, Idler

$19.99

$

In Stock, only 1 left!

0

47

Murray 1001012MA

Bushing, Pivot

$9.49

$

Usually ships in 2-12 days

0

48

Murray 1001018 Z

Arm Assembly, Idler

$

$

Currently unavailable

49

Murray 094184E701MA

Bracket, Right Transaxle

$60.99

$

Usually ships in 2-12 days

0

50

Murray 01X155MA

Bolt, Hex
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

51

Murray 1001214 Z

Bracket, Dump Valve

$

$

Currently unavailable

52

Murray 1001215ZMA

Rod, Roll Release

$16.99

$

Usually ships in 2-12 days

0

53

Murray 1001108E701

Bracket, Idler Pivot
(Superseded to 726355BMYP)

$42.99

$

Usually ships in 2-12 days

0

54

Murray 002X92

Bolt, Carriage
(Superseded to 002X92MA)

$4.99

$

In Stock, only 4 left!

0

55

Murray 002X78

Bolt, Carriage
(Superseded to 002X78MA)

$3.49

$

Usually ships in 2-12 days

0

56

Murray 165X155MA

Spring, Clutch

$6.49

$

In Stock, only 1 left!

0

57

$3.99

$

Usually ships in 2-12 days

0

58

Murray 021553MA

Key, Square 3/16"

$4.99

$

In Stock, only 2 left!

0
