42561x8B - Scotts 42" Lawn Tractor (1997) Mower Housing Assembly (part 2) Parts Diagram

42" Lawn Tractor

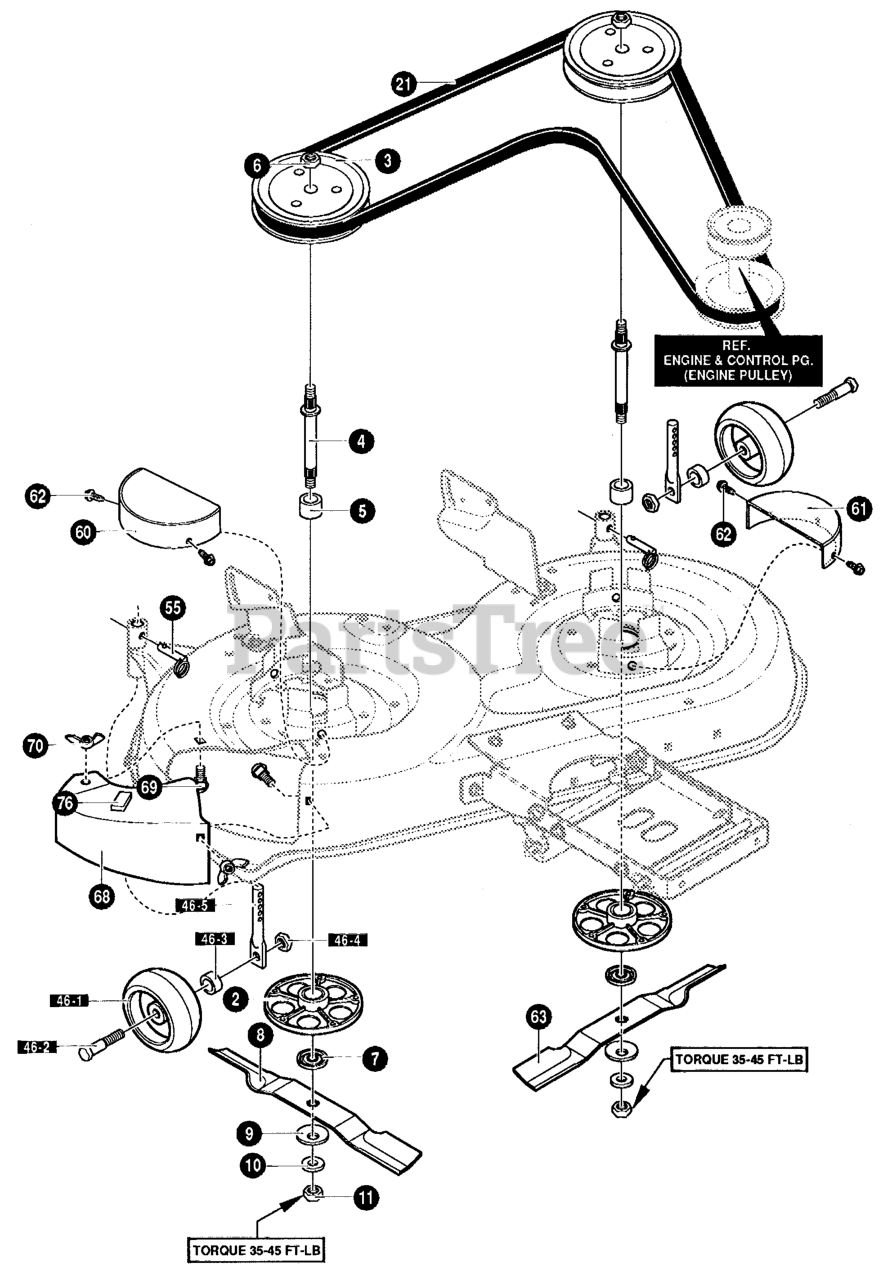

Mower Housing Assembly (part 2) Parts Diagram

  • Title
2

Murray 92574

JACKSHAFT HOUSING 42"

$

$

Not available

3

Murray 94199

PULLEY, 42" INPUT

$31.99

$

In Stock, only 3 left!

0

4

Murray 94129

JACKSHAFT

$21.99

$

In Stock, Qty 11

0

5

Murray 94130

SPACER

$5.99

$

In Stock, Qty 12

0

6

Murray 15X121

NUT, 9/16-18 UNF- 2B

$9.99

$

In Stock, Qty 7

0

7

Murray 92466

ADAPTER, DECK/BLADE 38"

$9.99

$

In Stock, only 1 left!

0

8

Murray 92545E701

BLADE, 3 N 1 42" RH

$27.99

$

Usually ships in 2-12 days

0

9

Murray 17X166MA

WASHER, FLAT

$13.99

$

In Stock, Qty 18

0

10

Murray 17X165MA

WASHER, FLAT

$16.99

$

In Stock, only 4 left!

0

11

Murray 15X100MA

NUT, 9/16

$3.99

$

In Stock, Qty 10

0

21

Murray 037X88MA

BELT, 42" DECK

$33.99

$

In Stock, Qty 20+

0

46-1

Murray 92265

WHEEL GAUGE

$2.49

$

Usually ships in 2-12 days

0

46-2

Murray 009X23

BOLT, SHOULDER

$

$

Currently unavailable

46-3

Murray 17X102MA

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

46-4

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

46-5

Murray 94671

ROD, GAUGE WHEEL
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

55

Murray 94584

PIN, DETENT RING
(Superseded to 691129)

$3.99

$

In Stock, Qty 6

0

60

Murray 94669E701MA

GUARD, Belt R.H.

$42.99

$

Usually ships in 2-12 days

0

61

Murray 94668E717MA

GUARD, Pulley L.H.
(Superseded to 094668E701MA)

$34.99

$

Usually ships in 2-12 days

0

62

Murray 26X263MA

SCREW, 1/4-20X.63

$4.99

$

In Stock, only 1 left!

0

63

Murray 56252E701

BLADE, 3 N 1 42" LH

$31.99

$

In Stock, only 2 left!

0

68

Murray 56253E700

COVER, DISCHARGE

$

$

Not available

69

Murray 002X64MA

BOLT, 5/16-18X .75

$4.49

$

In Stock, only 1 left!

0

70

Murray 014X86MA

NUT, WING 5/16-18
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

76

Murray 92444

ADHESIVE PAD

$1.99

$

Usually ships in 2-12 days

0
