42561x8A - Murray 42" Lawn Tractor (1997) Mower Suspension Assembly Parts Diagram

42" Lawn Tractor

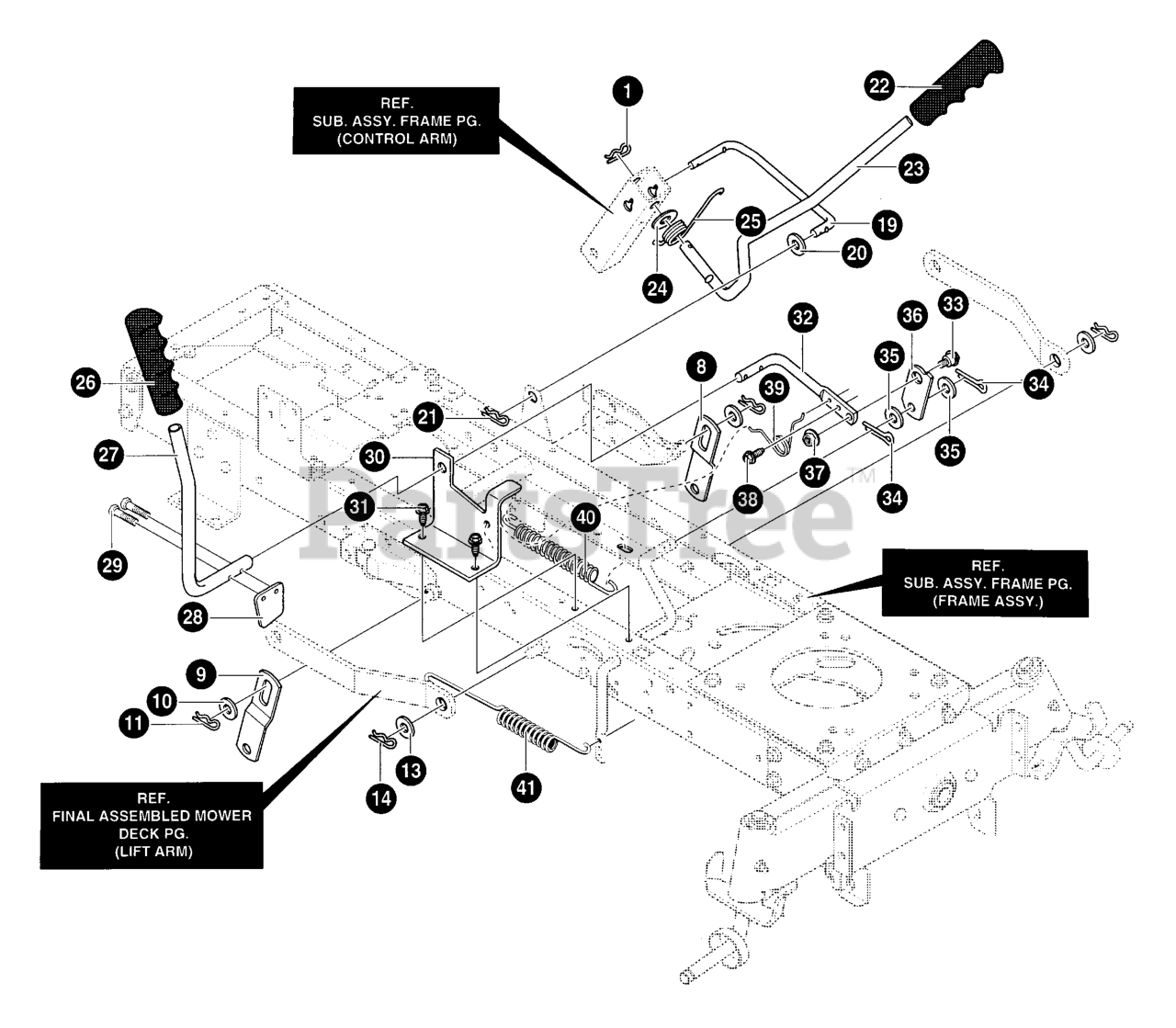

Mower Suspension Assembly Parts Diagram

  • Title

1

Murray 0031X4MA

HAIR PIN
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Murray 94611E717MA

LINK, LIFT LH
(Superseded to 094611E701MA)

$48.99

$

Usually ships in 2-12 days

0

9

Murray 94053E717

LINK- LIFT

$

$

Currently unavailable

10

Murray 017X91 Z

FLATWASHER

$

$

Currently unavailable

11

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

13

Murray 017X91 Z

WASHER, FLAT

$

$

Currently unavailable

14

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

19

Murray 94028

LINK LIFT HANDLE

$

$

Not available

20

Murray 017X91MA

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

21

Murray 0031X4MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

22

Murray 94497MA

GRIP, LIFT
(Superseded to 094497MA)

$6.49

$

Usually ships in 2-12 days

0

23

Murray 94195

HANDLE, LIFT

$

$

Currently unavailable

24

Murray 17X103MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

25

Murray 166X40MA

TORSION SPRING

$6.49

$

Usually ships in 2-12 days

0

26

Murray 94496MA

GRIP, PTO
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

27

Murray 94826

PTO LEVER

$68.99

$

Usually ships in 2-12 days

0

28

Murray 94022

PADDLE, SWITCH

$3.99

$

In Stock, only 3 left!

0

29

Murray 0025X3MA

Screw, Hex

$4.99

$

Usually ships in 2-12 days

0

30

Murray 94018E717

BRACKET, PTO

$

$

Currently unavailable

31

Murray 710708

BOLT, 5/16- 18X.5

$1.99

$

Usually ships in 2-12 days

0

32

Murray 94017

LEVER, PTO

$64.99

$

Usually ships in 0 days

0

33

Murray 009X39MA

BOLT,.50X.75

$6.49

$

In Stock, Qty 6

0

34

Murray 030X20MA

PIN, HAIR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

35

Murray 017X57MA

WASHER, FLAT

$4.49

$

Usually ships in 2-12 days

0

36

Murray 94004

LINK PTO
(Superseded to 691263)

$

$

Not available

37

Murray 015X84MA

NUT, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 26X249MA

SCREW, 5/16-18 x 0.75

$

$

Not available

39

Murray 166X39MA

TORSION SPRING

$5.49

$

Usually ships in 2-12 days

0

40

Murray 165X117MA

SPRING, TENSION

$15.99

$

In Stock, only 1 left!

0

41

Murray 165X119MA

EXTENSION SPRING

$13.99

$

Usually ships in 2-12 days

0
